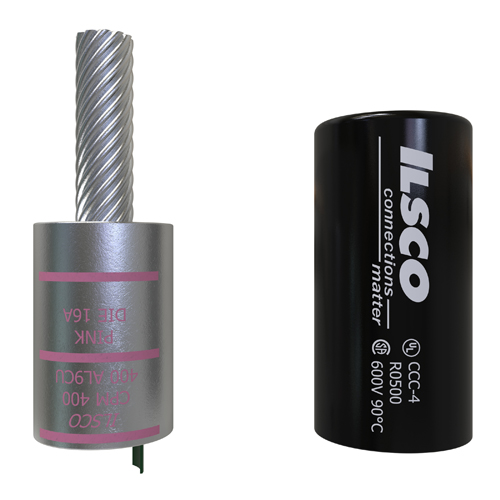

Product image for Ilsco CPM-400 Copper Compression Pigtail Adaptor, Conductor Size 400, Tin Plated, UL, CSA
Email

Ilsco CPM-400 Copper Compression Pigtail Adaptor, Conductor Size 400, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-400 | Cooper Electric Part # 35144
$129.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 400 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Pink, primary color Silver, die index 16A,

Technical Information

Applications
Copper Pigtail Adaptor
Barrel Length
2.087 in
Barrel Type
Standard
Color Coding
Pink
Conductor Material
Aluminum,Copper
Conductor Size
400 MCM
Conductor Type
Stranded
Connection Type
Compression
Material
Copper
Number of Conductors
1
Pin Length
1.875 in
Size
L:4.875;W:1.555;H:1.555 IN
Standard
UL File Number: E62525,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Temperature Rating
90 degrees C
Type
CPM:AL/CU PIN
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669008623
Color
Silver
GTiN
00783669008623
Product UPC
78366900862
Weight
0.286 lb

Dimensions

Height
1.555 Inch
Inside Diameter
0.762 in
Length
4-7/8 Inch
Outside Diameter
1.375 in
Width
1.555 in
