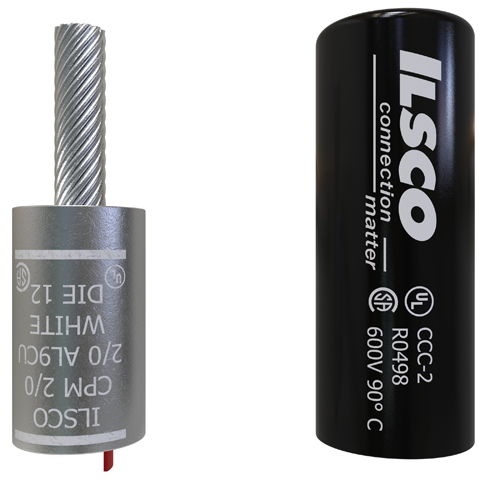

Product image for Ilsco CPM-2/0 Copper Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA
Email

Ilsco CPM-2/0 Copper Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-2/0 | Cooper Electric Part # 35139
$58.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,

Technical Information

Applications
Terminating Connector
Barrel Length
1.594 in
Barrel Type
Standard
Color Coding
White
Conductor Material
Aluminum,Copper
Conductor Size
2/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Pin Length
1.250 in
Size
L:4;W:1.086;H:1.086 IN
Standard
UL File Number: E62525,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008500
Color
Silver,White
GTiN
00783669008500
Product UPC
78366900850
Weight
0.092 lb

Dimensions

Height
1.086 Inch
Inside Diameter
0.44 in
Length
4 Inch
Outside Diameter
0.906 in
Width
1.086 in
