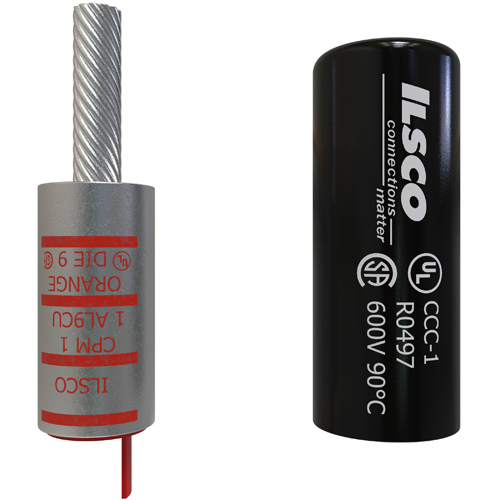

Ilsco CPM-1 Copper Compression Pigtail Adaptor, Conductor Size 1, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-1 | Cooper Electric Part # 35137
$45.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 1 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Orange, primary color Silver, die index 9,

Technical Information

Applications
Terminating Connector
Barrel Length
1.344 in
Barrel Type
Standard
Color Coding
Orange
Conductor Material
Aluminum,Copper
Conductor Size
1 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Pin Length
1.000 in
Size
L:3;W:0.82;H:0.82 IN
Standard
UL File Number: E62525,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008463
Color
Silver
GTiN
00783669008463
Product UPC
78366900846
Weight
0.039 lb

Dimensions

Height
0.82 Inch
Inside Diameter
0.36 in
Length
3 Inch
Outside Diameter
0.65 in
Width
0.82 in
