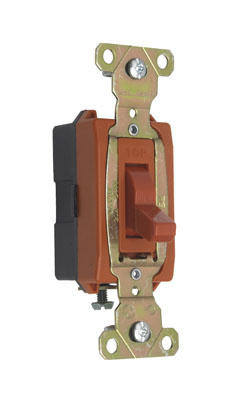

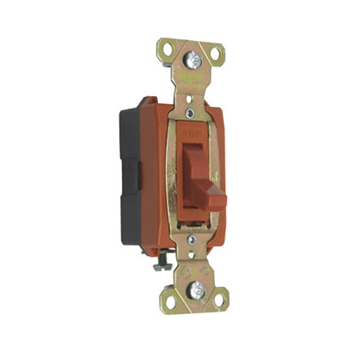

Product image for Pass & Seymour PS372010-RED Canadian 1pole Switch, Back & Side Wire, 20A 347V - Red
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PS372010-RED Canadian 1pole Switch, Back & Side Wire, 20A 347V - Red

Manufacturer: Pass & Seymour / Legrand | Catalog # PS372010RED | Cooper Electric Part # 350176
$32.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Canadian 1pole Switch, Back & Side Wire, 20amp 347volt, Gray

Technical Information

Action
DPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Residential/Commercial
Contact Rating
20 A
Duty Rating
Extra Heavy Duty
Grade
Specification
Number of Poles
1 Pole
Size
4.6x2.5x2.4
Type
Toggle
Voltage
347 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007196245
Color
Red
GTiN
00785007196245
Product UPC
78500719624
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.531 Inch
Width
1.320 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast \"make\" and positive \"break\" to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
