Square D LA7K0064 45 x 75 x 80 mm Screw Clamp Terminal Block

Manufacturer: Square-D / Schneider | Catalog # LA7K0064 | Cooper Electric Part # 350097
$14.13/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
22 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

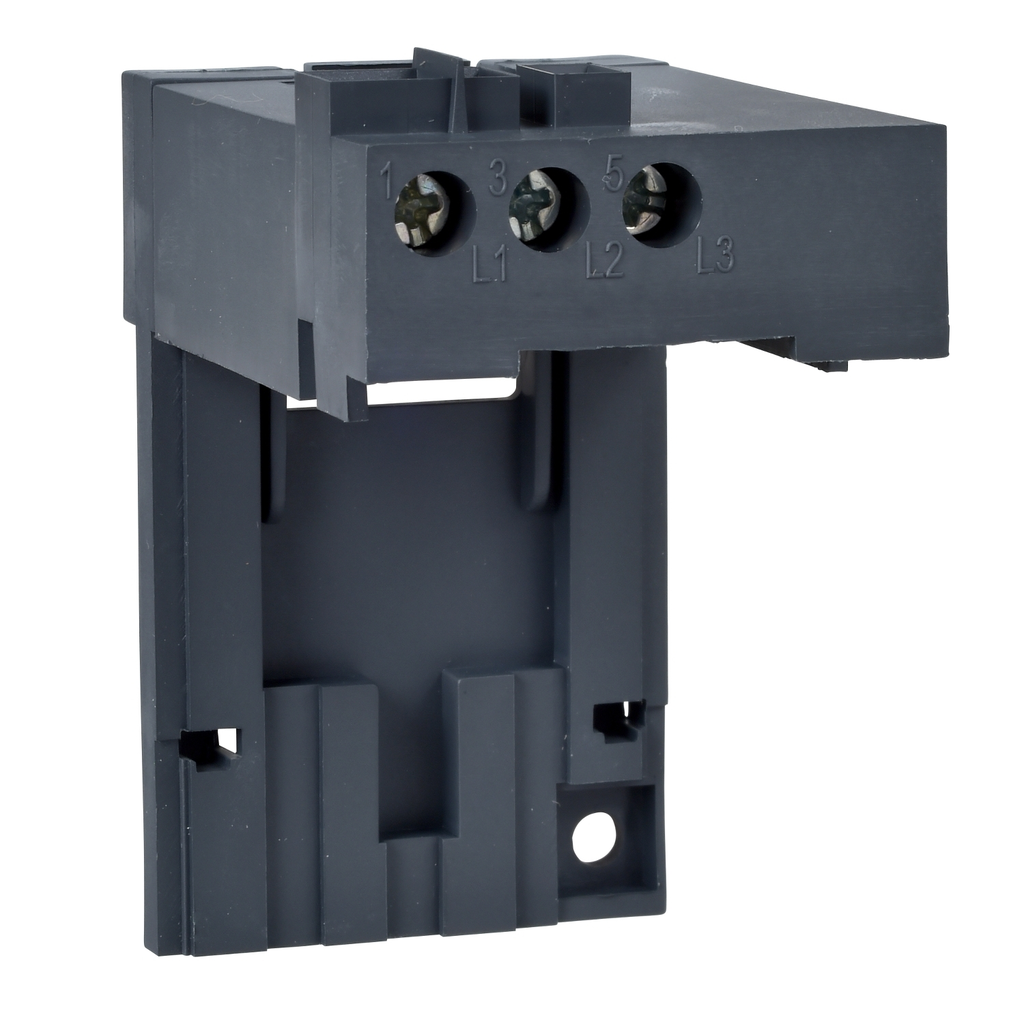

TeSys LRK terminal block, for thermal overload relays LR2K, LR7K. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail. It conforms to RoHS/REACh regulation.

Technical Information

Applications
Connection accessory;LR2K;LR7K
Contact Configuration
3NO POWER POLES, 1N/O AND 1 N/C AUXILIARY
Net Weight
0.1 kg
Number of Poles
3 MAIN, 2 AUILIARY
Operating Temperature
-5C TO 55C
Size
2.95 in
Type
Terminal block

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LA7K

General Product Info

12-Digit UPC
389110447883
GTiN
03389110447880
Product UPC
78590191359
Weight
0.1 kg

Dimensions

Depth
75 mm
Height
80 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LR2K0308
  • LR2K0312
  • LR2K0307
  • LR2K0310
  • LR2K0314
  • LR2K0321
  • LR2K0303
  • LR2K0304
  • LR2K0322
  • LR2K0302
  • LR7K0310
  • LR2K0301
Cross Sell Products
  • LC1K0610M7
