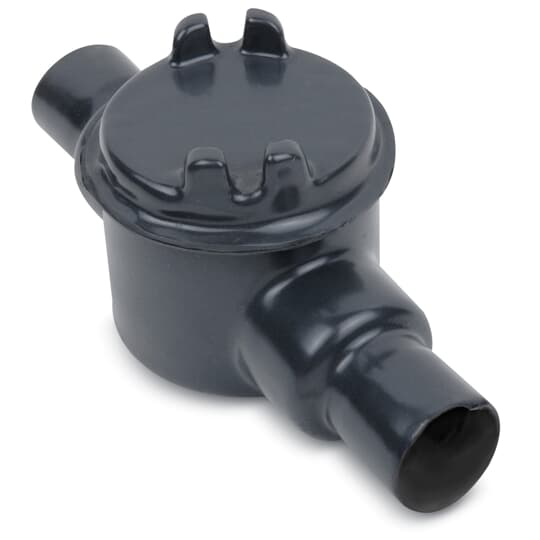

Product image for ABB GUAC47-G CONDBOX CSHAPE 1-1/4IN
Email

ABB GUAC47-G CONDBOX CSHAPE 1-1/4IN

Manufacturer: Ocal / Thomas & Betts | Catalog # GUAC47-G | Cooper Electric Part # 346601
$609.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAC Type - I Shape, Pipe Size 1-1/4 Inch/35 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 3.63 Inch/92.20 Millimeters, Gray

Technical Information

Applications
For use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/Upgrades
Conduit Body Type
GUAC
Material
Zinc
Size
1 1/4 in
TC Connection
Threaded
Trade Size
1-1/4 Inch
Type
GUAC Type, 2-Inlet

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508384593
Color
Gray
Finish
PVC Coated
GTiN
00704508384593
Product UPC
70450838459
Certifications
  • UL
  • CSA
Features
  • Grade 60-45-10 ductile iron bodies and cast aluminum covers
  • Nominal .002 in. (2 mil) blue urethane coating on both interior and exterior and nominal .040 in. (40 mil) PVC coating bonded to exterior
  • All units furnished with internal grounding screw and ship complete with aluminum cover with O-ring gasket
  • All hubs have a minimum of five full threads, integral bushing and pressure-sealing sleeves
  • Explosion-proof, dust-ignition-proof, raintight and suitable for use in the following environments. Class I, Division 1 & 2, Groups C & D - Class II, Division 1, Groups E, F, G - Class III, Division 1 & 2 - NEMA 3, 4, 7 CD, 9 EFG.
Application
  • GUA series conduit boxes are installed in hazardous locations to protect conductors and act as pull and splice box.
  • Join two or more pieces of conduit long runs
  • Provide access to conductors for maintenance and future system changes
  • Mounting outlets for fixtures, with proper covers
  • To change direction in rigid conduit systems
Notes
  • Metric size designator (ANSI C80. 1-1994)
  • Ratings are prior to PVC coating
  • Dimensions are of uncoated fittings
