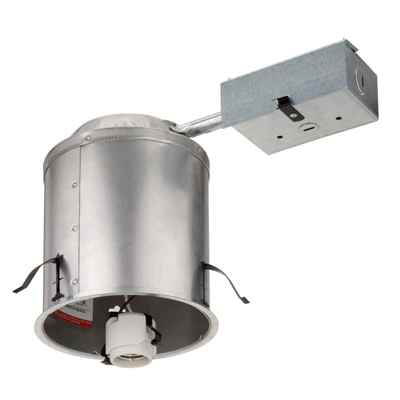

Lithonia Lighting L3R-M6 4 Inch Aluminum Incandescent Remodel Housing

Manufacturer: Lithonia Lighting | Catalog # L3R R6 | Cooper Electric Part # 346066
$51.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

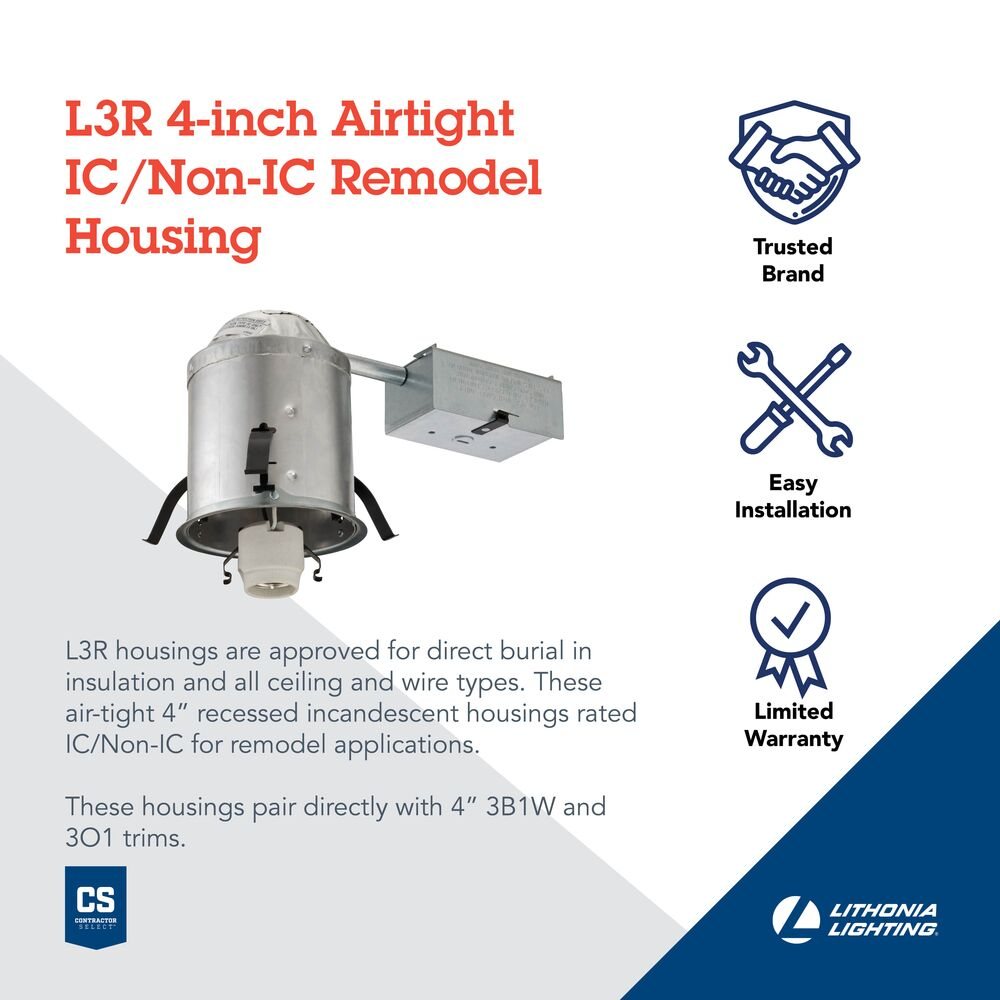

Lithonia Lighting’s 4" Incandescent Remodel Housing is intended for use with recessed incandescent housings for 2x8 and 2x6 remodel applications. The housing is approved for direct burial in insulation and all ceiling and wiring types. Construction is air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX clamps and ground wire.

Technical Information

Aperture Size
4 in
Applications
Hospitality,Residential,Retail
Lamp Type
Incandescent
Material
Steel
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Type
Downlight
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
745973345566
Color
Nickel
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
GTiN
00745973345566
Product UPC
74597334556
Shape
Round
Weight
1.5 lb

Dimensions

Height
6 Inch
Length
10 Inch
Warranty Length
1 yr
Width
5 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • The L3R 4\" Incandescent Line-Voltage Housing is approved for direct burial in insulation and all ceiling and wiring types
  • L3R has a vertical adjustment of housing allows for flush mounting with ceiling face
  • Galvanized steel junction box with three built-in ROMEX clamps and ground wire.
  • Damp Location
  • Standard 120 volts used in most residential applications
  • Does not include light source

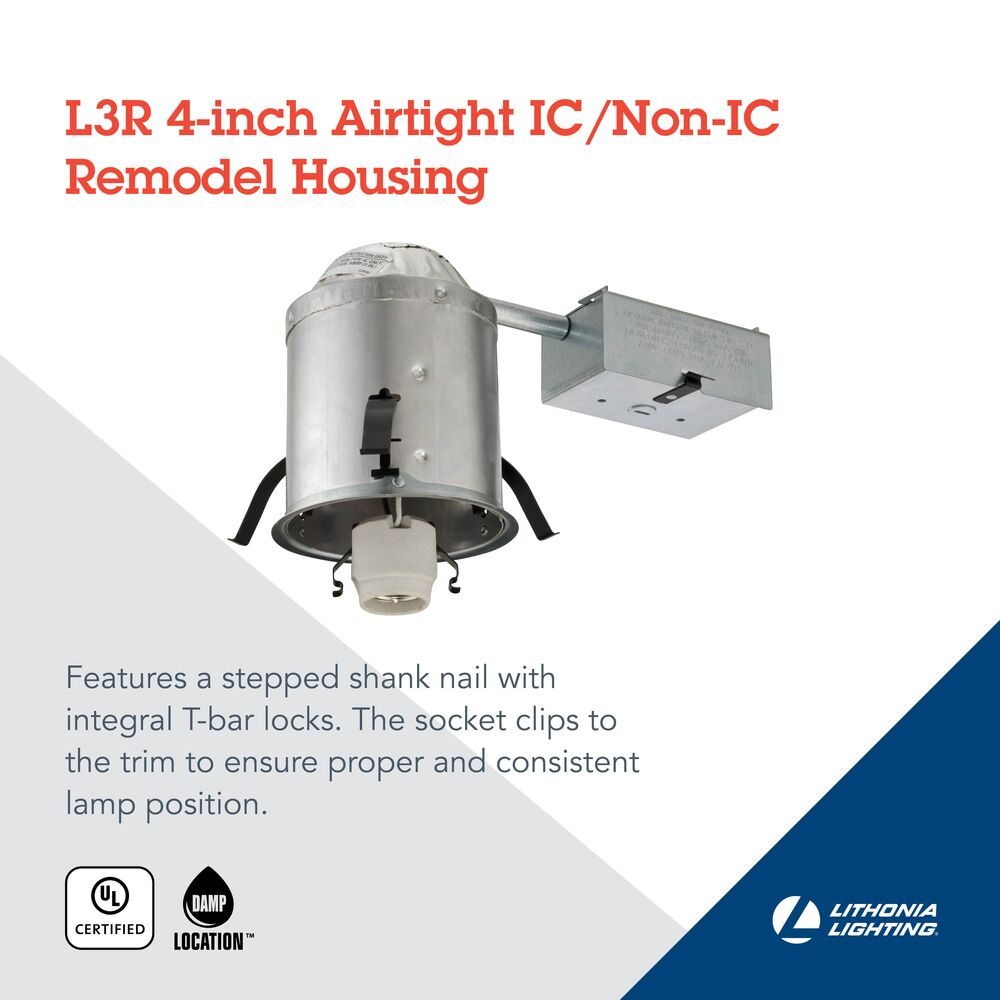

  • The socket clips to top of housing to prevent paint overspray in socket screw shell and the socket attaches to reflector to ensure proper and consistent lamp position
  • Emergency battery back-up not included in this version
  • 1-year limited warranty

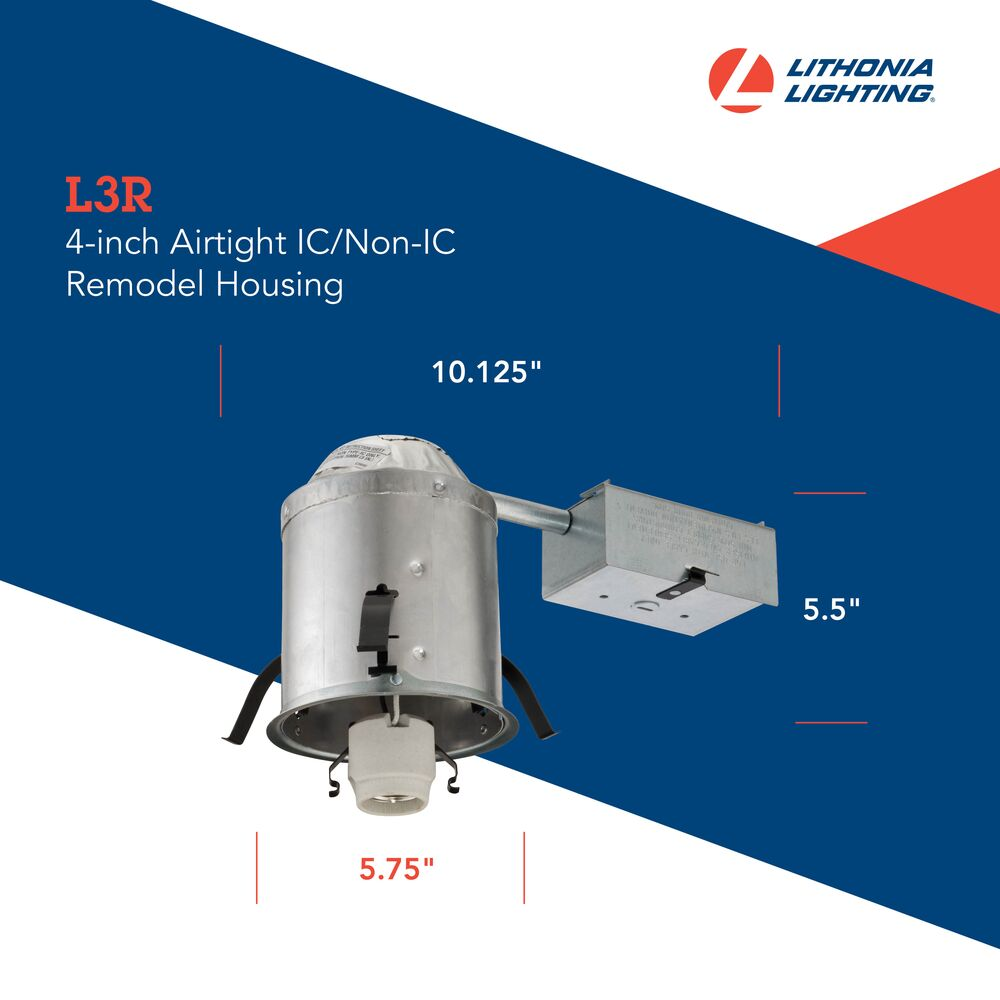

  • Dimensions: Height 5-1/4-in x Length 13-1/4-in x Width 12-3/16-in x Ceiling opening 4-1/4-in.
Applications
  • Hospitality
  • Residential
  • Retail
Standards
  • cUL
  • UL
