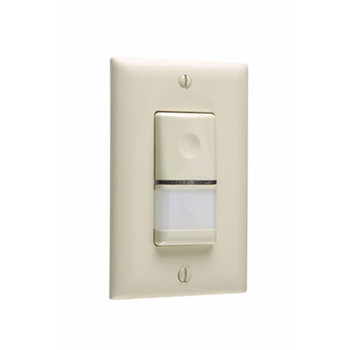

Pass & Seymour OS300-SI Occupancy/Vacancy Wall Sensor - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # OS300-SI | Cooper Electric Part # 345767
$72.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
PIR Occupancy Sensor Switch, Ivory

Technical Information

Mounting Type
Wall
Number of Poles
1 Pole
Type
Occupancy Vacancy
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007703863
Color
Ivory
GTiN
00785007703863
Product UPC
78500770386
UNSPSC
39121559

Dimensions

Depth
1.83 Inch
Diameter
4.8 Inch
Height
2.73 Inch
Width
1.76 in

Certifications and Compliance

Country of Origin
Taiwan
Features
  • Detection signature processing eliminates false triggers and provides immunity to RFI and EMI.
  • Zero-crossing for long relay life.
  • Vandal-resistant lens combines precise coverage with durability.
  • Choice of Auto-ON or Manual-ON operation, selectable for each relay.
  • Auto adjustable time delays: automatic, fixed (5, 10, 15, 20, 25 or 30 minutes), walk-through, test-mode.
  • Selectable time delay automatically adjusts for maximum savings.
  • Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds.
  • Selectable test mode allows quick and easy adjustments.
  • Selectable audible alert for impending shutoff.
  • In AUTO-ON mode, if the sensor is manually turned OFF, AUTO-ON will not enable until no motion is detected for 5 minutes. This prevents the light from turning ON when it was intended they remain OFF. Ideal for presentations.
  • LED indicates occupancy detection.
  • Built-in light level sensing with simple, one-step setup.
  • Override mode allows sensor to operate as a service switch in the unlikely event of a failure.
  • NEMA WD 7 guideline utilized for coverage testing.
  • Sensitivity adjustment: PIR (high/low).
  • Coverage: 180 degrees, up to 1050 sq. ft.; major motion 35' x 30'; minor motion 20' x 15'.
  • cULus listed.
  • 5-year warranty.
  • Load: Incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
  • LEED Contribution: Yes
