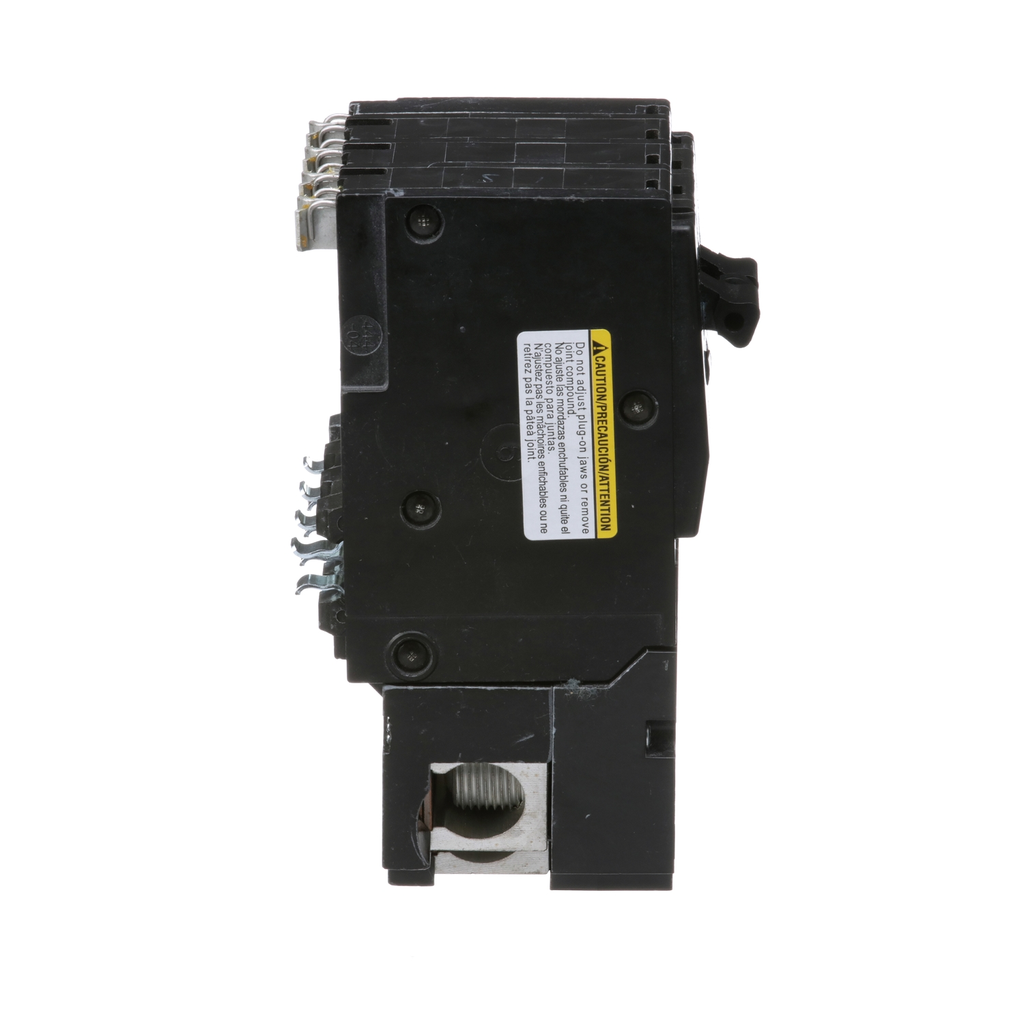

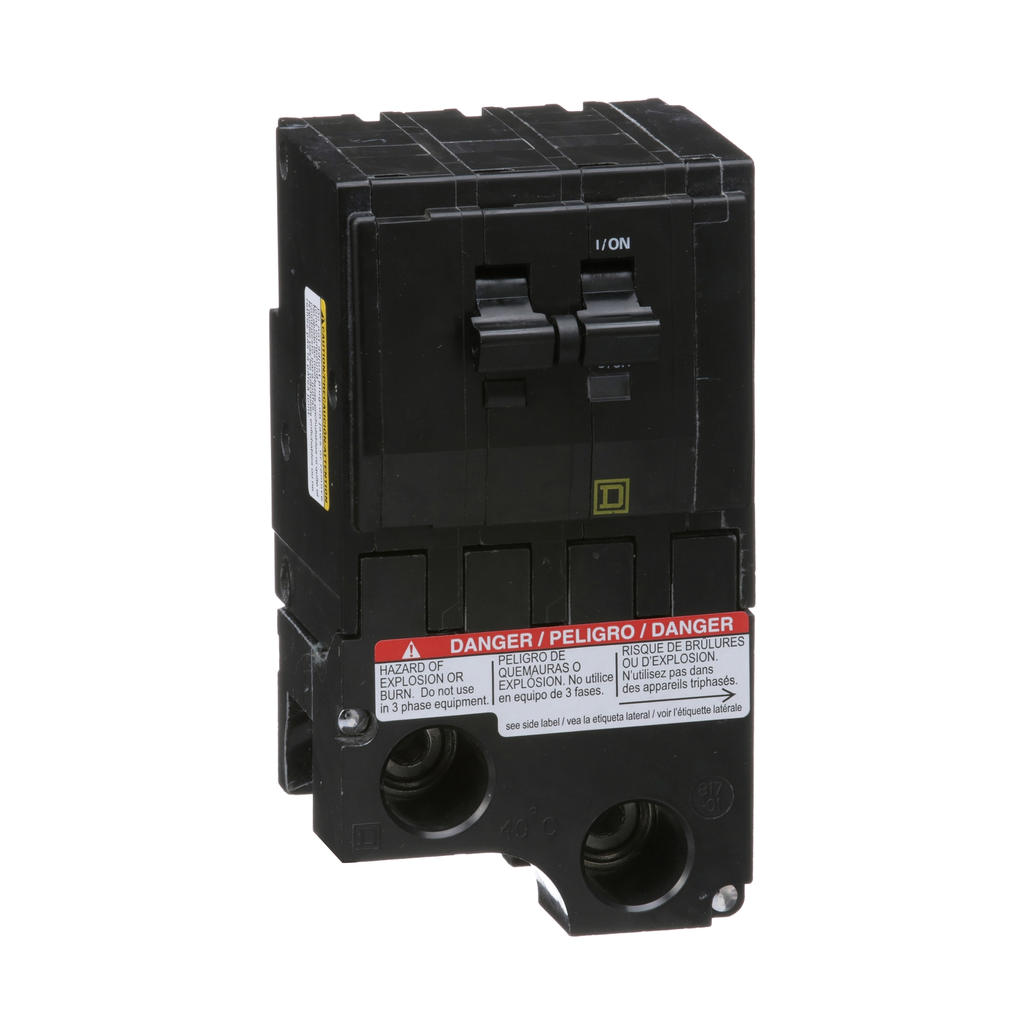

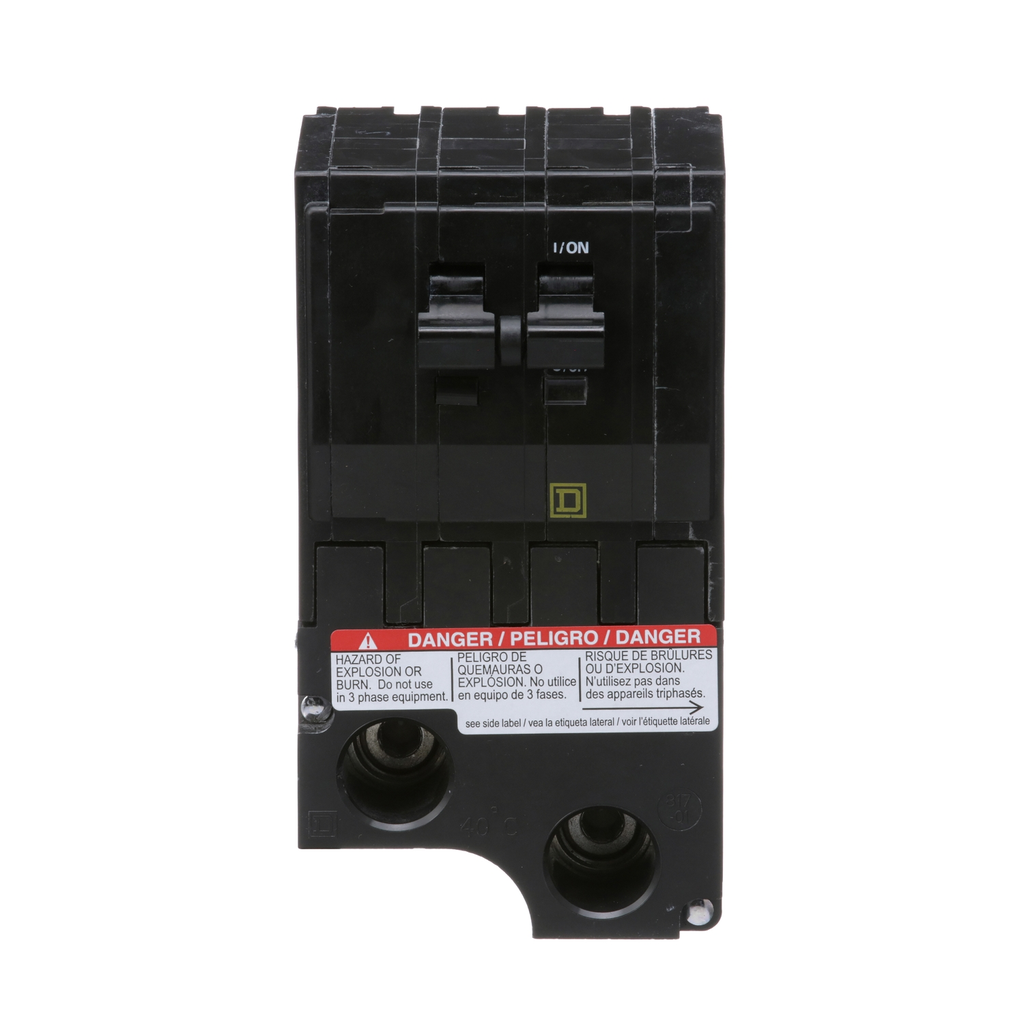

Square D QO2175VH 2-Pole 175 Amp 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QO2175VH | Cooper Electric Part # 344623
$1,575.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 175A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Technical Information

Amperage
175 Amp
Applications
NOT RATED
Circuit Breaker Type
Standard
Conductor Size
1 AWG-300 kcmil
Current
175 Amp
Interrupt Rating
22 kAIC
Line Rated Current
175 A
Material
Fiberglass
Mounting Type
Plug-in
Net Weight
1.134 kg
Number of Poles
2 Pole
Operating Temperature
CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION.
Range
QO NULL
Short Circuit Current
22 kA
TC Connection
BOX LUGS #1 TO 300 AWG/KCMIL(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 1...300 kcmil copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901501299
GTiN
00785901501299
Product UPC
78590150129
Weight
1.134 kg

Dimensions

Depth
74 mm
Height
89 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
38 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
