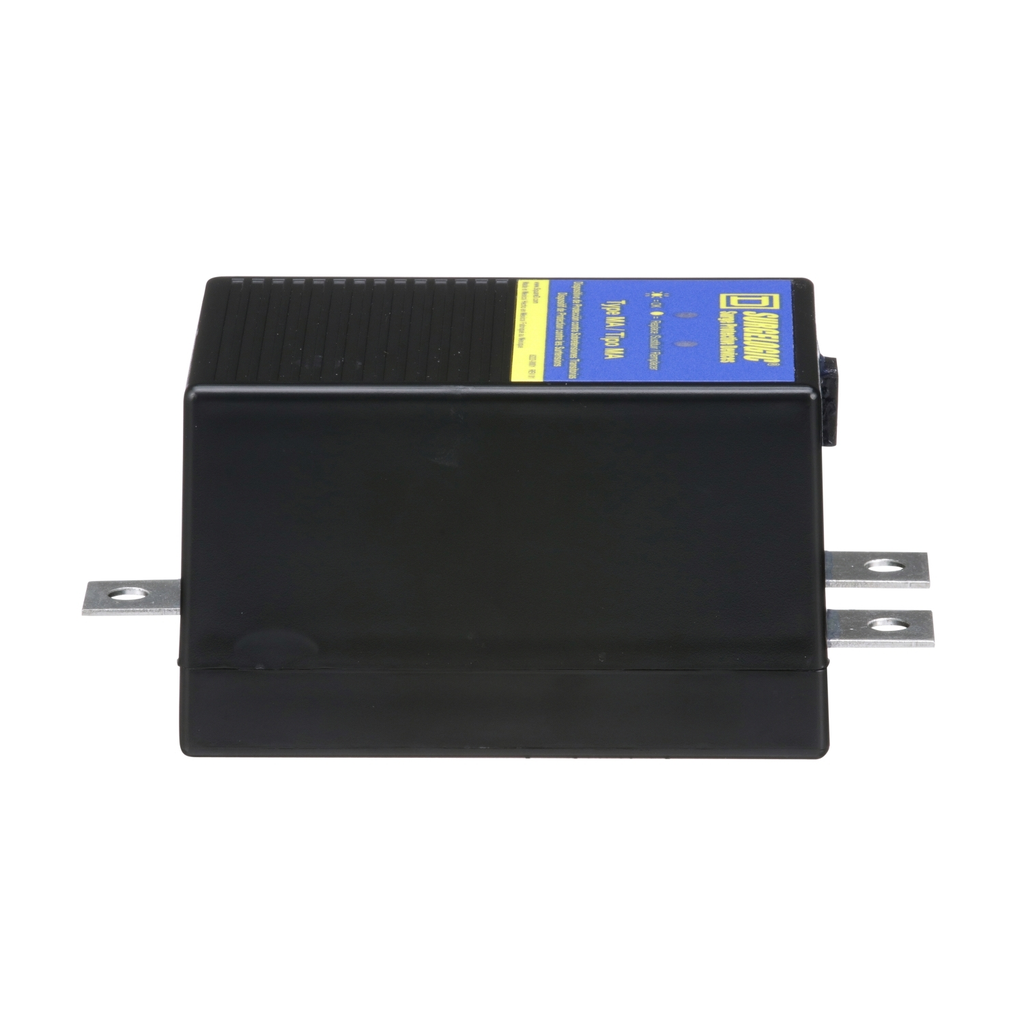

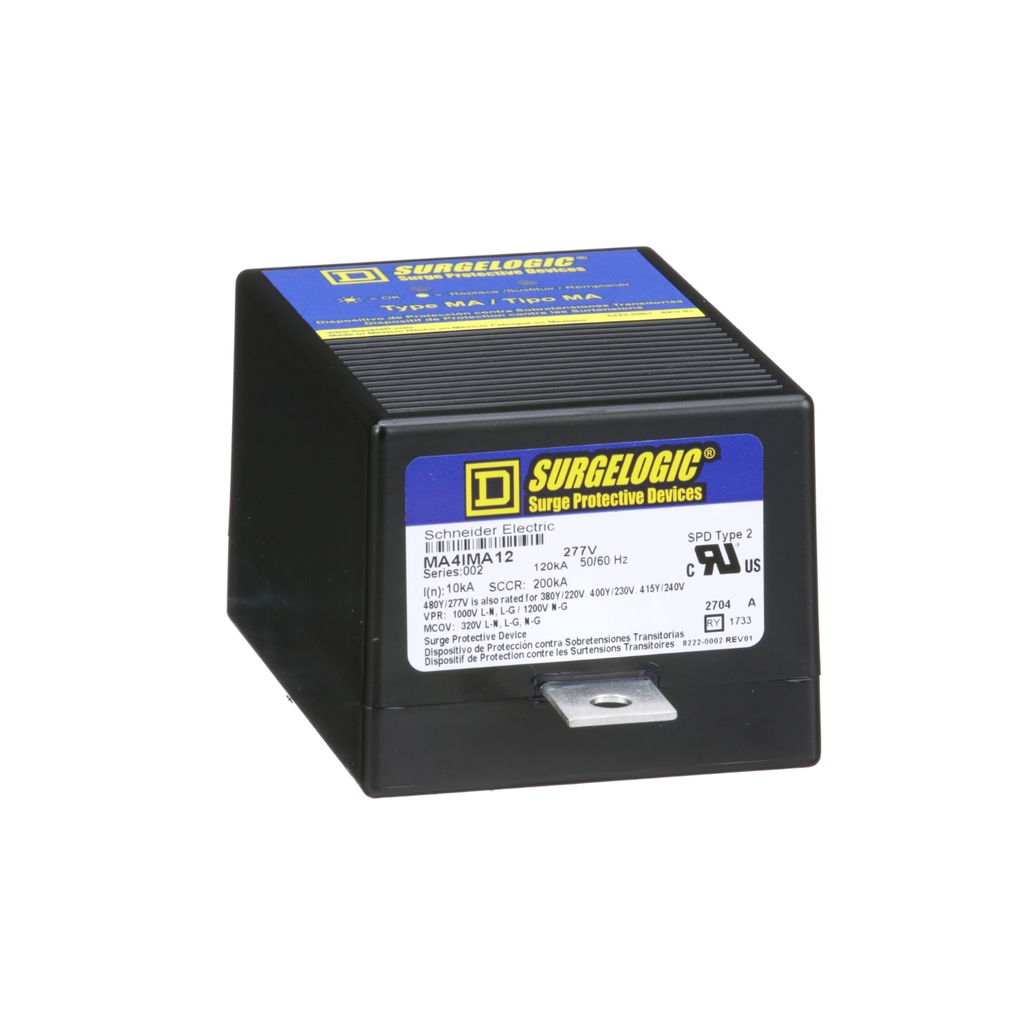

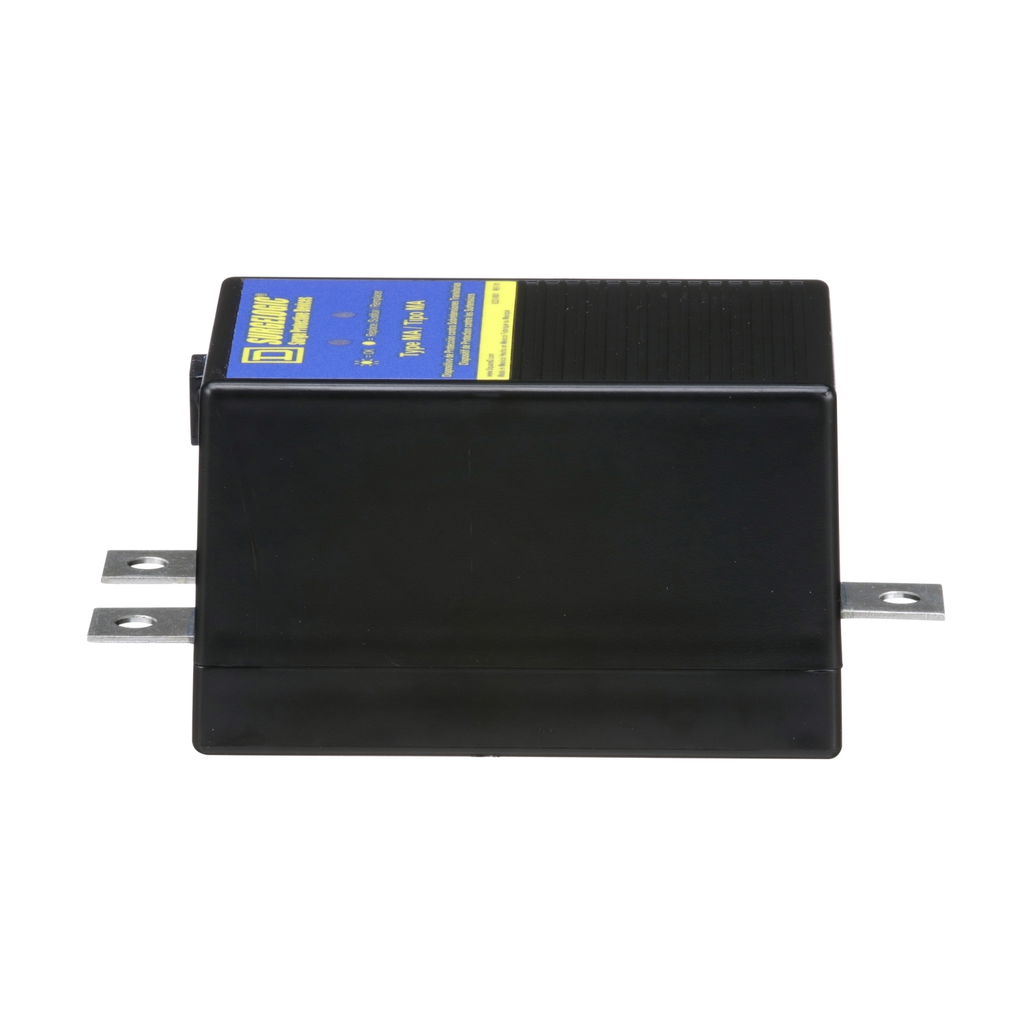

Square D MA4IMA12 480 Volt Star/277 Volt 120 kA 3-Phase Wye 4-Wire Surge Protective Device Module

Manufacturer: Square-D / Schneider | Catalog # MA4IMA12 | Cooper Electric Part # 344109
$600.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Surgelogic™ EMA and EBA series SPDs, MA4IMA12, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate.

Technical Information

Applications
REPLACEMENT
Enclosure
2
Enclosure Material
Plastic
NEMA Size
2
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Operating Temperature
65-65 degrees C
Size
2.69 in
Standard
ANSI/IEEE C62.41,ANSI/IEEE C62.45,CSA C22.2 No 8:1986,NEC 285,UL 1283:ed. 5,UL 1449:ed. 4
TC Connection
Terminals
Type
Replacement part;Surge protection module;4-wire
Voltage
277 Volt

Manufacturer Information

Brand
Square D
Sub Brand
IMA

General Product Info

12-Digit UPC
785901292975
GTiN
00785901292975
Product UPC
78590129297

Dimensions

Depth
68.3 mm
Height
158.8 mm
Warranty Length
18 mth
Width
82.8 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
