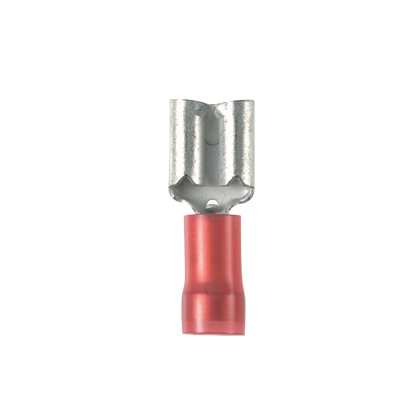

Product image for Panduit DNF18-205-C Loose Piece Disconnect
Email

Panduit DNF18-205-C Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DNF18-205-C | Cooper Electric Part # 342755
$368.10/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Insulation Grip Sleeve
Color Coding
Red
Conductor Size
22-18 AWG
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
194 degrees F
Standard
CSA,E2186,UL
Tab Size
1/4 x 0.032 in
TC Connection
Funnel
Temperature Rating
194 degrees F
Type
Loose-Piece
Voltage
300 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983826407
Color
Red
Finish
Tin Plated
GTiN
00074983826407
Product Type
Terminals
Product UPC
07498382640
UNSPSC
39121409

Dimensions

Height
0.12 Inch
Length
0.76 Inch
Overall Length
0.76 in
Width
0.25 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
