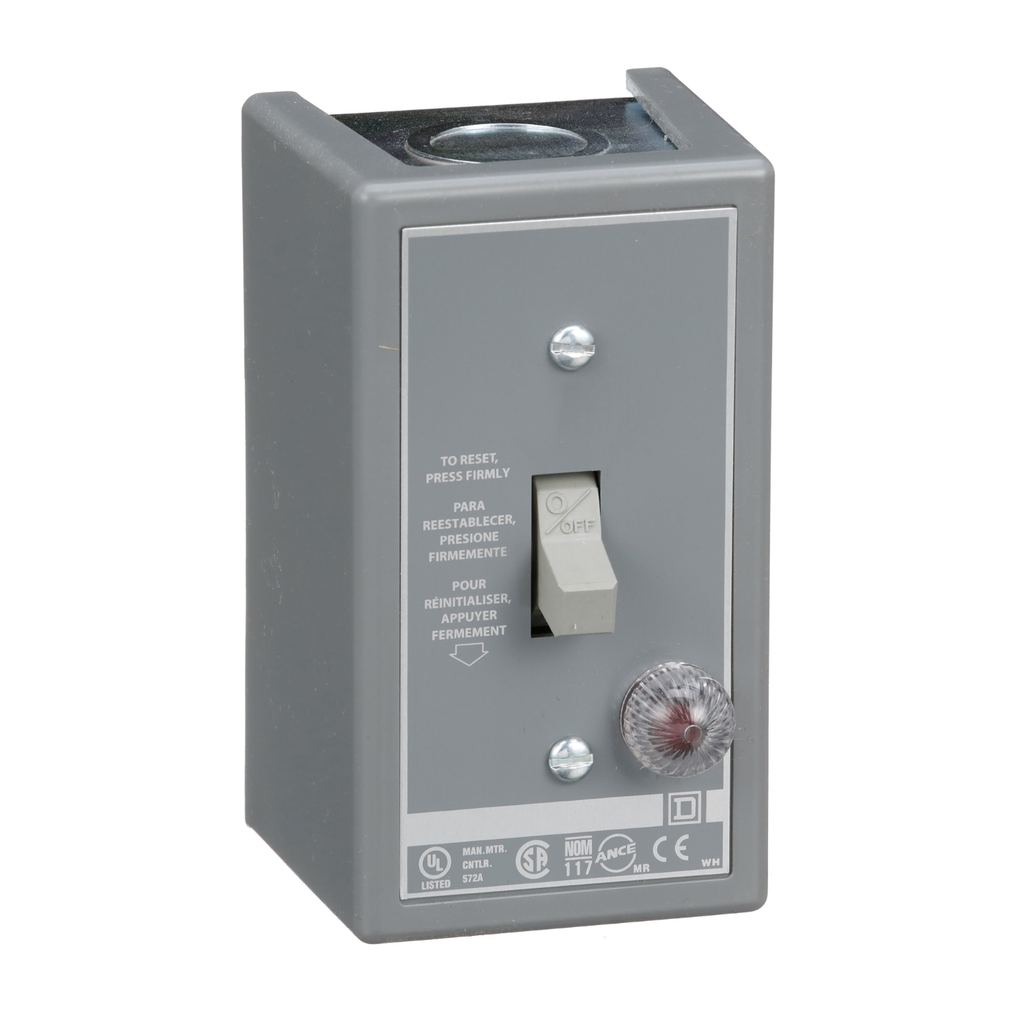

Square D 2510FG5P 277 VAC 16 Amp 1 Hp 1-Pole NEMA 1 Surface Mount Non-Reversing Manual Starter

Manufacturer: Square-D / Schneider | Catalog # 2510FG5P | Cooper Electric Part # 342337
$150.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Square D Type F Manual starters provide overload protection and manual On-Off control for small single phase AC motors. Enclosure is sheet steel with wrap around thermoplastic cover for convenience of wiring. Overload heater element is ordered separately to match motor data. Units are UL Listed, CSA Certified and CE Marked for global applications. Fractional Motor Starters. Designed for fractional single phase motors up to 1 HP. Provides easy manual .On-Off. control of small motors. Provide melting alloy overload protection for motors. Intended for industrial and commercial applications. Enclosed or open versions to suit most application environments. Can be easily installed. UL, CSA and CE approvals. Manual starter is UL listed and CSA certified.

Technical Information

Amperage
16A
Applications
PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS.
Cable Entry
0.5 in
Current
16 Amp
Enclosure
1
Line Rated Current
16 A
Number of Phases
1 Phase
Number of Poles
1 Pole
Reset Type
THERMAL - MELTING ALLOY
Size
2.88 in
TC Connection
Screw clamp terminals
Type
Single Unit Manual Starter
Voltage
277 Volt

Manufacturer Information

Brand
Square D
Sub Brand
F

General Product Info

12-Digit UPC
785901554028
Environmental Conditions
SINGLE UNIT METAL BOX - GENERAL PURPOSE
GTiN
00785901554028
Product UPC
78590155402

Dimensions

Depth
2.88 Inch
Height
4-1/4 Inch
Warranty Length
18 mth
Width
2.44 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR25490 Class 3211 05,UL Listed File E42243 CCN NLRV
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • A.49
  • A.71
  • A.78
  • A.86
  • A.95
  • A1.02
  • A1.16
  • A1.25
  • A1.39
  • A1.54
  • A1.63
  • A1.75
  • A1.86
  • A1.99
  • A2.15
  • A2.31
  • A2.57
  • A2.81
  • A3.61
  • A3.95
  • A4.32
  • A4.79
  • A5.30
  • A5.78
  • A6.20
  • A6.99
  • A7.65
  • A8.38
  • A9.25
  • A9.85
  • A11.0
  • A11.9
  • A13.2
  • A14.1
  • A14.8
  • A16.2
  • A17.9
  • A19.8
  • A21.3
  • A25.2
  • A.59
