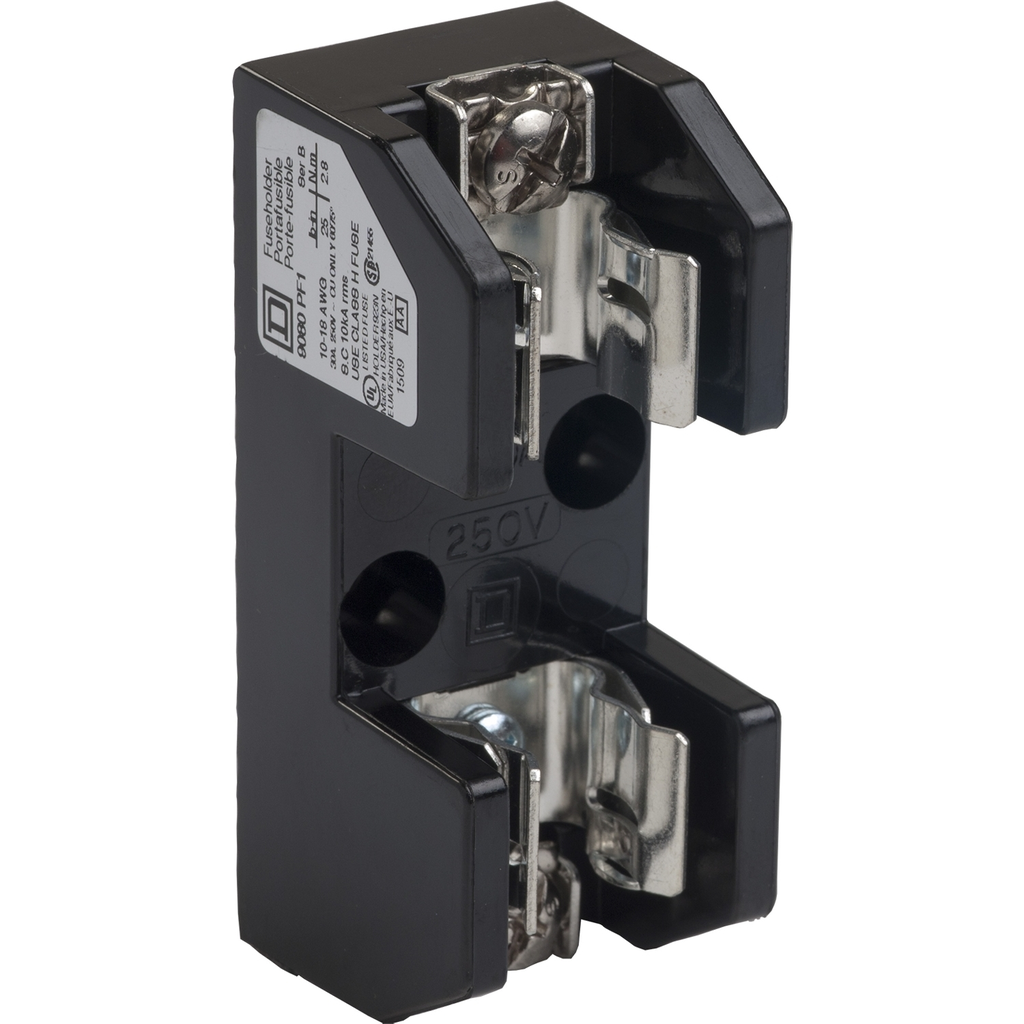

Product image for Square D 9080PF1 30 Amp 250 Volt Fuse Block
Image thumbnail 0
Image thumbnail 1
Email

Square D 9080PF1 30 Amp 250 Volt Fuse Block

Manufacturer: Square-D / Schneider | Catalog # 9080PF1 | Cooper Electric Part # 339344
$68.62/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 amperes. This one pole fuse holder will accept class H and class k fuses. The rating of the fuse can be up to 30 amperes with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 ampere. This fuse holder is UL listed and CSA certified.

Technical Information

Amperage
30 Amp
Applications
9080FB
Conductor Size
18-10 AWG
Current
30 Amp
Fuse Type
H And K
Line Rated Current
30 A
Material
Thermoplastic: Block
Mounting Type
Surface Mount
Number of Poles
1 Pole
Operating Temperature
-40257 degrees F (-40125 degrees C)
Size
1.38 in
Strip Length
0.437 in
TC Connection
Pressure wire clamp
Type
Fuse holder
Voltage
250 Volt
Wire Size
AWG 18...AWG 10 COPPER OR ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901567004
GTiN
00785901567004
Product UPC
78590156700

Dimensions

Depth
1.38 Inch
Height
3 Inch
Length
0.437 Inch
Warranty Length
18 mth
Width
1.12 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70360 Class 6225 01,UL Listed File E40747 CCN IZLT
Country of Origin
USA
