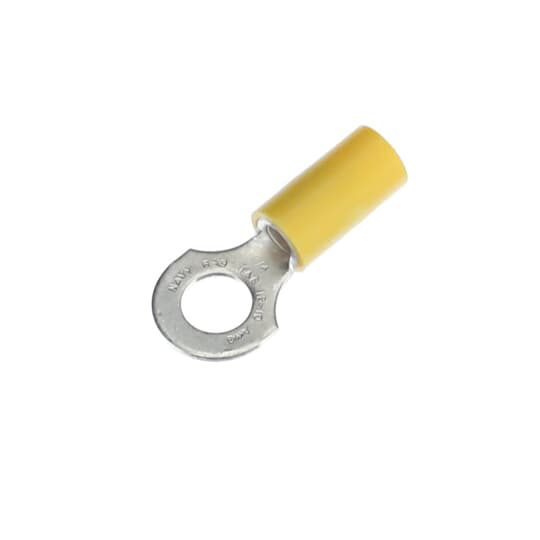

Product image for Thomas & Betts RC717 Vinyl-Insulated Ring Terminal - #12-10, 1/4"bolt (500/Pkg)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Thomas & Betts RC717 Vinyl-Insulated Ring Terminal - #12-10, 1/4"bolt (500/Pkg)

Manufacturer: ABB | Thomas & Betts | Catalog # RC717 | Cooper Electric Part # 339323
$127.53/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Vinyl Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Long Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210820101
Color
Yellow
Finish
Tin Plated
GTiN
05414363159452
Product UPC
78621082010
Used With
Round Conductors
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
