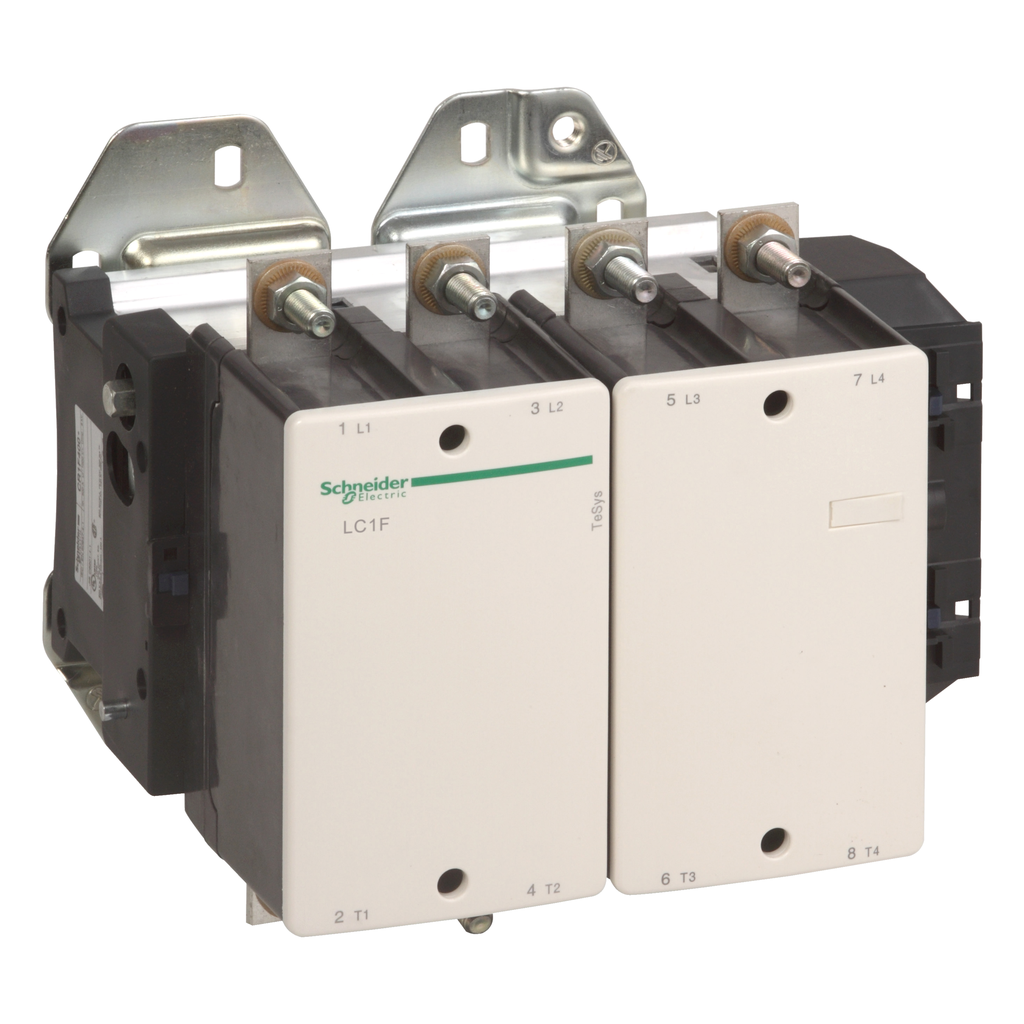

Product image for SQUARED LC1F5004 Contactor body, Te
Email

SQUARED LC1F5004 Contactor body, Te

Manufacturer: Square-D / Schneider | Catalog # LC1F5004 | Cooper Electric Part # 338923
$3,463.32/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys F contactor, 4 poles (4NO), 700A/1000V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
RESISTIVE LOAD
Coil Voltage
<= 1000 V AC 50/60 HZ- <= 460 V DC
Contact Configuration
4 NO
Contact Rating
700 A 40 AC
Impedance
0.18 MOhm - Ith 700 A 50 Hz
Net Weight
9.75 kg
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Size
232 MM,238 MM,288 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
Storage Temperature
-60-80 degrees C
TC Connection
POWER CIRCUIT LUGS-RING TERMINALS 2 240-240 MMA-POWER CIRCUIT BAR 2 40 X 5 MM-POWER CIRCUIT BOLTED CONNECTION
Type
CONTACTOR
Voltage
1000 Volt
Wattage
88 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS F

General Product Info

12-Digit UPC
389110122179
GTiN
03389110122176
Weight
21.50 lb

Dimensions

Depth
232 mm
Height
238 mm
Warranty Length
18 mth
Width
288 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CB,CSA,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UKCA,UL
Country of Origin
Czech Republic
