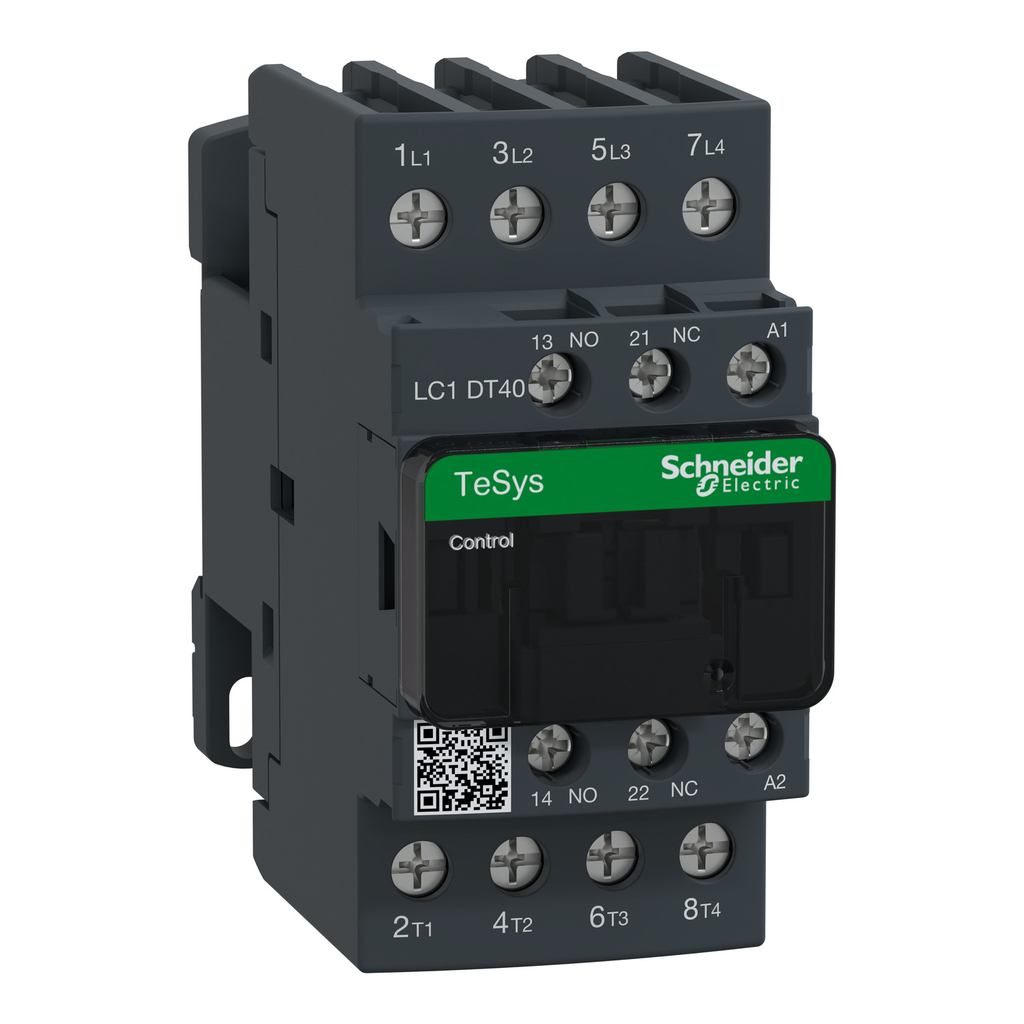

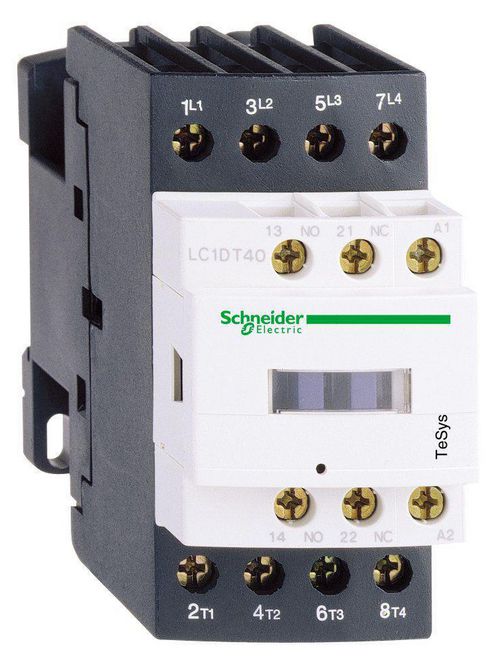

Product image for Square D LC1DT40G7 600 VAC 40 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Email

Square D LC1DT40G7 600 VAC 40 Amp 4-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1DT40G7 | Cooper Electric Part # 337740
$324.07/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 8:00am ET
6 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Technical Information

Applications
Resistive load
Coil Voltage
120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
1 NO + 1 NC,4 NO
Contact Rating
10 A 60 AC SIGNALLING CIRCUIT-40 A 60 AC POWER CIRCUIT
Impedance
2 MOhm - Ith 40 A 50 Hz For Power Circuit
Net Weight
0.425 kg
Operating Cycles
3600 cyc/h 140 F (60 C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Size
45 MM,91 MM,99 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60335-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-16 MMASOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-16 MMASOLID WITHOUT CABLE END
Type
Contactor
Voltage
300 Volt
Wattage
3.2 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LC1D;TeSys D;TeSys Deca

General Product Info

12-Digit UPC
389110339560
GTiN
03389110339567
Product UPC
78590150318
Weight
0.425 kg

Dimensions

Depth
99 mm
Height
91 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LADN22
  • LAD4RCU
  • LADN11
  • LADN20
  • LAD8N11
  • LADT2
  • LADN40
  • LADN31
  • LADN02
  • LADT0
  • LAD4VG
  • LAD8N20
  • LAD4RCG
  • LADS2
  • LADR2
  • LADR0
  • LADN04
  • LADN13
  • LAD4VU
  • LAD9ET1S
  • LADR4
  • LADT4
  • LAD8N02
Cross Sell Products
  • LAD90
  • LADT9R1V
Spare Part Products
  • LX1D6G7
