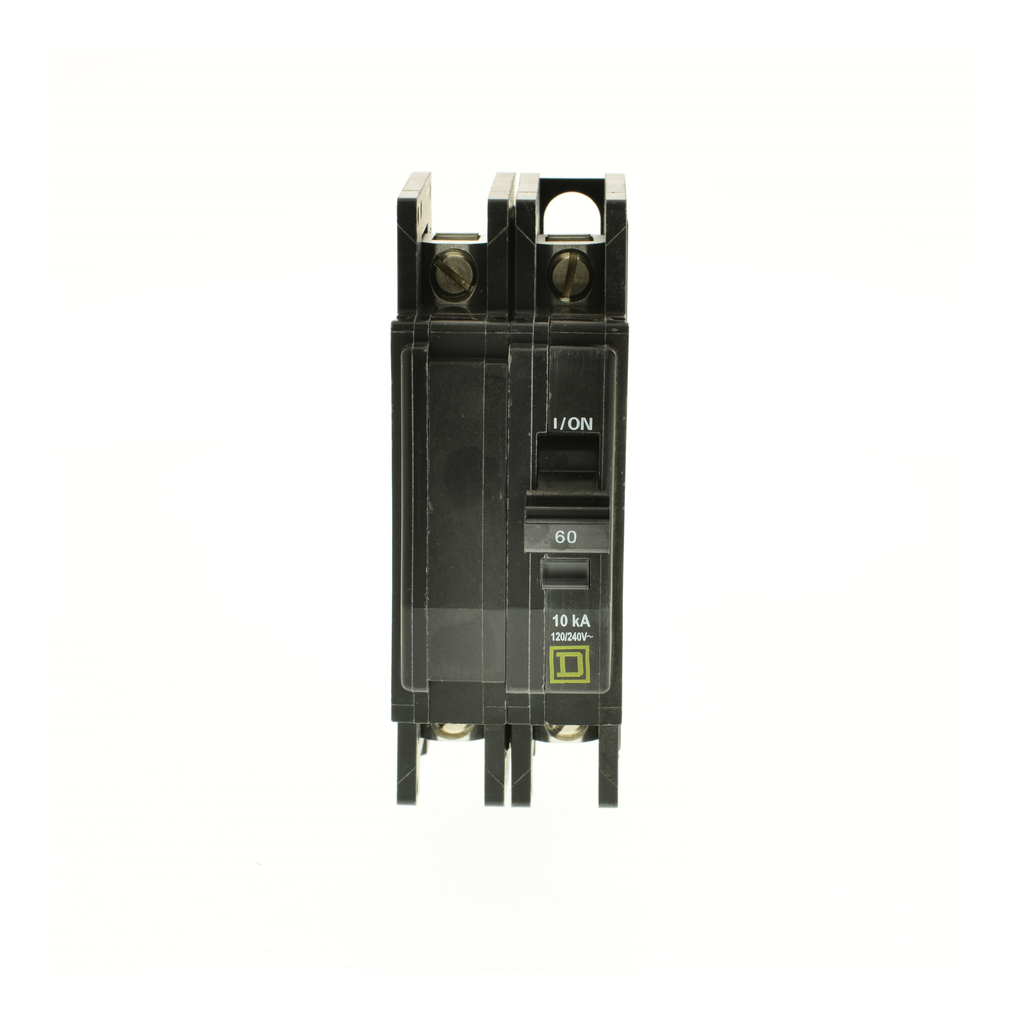

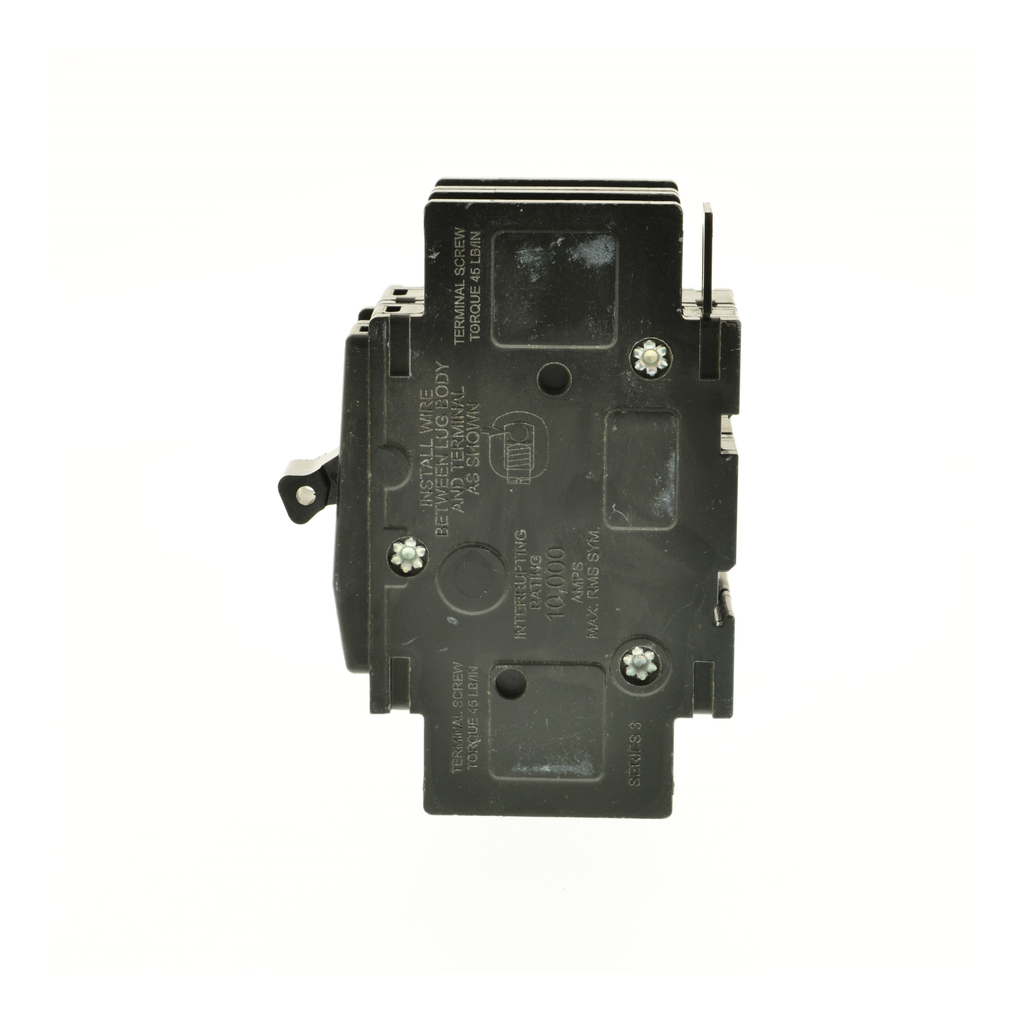

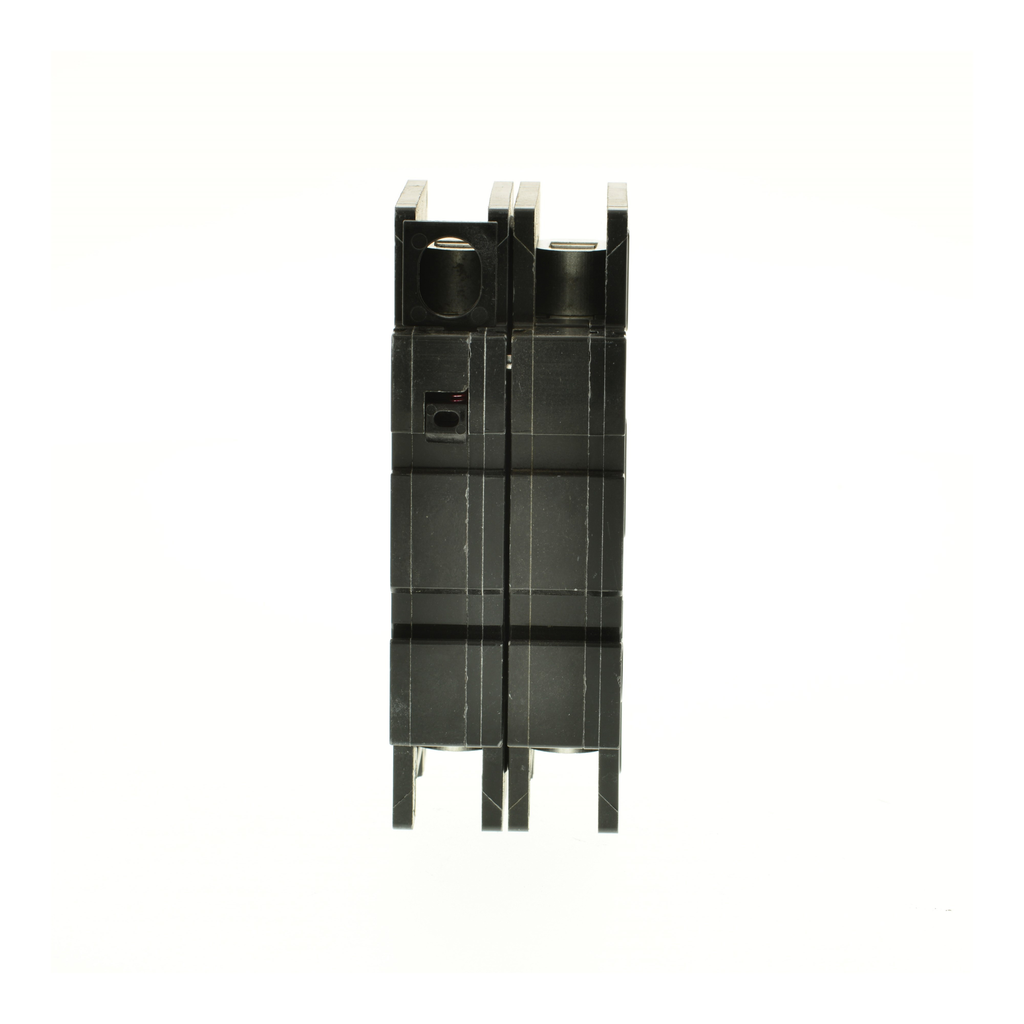

Square D QOU260RP 2-Pole 60 Amp 120/240 Volt Thermal Magnetic/Common Trip Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QOU260RP | Cooper Electric Part # 335506
$84.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
The Square D® Extreme Duty QOU circuit breaker was developed specifically with the unique challenges of harsh environments in mind. The circuit breaker has specially constructed internal components that make it resistant to the damaging effects of high humidity and salt, which are common in commercial HVAC and wastewater treatment applications. The circuit breaker has passed a 500-hour salt spray test.

Technical Information

Amperage
60 Amp
Applications
HACR AND SWITCHING DUTY RATED
Circuit Breaker Type
Standard
Current
60 Amp
Interrupt Rating
5, 10 kAIC
Line Rated Current
60 A
Mounting Type
DIN Rail,Flush,Surface,Unit
Number of Poles
2 Pole
Short Circuit Current
10 kA
Size
1.5 in
TC Connection
AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE
Type
MINIATURE CIRCUIT-BREAKER
Voltage
120/240 Volt

Manufacturer Information

Brand
QO™
Sub Brand
QOU

General Product Info

12-Digit UPC
785901845171
GTiN
00785901845171
Product UPC
78590184517

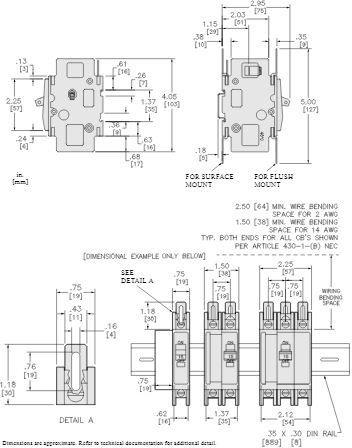

Dimensions

Depth
2.95 Inch
Height
4.05 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
1.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Additional Information
  • Tightening Torque Rating 45 Inch-Pound
  • Packaging Type Retail
  • Applicable Standard IEC
Features
  • RoHS/REACH Compliant
  • Mercury-Free
  • Halogen-Free
  • HACR and Switching Duty Rated
  • Green Premium Product
