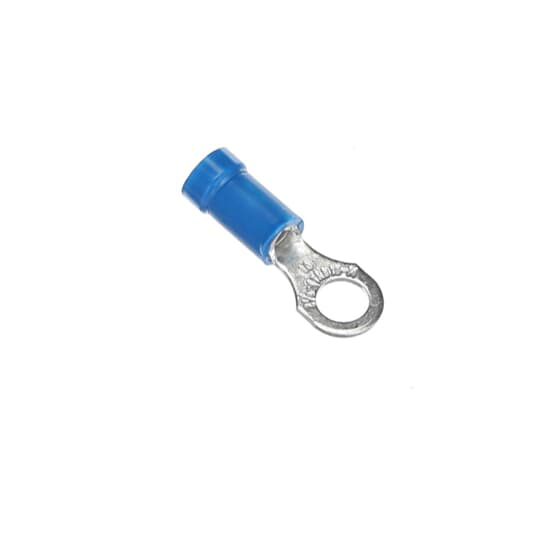

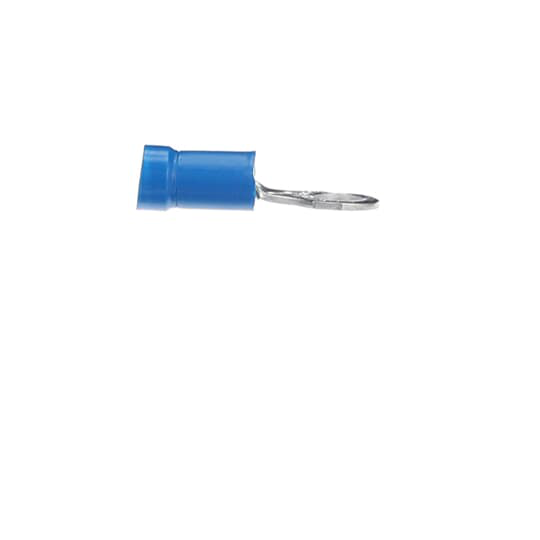

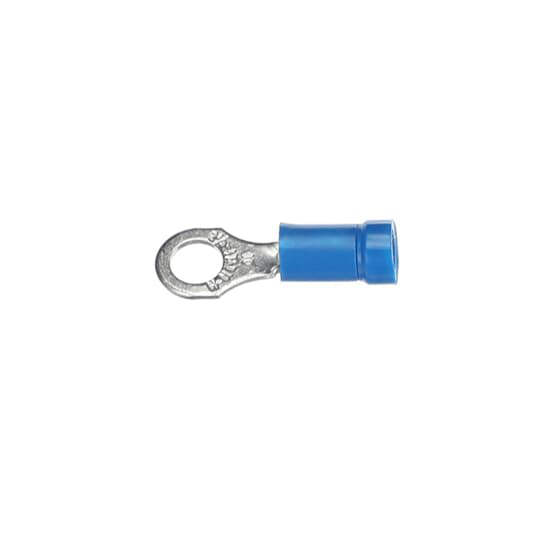

Product image for Thomas & Betts 14RB-10 Vinyl-Insulated Ring Terminal - #18-14, #10bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Thomas & Betts 14RB-10 Vinyl-Insulated Ring Terminal - #18-14, #10bolt

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-10 | Cooper Electric Part # 33490
$110.27/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
200 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800691
Color
Blue
Finish
Tin Plated
GTiN
05414363137887
Product UPC
78621080069
Used With
Round Conductors

Dimensions

Thickness
.03 in
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
Certifications
  • UL
  • CSA
