3M 7000133223 3M™ Performance Plus™

Manufacturer: 3M | Catalog # 7000133223 | Cooper Electric Part # 33453
$0.24/ea
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
500 available

For Pick Up

at Ocean Closes 5:00pm ET
23,500 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

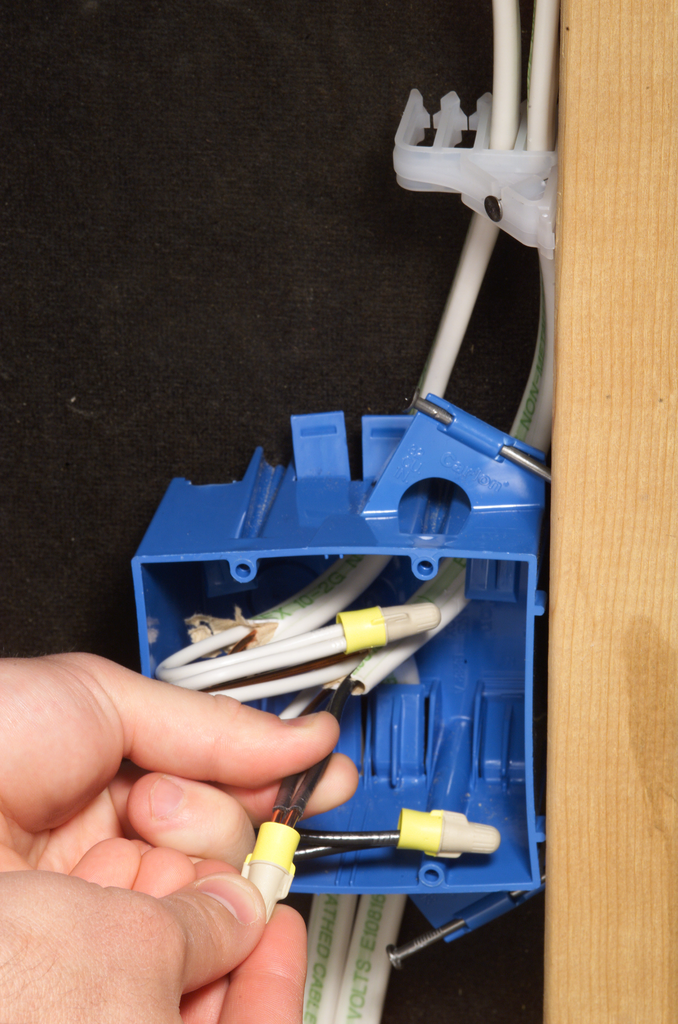

The 3M™ Performance Plus Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with less effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over stripped wires.

Technical Information

Material
Plastic
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
TC Connection
Twist-On
Temperature Rating
221 degrees F
Type
Wire
Voltage
600/1000 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128552193
Color
Tan/Yellow
GTiN
10051128552190
Product Type
Connector
Product UPC
05112855219

Certifications and Compliance

Country of Origin
USA
Features
  • STRONG BITING SPRING: for a secure, reliable and long-lasting connection in all your pigtail applications
  • UNIQUELY FLEXIBLE SPRING that has generous room for expansion into greater wire range and reuse
  • DUAL COLOR CODED TAN/YELLOW: one connector does the job of two traditional connectors in the majority of applications
  • UL LISTED for 600 volts on with copper wire only and 1000 volts maximum in signs and lighting fixtures (luminaries)
  • WIRE RANGE: 22-12 AWG for solid and/or stranded copper conductors

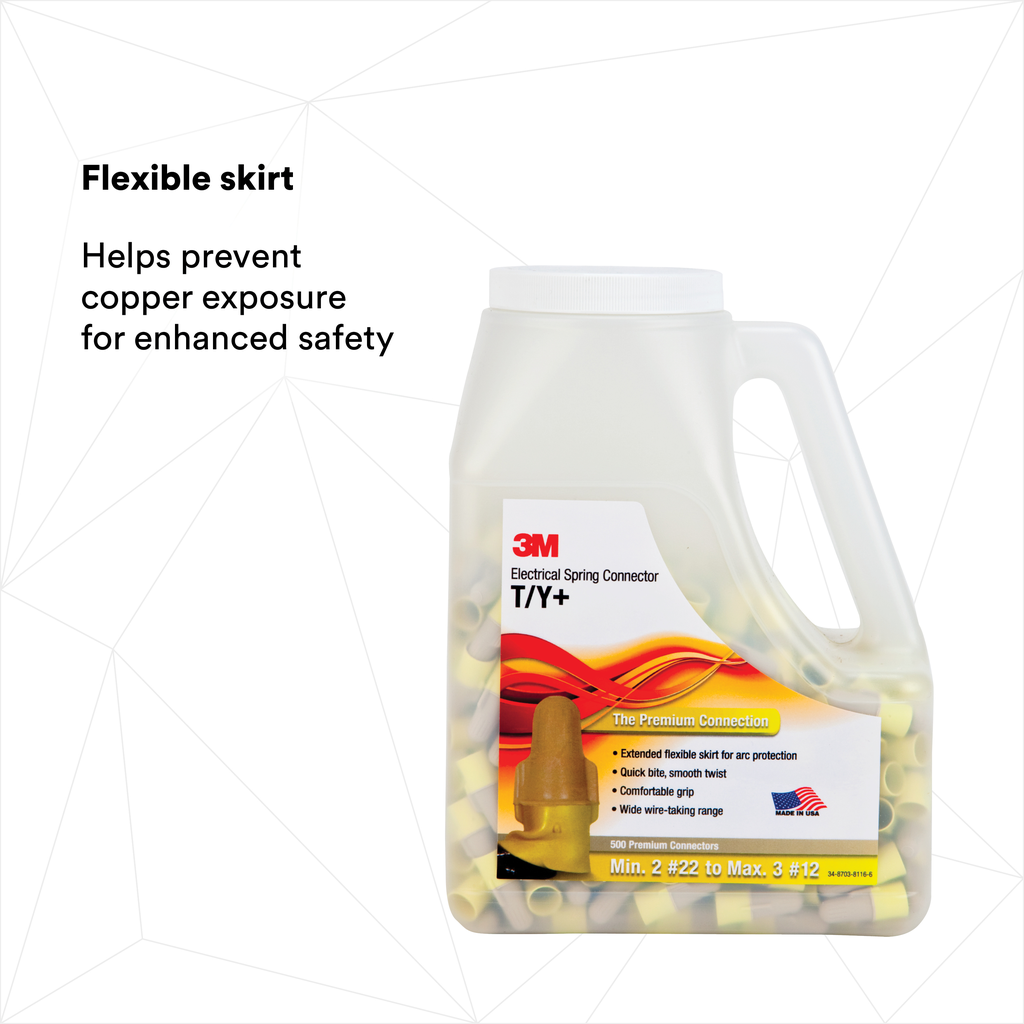

  • FLEXIBLE SKIRT helps prevent copper exposure for enhanced safety
