P&S PTRA6STRG 6 IN PT STR WIRE WITH

Manufacturer: Pass & Seymour / Legrand | Catalog # PTRA6STRG | Cooper Electric Part # 334143
$7.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure

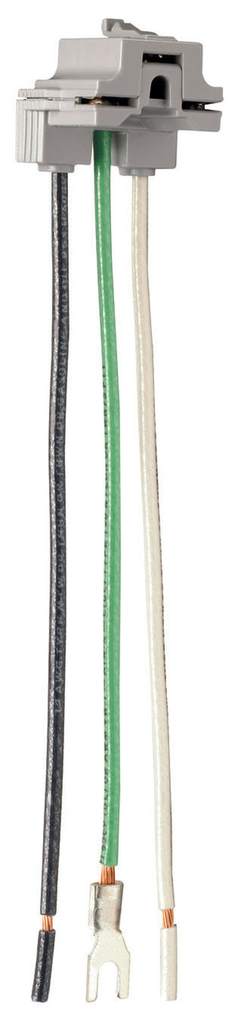

PlugTail® Connectors, Right Angle with Ground Screw, Stranded, 6-inch

Technical Information

Applications
Commercial
Conductor Size
12 AWG
Dielectric Strength
2000 V
Material
Polycarbonate
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
7.5 In
Temperature Rating
-40 degrees C
Type
Connectors
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007242768
Color
Gray
GTiN
00785007242768
Product Series
PlugTail
Product UPC
78500724276
UNSPSC
39121406

Dimensions

Length
6 Inch

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
