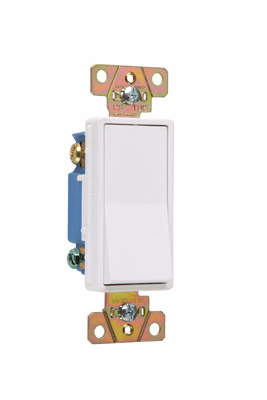

Product image for Pass & Seymour 2603-W Three-Way, Back And Side Wire, Decorator Switch, 15 Amps, 120/277 Volts, White.
Email

Pass & Seymour 2603-W Three-Way, Back And Side Wire, Decorator Switch, 15 Amps, 120/277 Volts, White.

Manufacturer: Pass & Seymour / Legrand | Catalog # 2603W | Cooper Electric Part # 33270
$30.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Three-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, White.

Technical Information

Actuator
Paddle, Rocker/Button
Amperage
15 Amp
Applications
For Industrial Application
Contact Rating
120/277 VAC, 15 A
Material
Thermoplastic
Mounting Type
Wall, Flush, Screw
Number of Poles
2 Pole
Size
4.25"
Type
3 Way
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539158
Color
White
Finish
Matte
GTiN
00785007539158
Product UPC
78500753915

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
