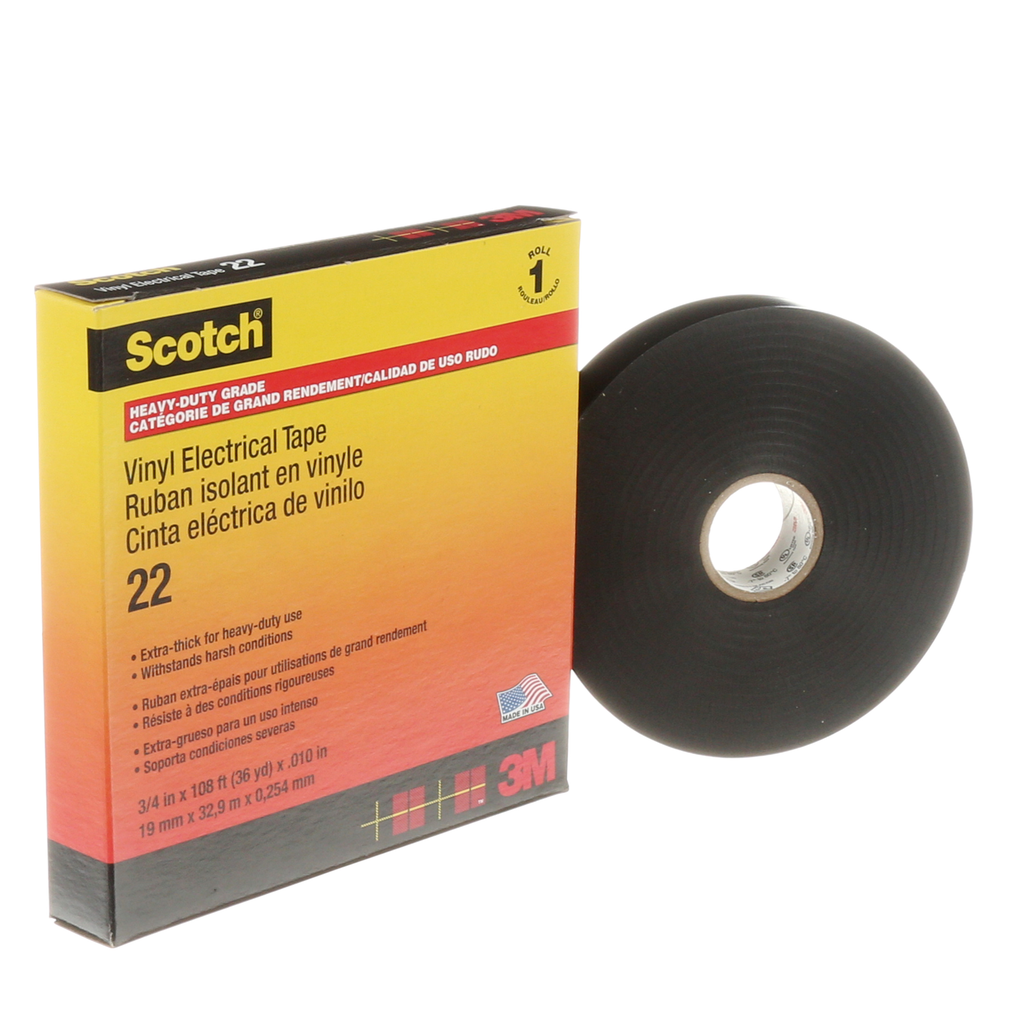

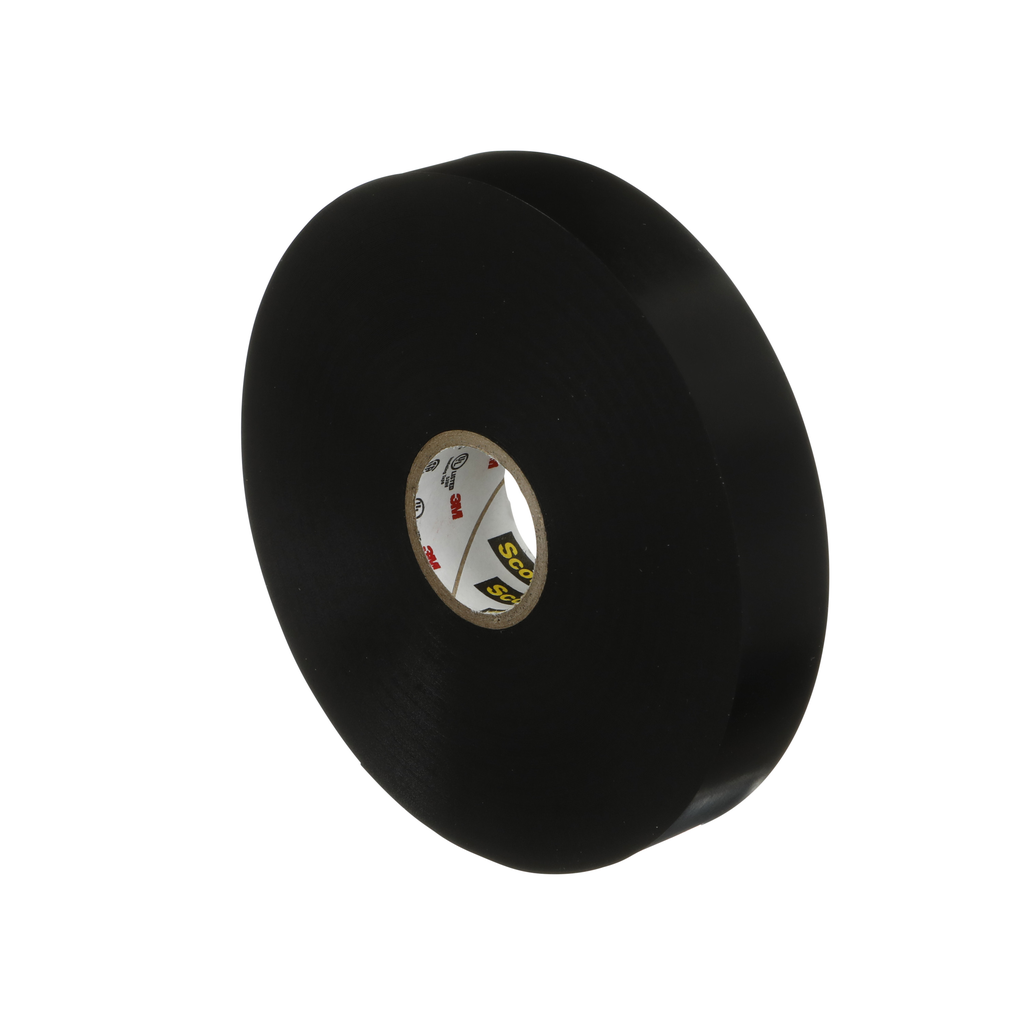

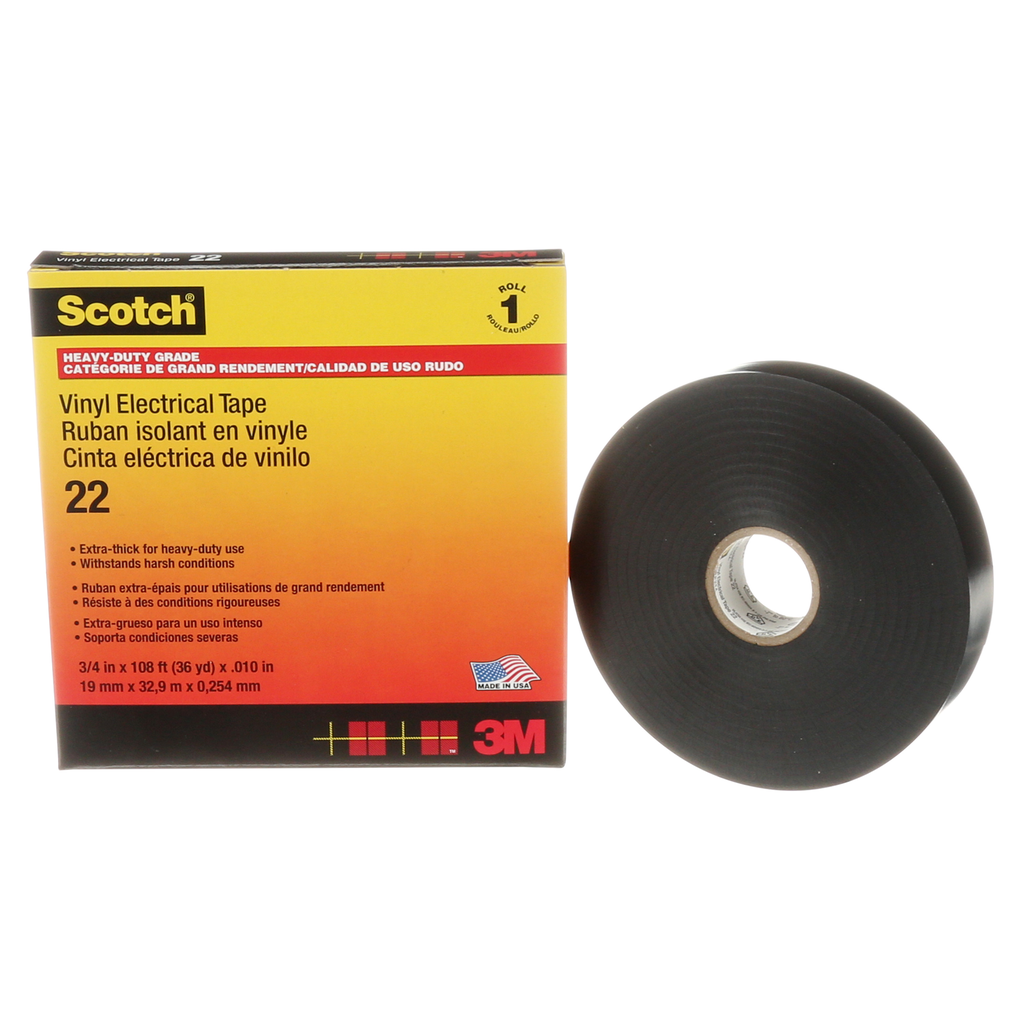

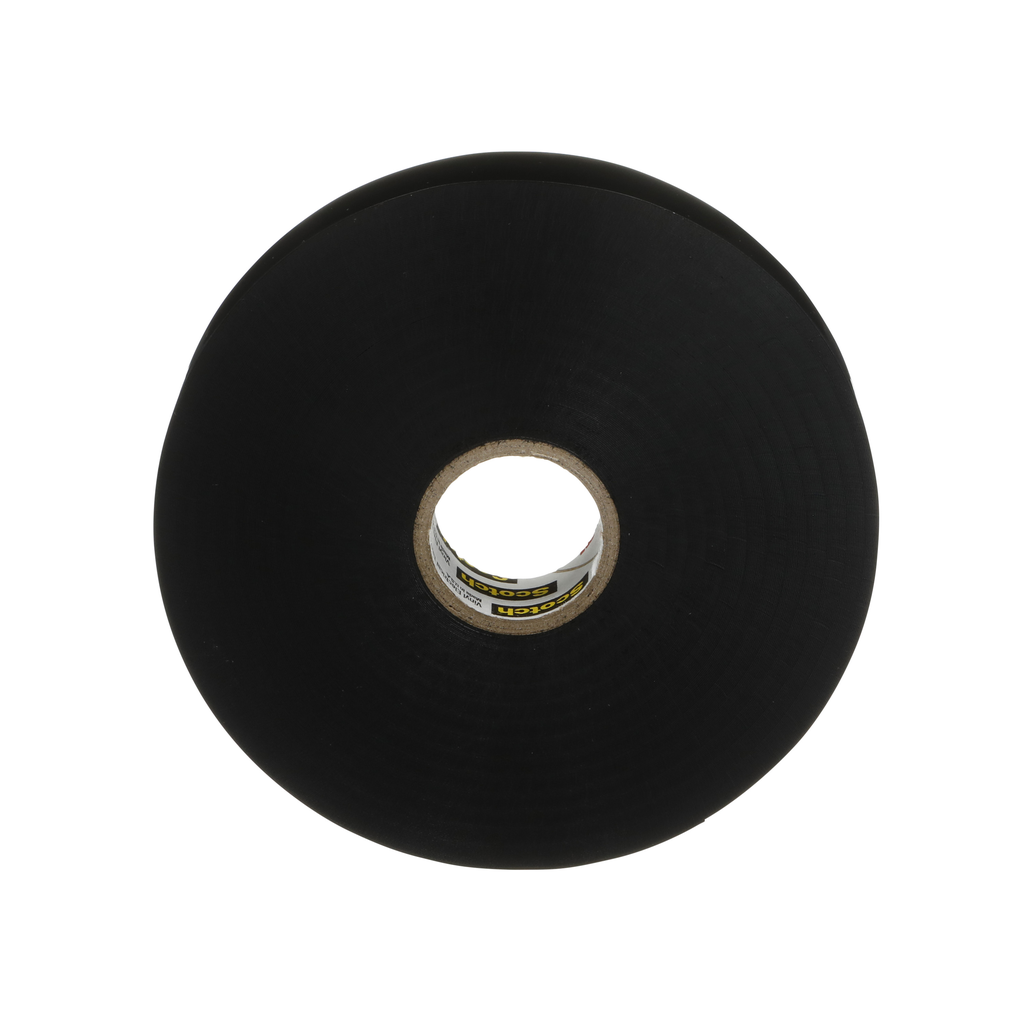

3M 22-3/4*X36YD 10.0 Mil (19.05 mm x 3) Heavy Duty Vinyl Tape (7000031344)

Manufacturer: 3M | Catalog # 7000031344 | Cooper Electric Part # 33193
$43.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 .F ( 10 to 80 .C).

Technical Information

Adhesive Type
Rubber
Applications
Electrical Maintenance
Backing Material
PVC
Dielectric Strength
1200 V
Material
PVC
Max Operating Temperature
176.0 degrees F
Min Operating Temperature
-10.0 degrees C
Operating Temperature
-10 To 80 degrees C
Size
3/4"X36YD
Tensile Strength
35.0 N
Type
Premium Vinyl Insulating Tape

Manufacturer Information

Brand
Scotch
Sub Brand
Scotch

General Product Info

12-Digit UPC
054007100348
Color
Black
GTiN
00054007100348
Product Form
Roll
Product Type
Vinyl Electrical Tapes
Product UPC
05400710034

Dimensions

Length
3/4 Inch
Overall Length
36.0 in
Thickness
10 mil
Width
0.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • OFFERS PROTECTION: Provides electrical and mechanical protection with pressure-sensitive, rubber-based adhesive
  • COMPATIBLE: Compatible with solid dielectric cable insulation up to 600 volts
  • DURABLE: Made of black PVC that prevents corrosion of electrical conductors
  • THICKNESS: 10-mil thick
  • UL LISTED: UL 510 Standard Insulating Tape (product category OANZ), File E129200
  • CSA CERTIFIED: CSA Certification; Standard C22.2 No. 197-M1983 PVC Insulating Tape, File LR48770
