Panduit LCAX1-56-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug

Manufacturer: Panduit Corp | Catalog # LCAX1-56-X | Cooper Electric Part # 331483
$918.57/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing

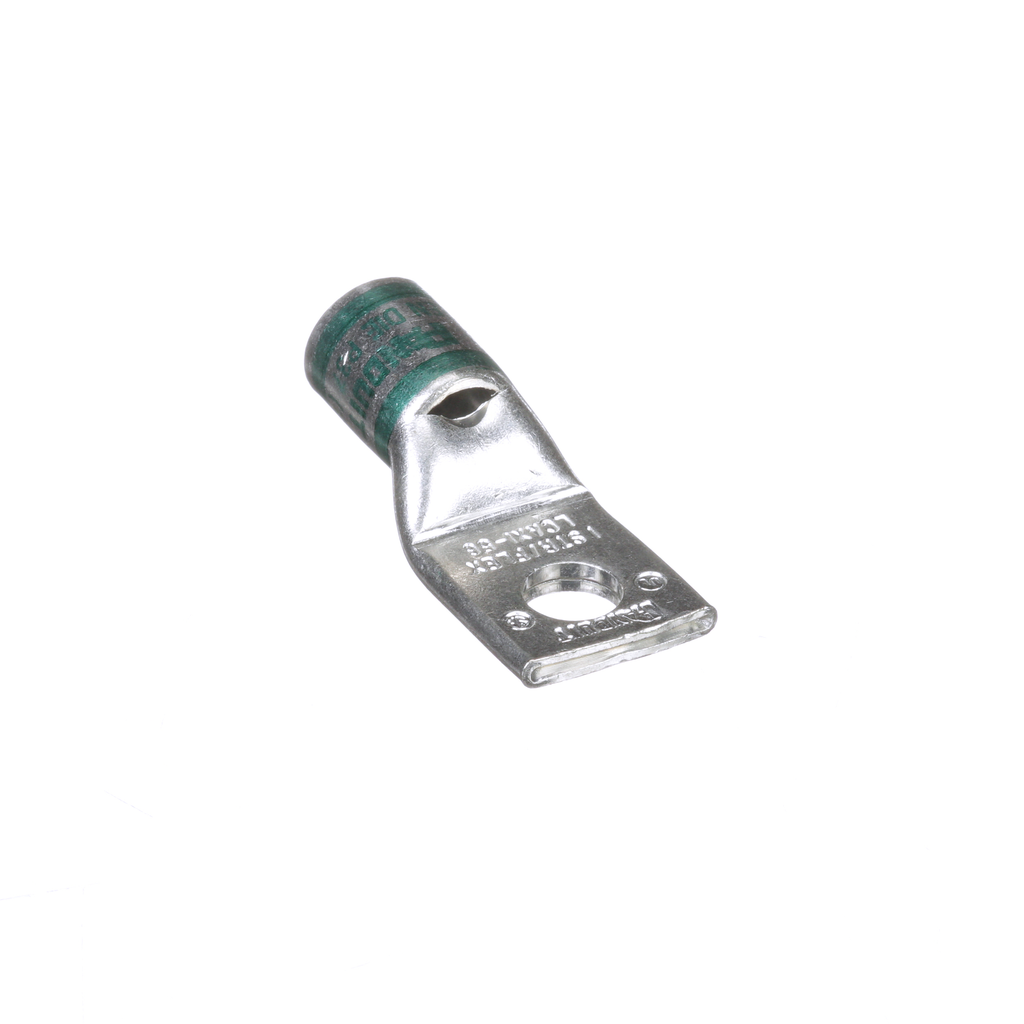

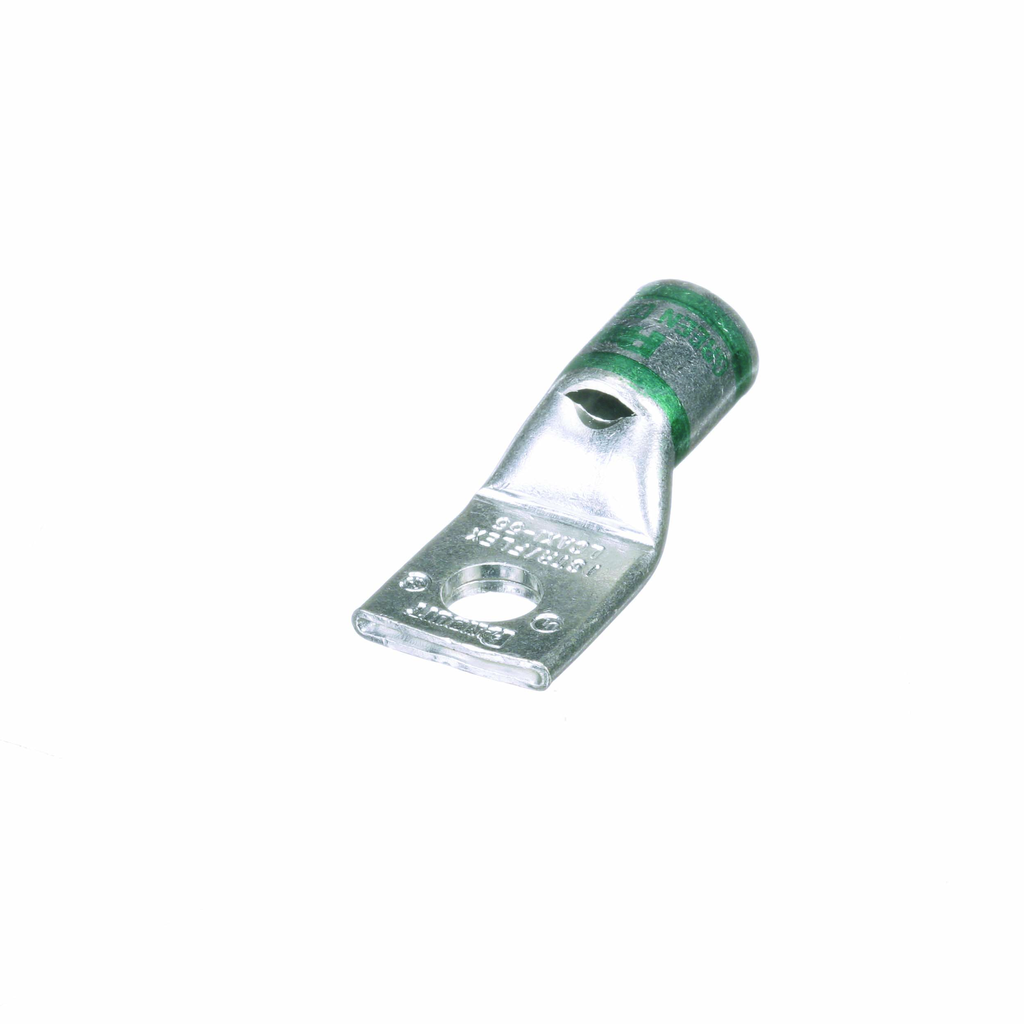

The LCAX1-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
0.66 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Green
Material
Copper
Number of Holes
1 Hole
Size
#1 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
5/16 in
Tongue Thickness
0.12 in
Tongue Type
Standard
Tongue Width
0.76 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435128
Color
Green
GTiN
00074983435128
Product UPC
07498343512

Dimensions

Outer Diameter
0.52 in
Overall Length
1.72 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
