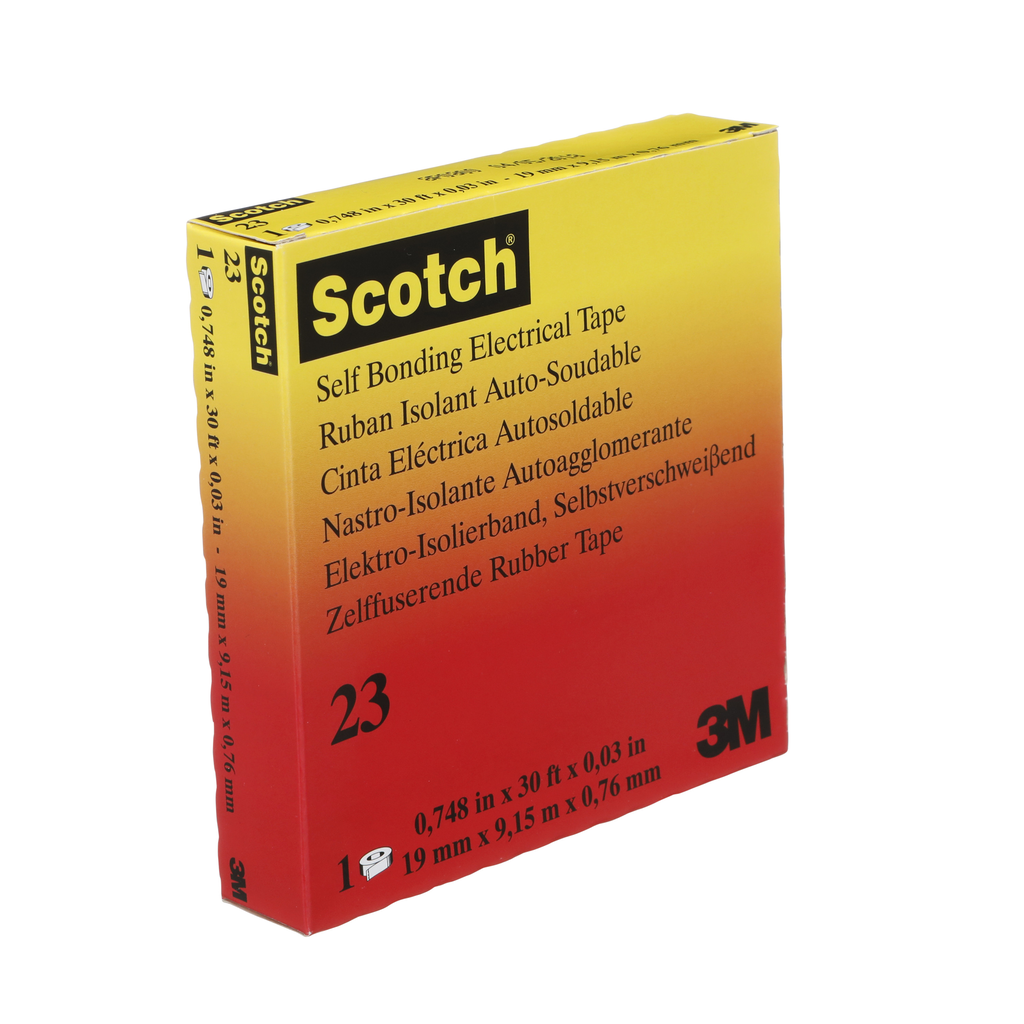

3M 23 3/4* x 30ft Scotch® Rubber Splicing Tape, Black (7000007286)

Manufacturer: 3M | Catalog # 7000007286 | Cooper Electric Part # 32963
$64.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
15 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

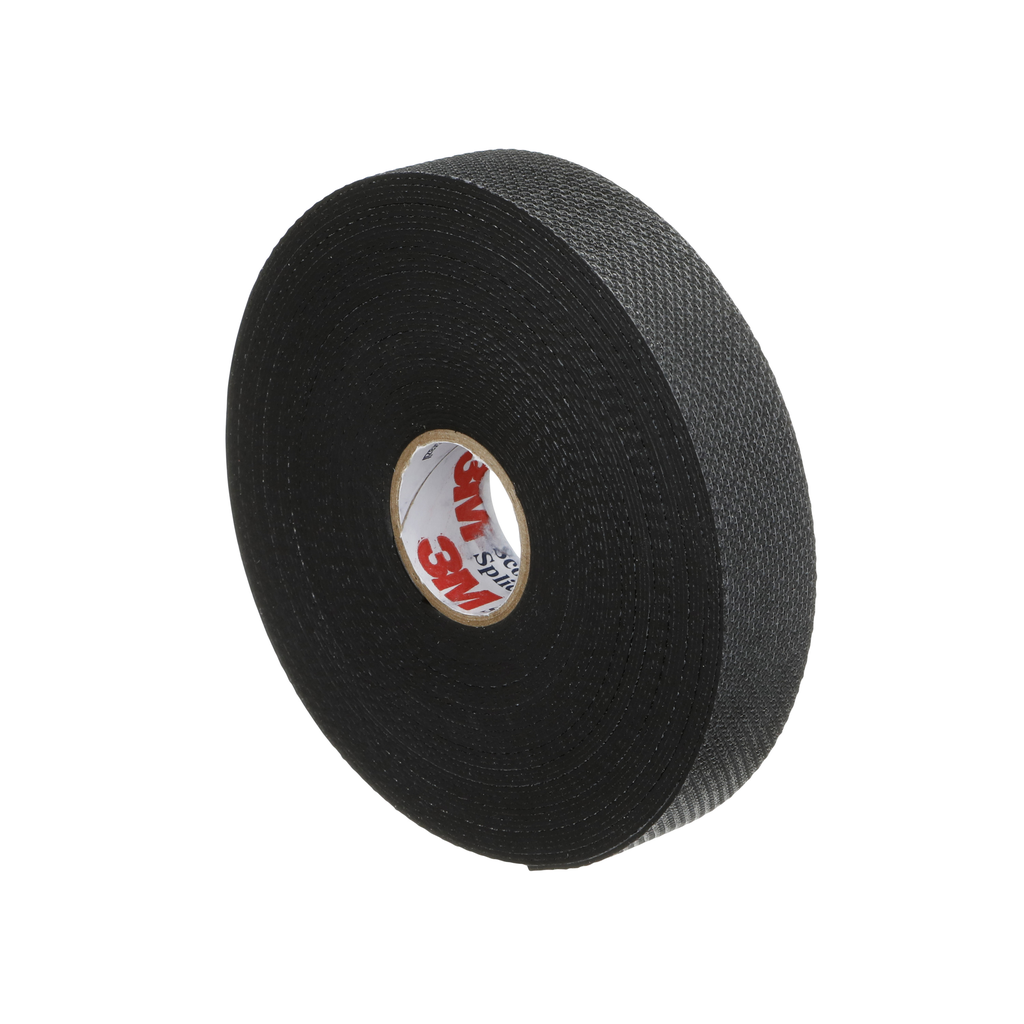

The Scotch® Rubber Splicing Tape 23 is a 30-mil (0.76 mm), premium-grade, highly conformable, rubber splicing tape. The self-fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194°F (90°C).

Technical Information

Adhesive Type
Non-Adhesive
Applications
Electrical Maintenance,Insulation
Backing Material
Ethylene Propylene Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
0.0 degrees C
Operating Temperature
90 degrees C
Size
.75 in x 30 ft
Tensile Strength
8.0 lb/in
Type
Insulating and Splicing
Voltage
69 kV

Manufacturer Information

Brand
Scotch
Sub Brand
Scotch

General Product Info

12-Digit UPC
891040003867
Color
Black
GTiN
07891040003860
Product Form
Roll
Product Type
Rubber Tapes
Product UPC
89104000386

Dimensions

Length
30 Foot
Overall Length
30.0 ft
Thickness
0.76 mm
Width
0.75 in

Certifications and Compliance

Country of Origin
Brazil
Features
  • Can be applied when stretched or unstretched without a loss in physical or electrical properties.
  • Operating temperatures up to 194F (90C) and emergency overload temperature up to 266F (130C)
  • The special polyester liner will not stick to the tape upon unwind, protects tape during application

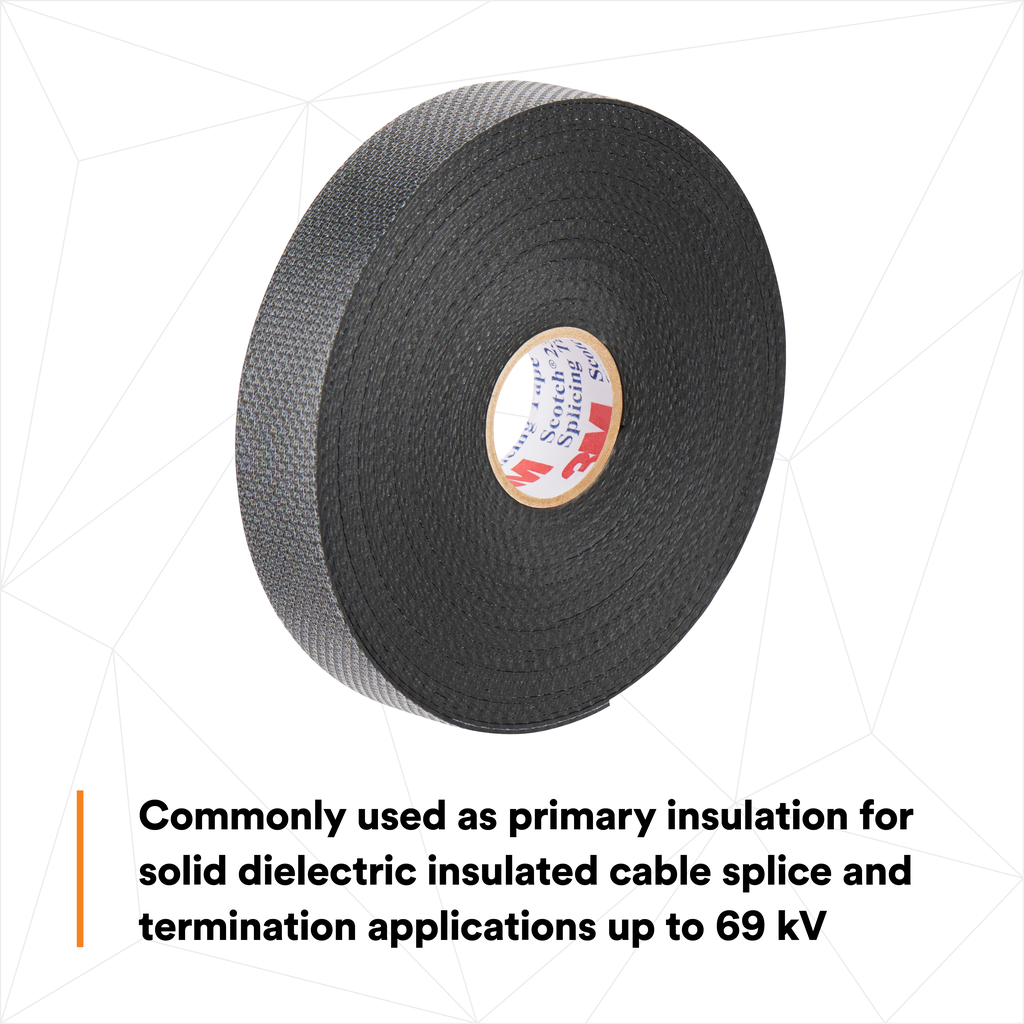

  • Can be as primary insulation for building stress cones on cables up to 35 kV for solid dielectric cable
  • Compatible with all solid dielectric cable insulation like polyethylene, Butyl Rubber, PVC & more
  • RoHS 2011/65/EU Compliant
