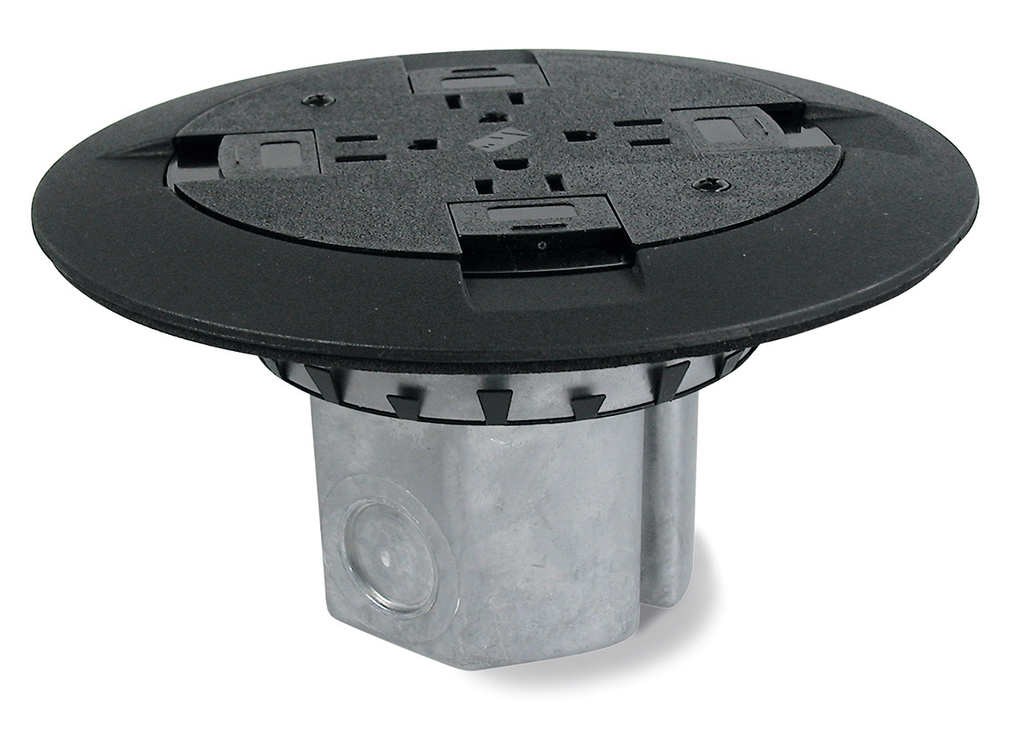

Product image for Wiremold 861QTCAL 861QTC-Series Wood Floor Box Assembly
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Wiremold 861QTCAL 861QTC-Series Wood Floor Box Assembly

Manufacturer: The Wiremold Co | Catalog # 861QTCAL | Cooper Electric Part # 328276

$365.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
861 Series™ Floor Boxes bring power or communication services directly to the point-of-use for open space applications. 861 Series Floor Boxes have been designed for use in both raised and wood-constructed floors and are available with a variety of cover options. These boxes will accept Wiremold flush-style poke-thru cover assemblies which are available in dedicated power, communication or pass-through versions, They will also accept 895 and 896 Series Single Service Covers that are available in brass, brushed aluminum, and nonmetallic materials. 861 Series Floor Boxes are an ideal solution for bringing power or communication to board rooms, commercial offices or upscale residences. And all 861 Series Floor Boxes include TopGuard protection, an industry-leading design that not only meets but exceeds UL scrub water exclusion requirements for tile, wood, and carpeted floors.

Technical Information

Amperage
15 Amp
Applications
Commercial

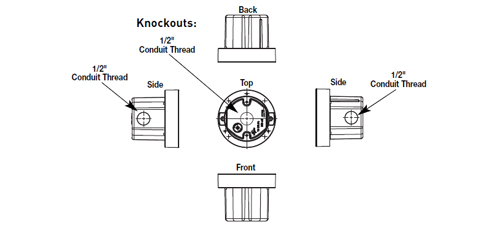

Cable Entry
Knockouts
Component Type
Boxes
Material
Aluminum
Number of Outlets
4
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564013297
Color
Silver
Construction
Assembled
Finish
Powder Coated
GTiN
00786564013297
Product Series
861
Product UPC
78656401329

Certifications and Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
Features
  • Complete with prewired 15A quad receptacle can be wired as standard or isolated ground.
  • Flush poke-thru-style flanges available in a variety of colors/finishes
  • Slide covers match painted flange colors
  • Aluminum and brass covers shipped with black slide covers
  • Brass flange also available with nonmetallic brass-color slide holder
  • Requires a 4'' (102mm) diameter hole and overall floor depth of 1'' (25mm). Assembled with scrub water gasket. For use on tile, wood, or carpet floors.
Certifications
  • RoHS Compliant
  • cULus Listed
