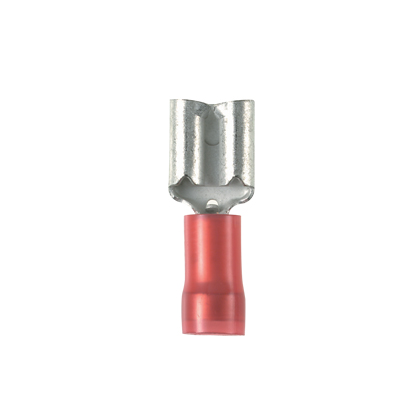

Product image for Panduit DNF18-110-M Nylon Barrel Insulated Female Disconnect
Email

Panduit DNF18-110-M Nylon Barrel Insulated Female Disconnect

Manufacturer: Panduit Corp | Catalog # DNF18-110-M | Cooper Electric Part # 326287
$1,567.44/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.69" (17.5 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
194 degrees F
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
194 degrees F
Type
Disconnect
Voltage
300 Volt
Wire Size
0.5-1.0 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827053
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983827053
Product UPC
07498382705
UNSPSC
39121409

Dimensions

Height
0.08 Inch
Overall Length
0.69 in
Width
0.15 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
