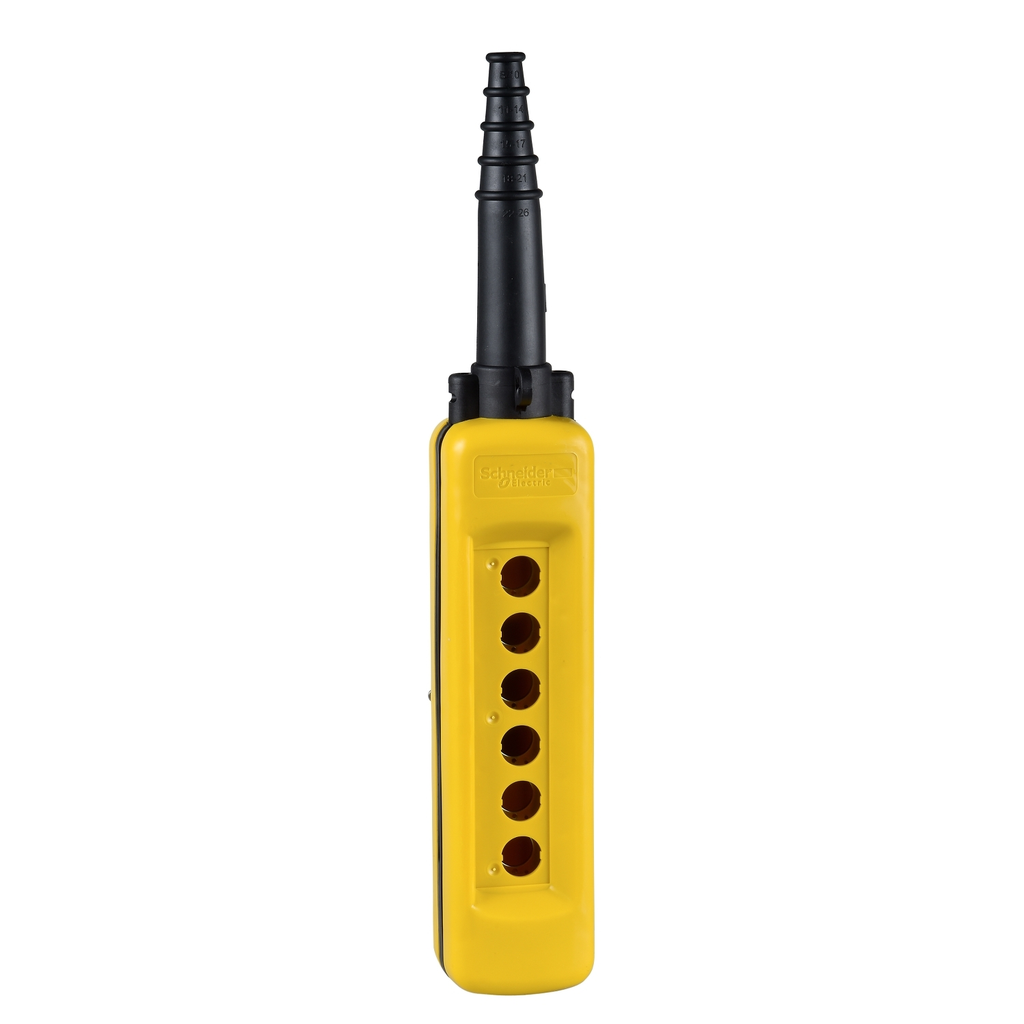

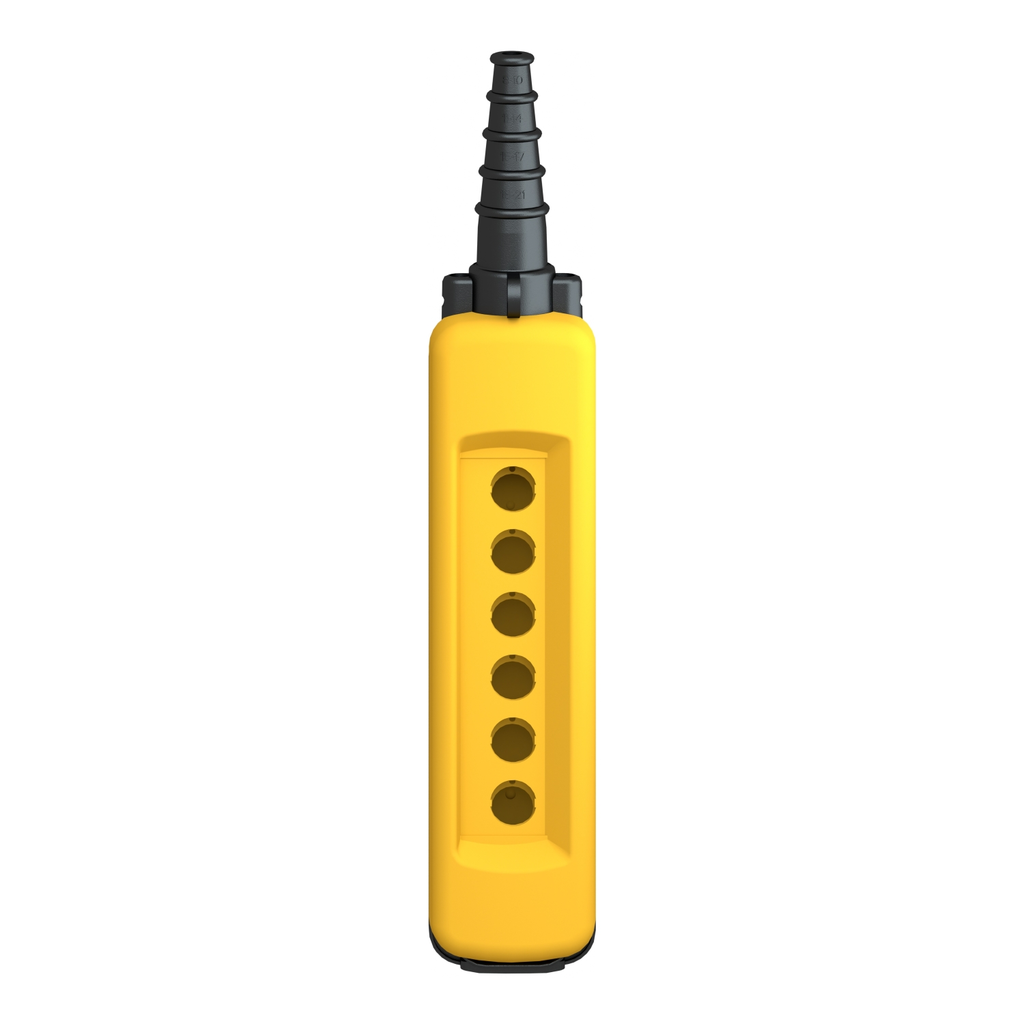

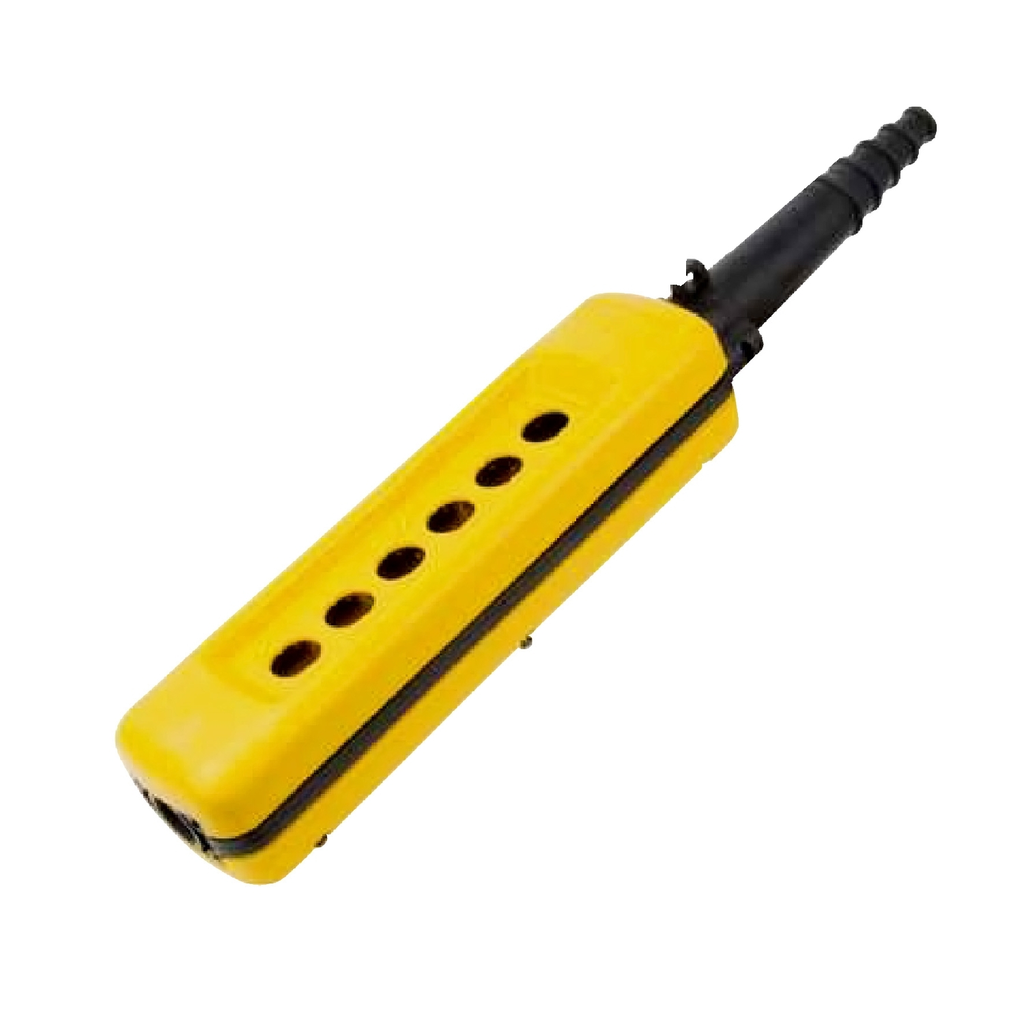

Square D XACA06H7 6-Hole Yellow Polypropylene Pendant Station Enclosure

Manufacturer: Square-D / Schneider | Catalog # XACA06H7 | Cooper Electric Part # 325989
$224.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
This Harmony XACA06H7 is an empty pendant control station with 6 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Technical Information

Applications
Control circuit
Cable Entry
8-26 mm
Enclosure
Polypropylene
Enclosure Material
Polypropylene
Enclosure Type
Empty Enclosure
Material
Polypropylene
Net Weight
0.665 kg
Operating Temperature
-13158 degrees F (-2570 degrees C)
Size
6-HOLE
Standard
CSA C22.2 No 14,EN/IEC 60204-32,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
RUBBER SLEEVE WITH STEPPED ENTRY
Type
Double insulated;Pendant control station

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XACA

General Product Info

12-Digit UPC
338911030640
Color
Black/Yellow
GTiN
03389110306491
Product UPC
78590130649
Weight
0.665 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Czechia
Overvoltage Category
  • class II conforming to IEC 61140
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA06_NEW_2024
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA06H7-3dCAD
IP Degree Of Protection
  • IP65 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0032161301
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.6 kg CO2 eq.
  • 0.5826888112
Cable Entry
  • rubber sleeve with stepped entry 8-26 mm
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 3 kg CO2 eq.
  • 3.1941184926
Vibration Resistance
  • 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.1349479798
  • 0.1 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 100 gn IEC 60068-2-27
