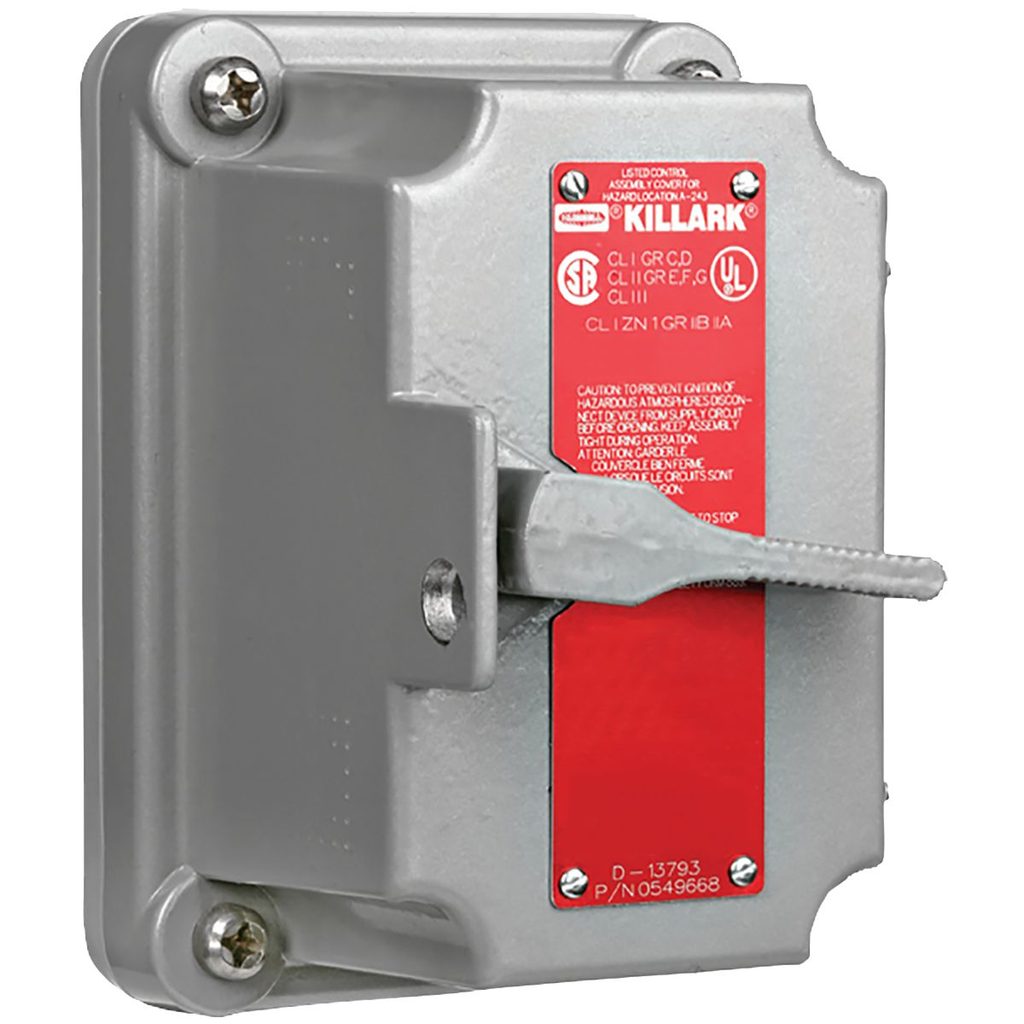

Product image for KLRK FXS-8C TUMBL SWITCH CVR 3P 15A
Email

KLRK FXS-8C TUMBL SWITCH CVR 3P 15A

Manufacturer: Killark | Catalog # FXS-8C | Cooper Electric Part # 324227
$1,067.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
FXS Series - Aluminum 3-Pole Tumbler Switch Cover With Device - Factory Sealed - 15A

Technical Information

Actuator
Lever
Amperage
15 Amp
Applications
For Used Where Making, Breaking or Changing Connections in an Electric Circuit is Required
Enclosure Type
NEMA 3
Frequency
50/60 Hz
Material
Aluminum
NEMA Size
3
Number of Poles
3-3 Pole
Size
5-5/16" H x 3-11/16" W x 3-7/16" D
Type
3-Pole, 3-Phase, Factory Sealed, Lever
Voltage
240/480 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936194899
Color
Gray
GTiN
00783936194899
Product Series
FXS
Product UPC
78393619489
Used With
15 A, 240/480 VAC FXS Series Tumbler Switch

Dimensions

Depth
3-7/16 Inch
Height
4-3/4 Inch
Length
5-5/16 Inch
Width
3-11/16 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Eliminates external sealing requirements.
  • Lower installation cost.
  • NEMA 3 weatherproof.
  • Color coded wiring with more wiring space for easier field installation.
  • Stainless steel captive screws for cover assembly.
  • Lockout accessory available must be factory installed.
  • Ground boss for grounding in the splice box.
  • Device bodies and covers are copper-free cast aluminum alloy.
  • Push button, selector switches and pilot light bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
