Panduit NE2X3WH6 Slotted Duct, Halogen Free,2"X3"X6',White

Manufacturer: Panduit Corp | Catalog # NE2X3WH6 | Cooper Electric Part # 324179
$80.79/ea
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing

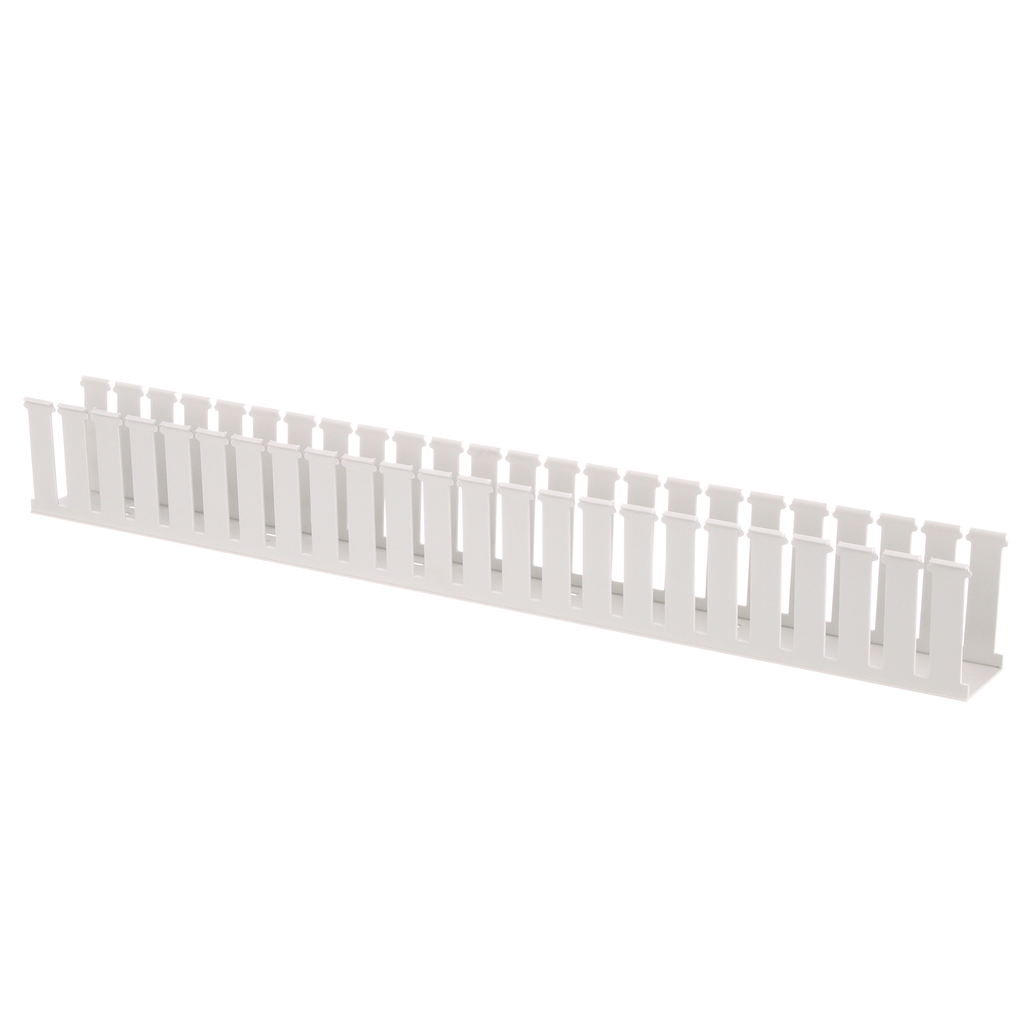

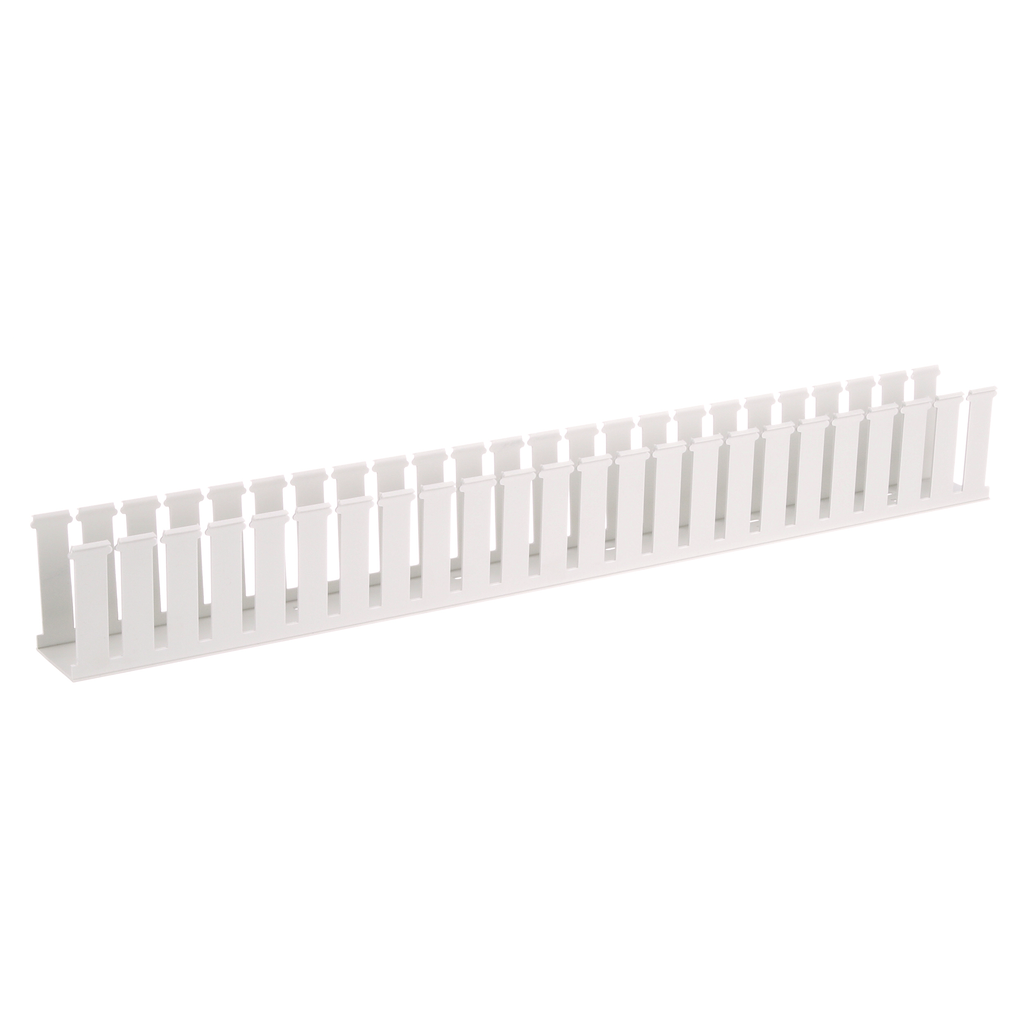

The NE2X3WH6 Panduct NE Halogen-Free Slotted Wiring Duct has a nominal duct size designed to optimize space. Manufactured with a special-purpose material for use in halogen-free or high-temperature applications. It has a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F) and is 20% lighter than PVC. Mounting holes provided. Modified Polyphenylene Oxide (mPPO). 2" x 3" (50.8mm x 76.2mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6/package.

Technical Information

Applications
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications
Material
Polyphenylene Oxide
Mounting Type
DIN Standard Mounting Holes
Size
2.00 x 3.00
TC Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214945
Color
White
GTiN
00074983214945
Product UPC
07498321494

Dimensions

Height
3.06 Inch
Length
1.8 m
Overall Length
6 ft
Thickness
0.07 IN
Width
2.14 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
