Thomas & Betts H10-14 1/4 Inch Bolt Hole 1/0 Wire Non-Insulated Tubular Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # H10-14 | Cooper Electric Part # 322739
$1,342.56/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

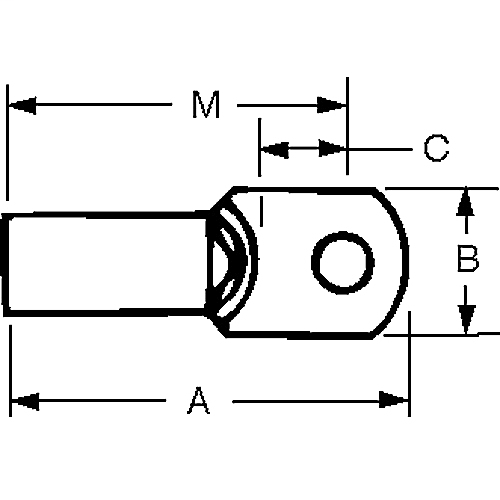

Non-Insulated Tubular Ring Terminal, Length 1.65 Inches, Width .77 Inches, Bolt Hole 1/4 Inch, Wire Range 1AN-1/0, Copper, Tin Plated

Technical Information

Applications
For Copper Conductors
Conductor Size
1/0 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Tubular
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
H
Type
Non-Insulated Ring Terminal
Voltage
600 Volt
Wire Size
0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803692
Color
Metallic
Finish
Tin Plated
GTiN
05414363152385
Product UPC
78621080369

Dimensions

Height
3 Inch
Length
1.65 Inch
Thickness
.05 in
Width
1.3 in
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Certifications
  • UL
  • CSA
