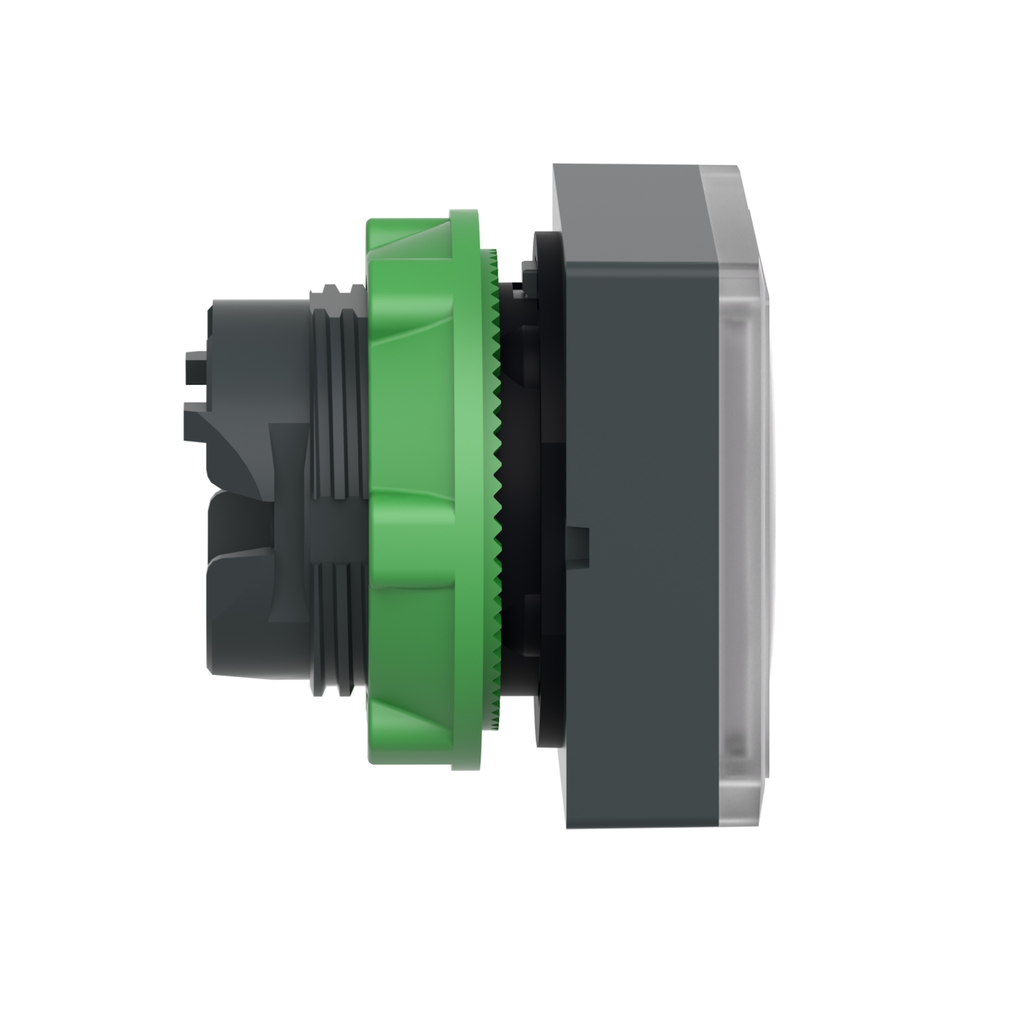

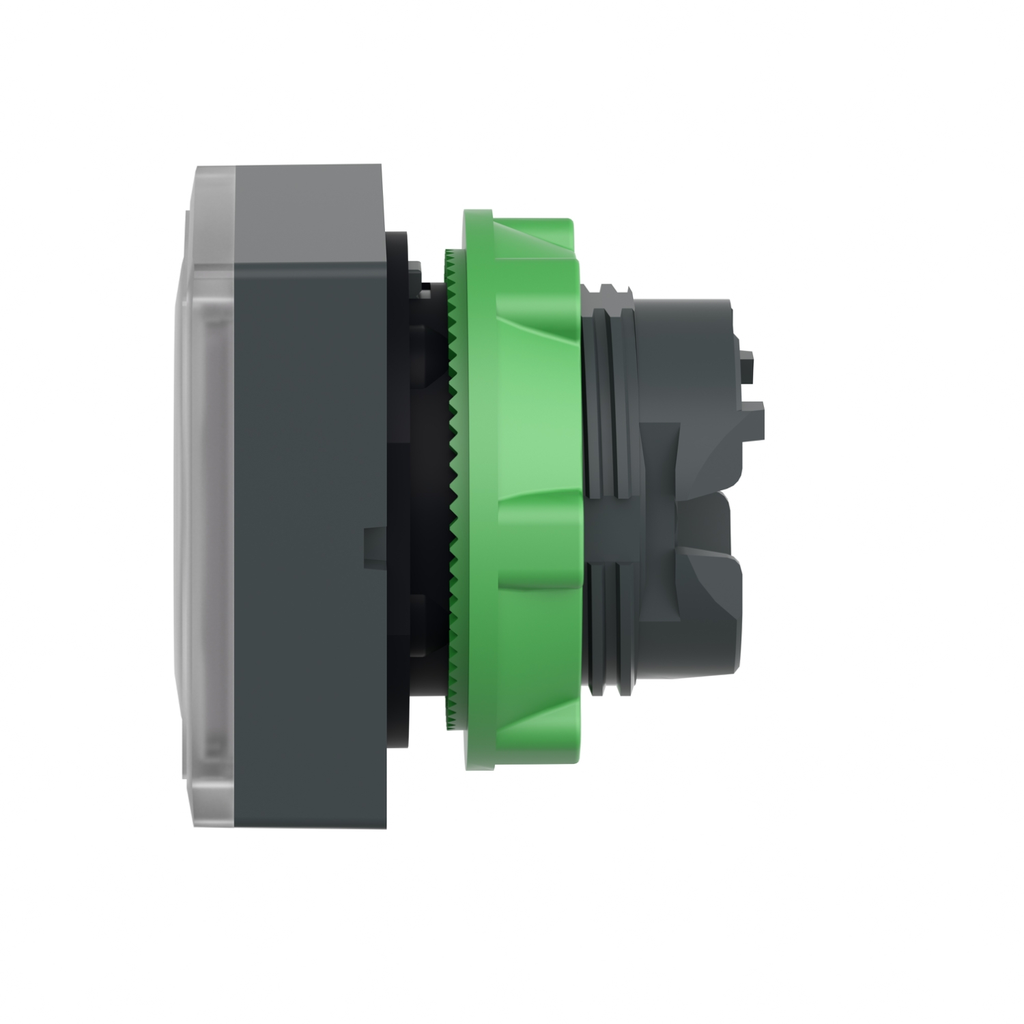

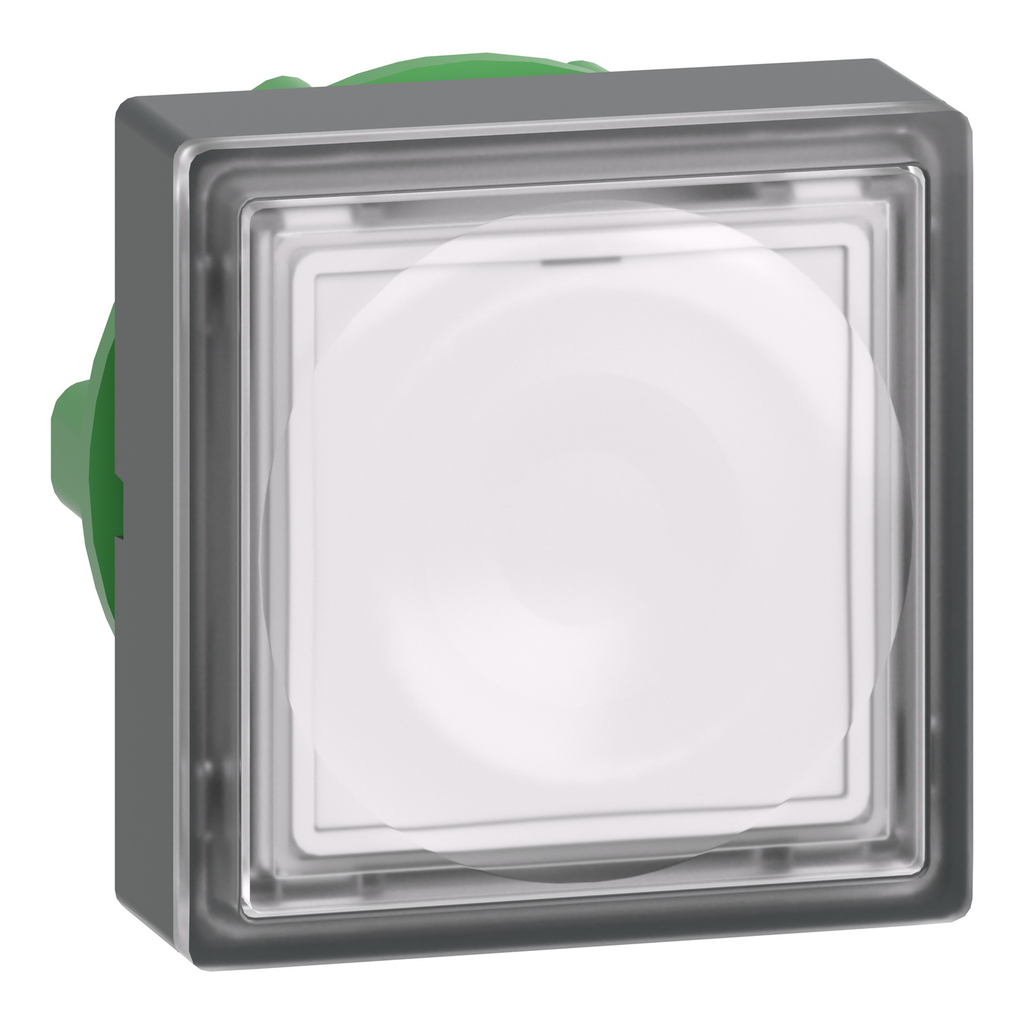

Square D ZB5CW313 22 mm White Square Flush Momentary Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5CW313 | Cooper Electric Part # 322700
$19.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This white flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Action
SPRING RETURN
Actuator
SPRING RETURN,WHITE FLUSH, UNMARKED
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
WHITE
Net Weight
0.023 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,GB 14048.5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110934826
Color
White
GTiN
03389110934823
Product UPC
78590138698
Weight
0.023 kg

Dimensions

Height
30 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG503001
  • ZBYP2101
