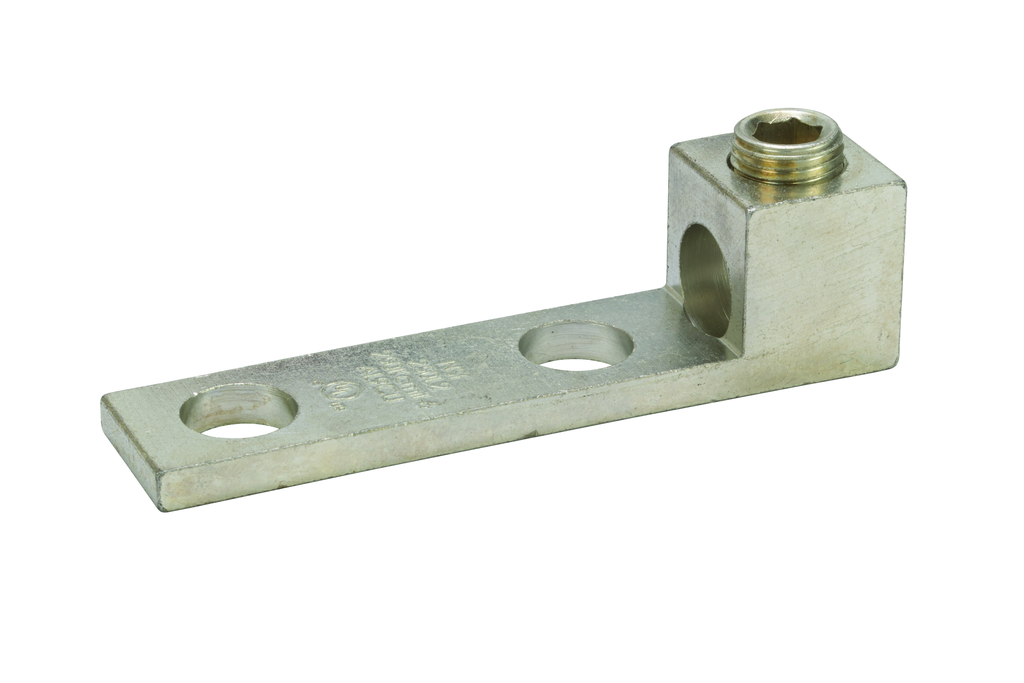

NSI 250L2 0.56 Inch 6 AWG to 250 MCM Aluminum 1-Port 2-Hole Panelboard Lug

Manufacturer: NSi | Catalog # 250L2 | Cooper Electric Part # 32020
$1,290.08 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
1 Port Panelboard Lug 250 MCM - 6 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

Technical Information

Applications
Wire Termination
Bolt Size
1/2 IN
Conductor Size
250 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
1,1
Number of Poles
1 Pole
Number of Ports
1
Standard
CULUS
Temperature Rating
90 degrees C
Type
Panelboard Lug
Voltage
600 Volt
Wire Size
250 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001306
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001306
Product UPC
66238100130

Dimensions

Height
1.38 Inch
Length
4.31 Inch
Warranty Length
1 yr
Width
0.88 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.750 inch
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
