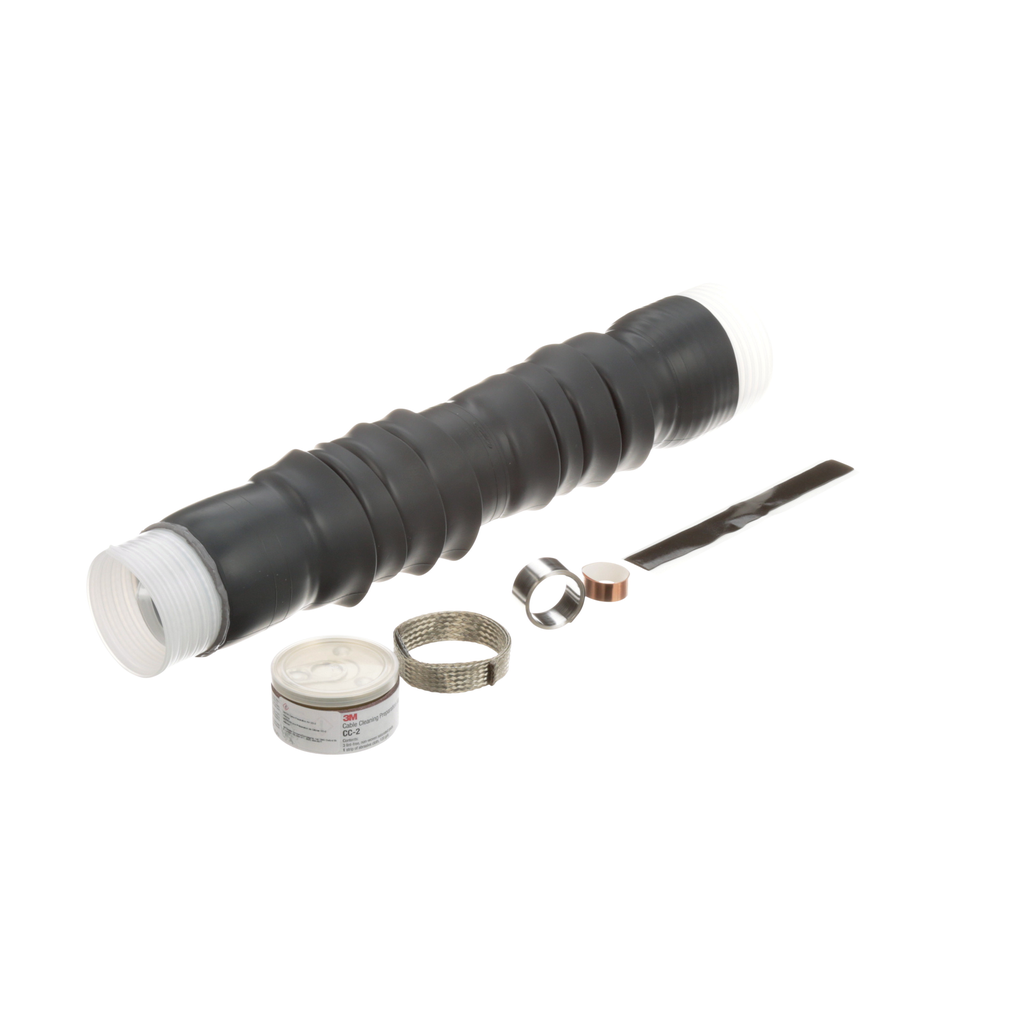

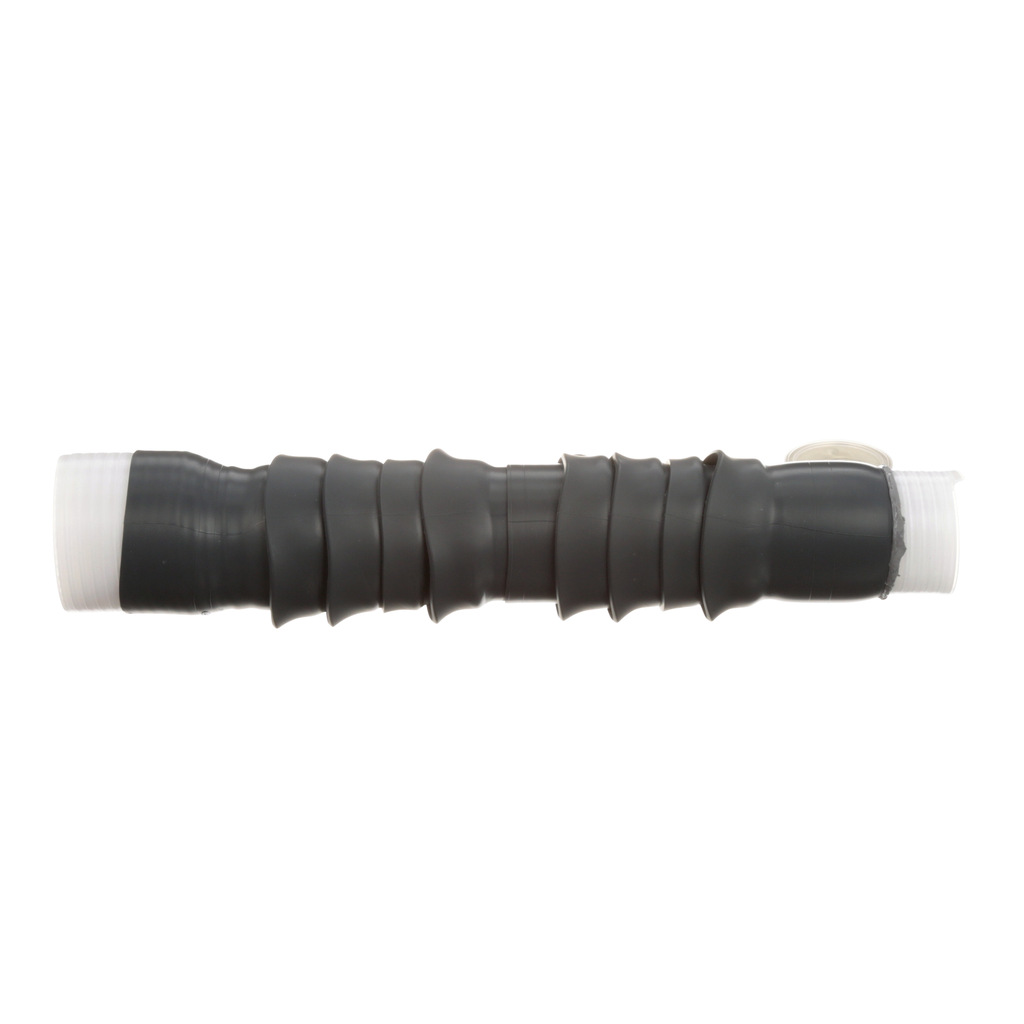

3M 7686-S-8 Cold Shrink 3 Terms/Kit 8 Skirt Termination Kit

Manufacturer: 3M | Catalog # 7000006130 | Cooper Electric Part # 319339
$5,015.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

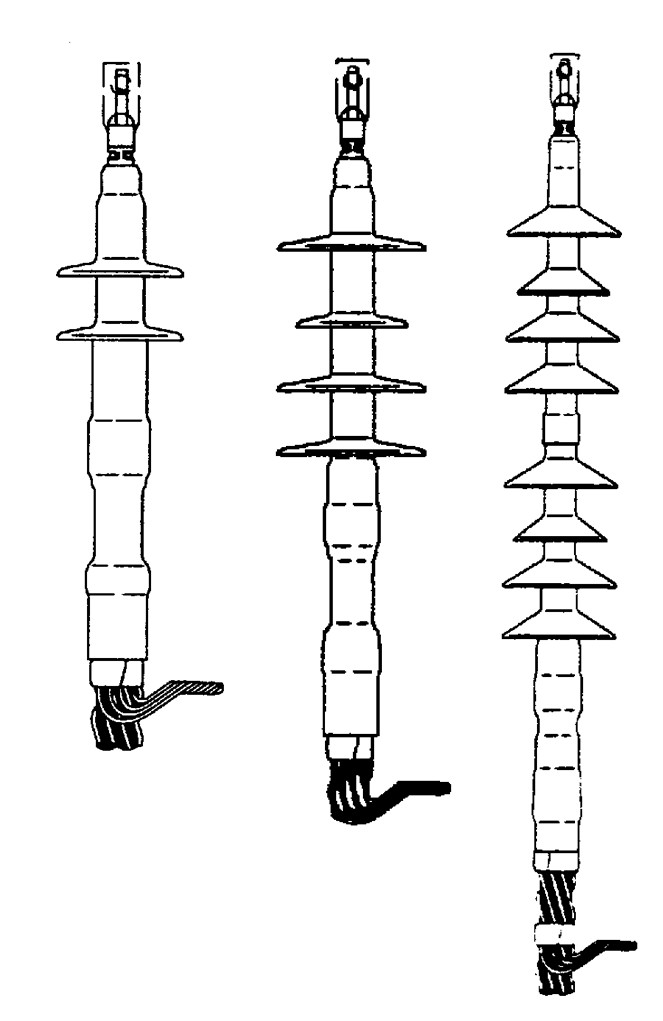

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 8 Skirt Termination Kit 7686-S-8 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil, 25/28 kV: 900-1750 kcmil and 35 kV: 700-1500 kcmil.

Technical Information

Applications
Outdoor
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
Indoor Outdoor
Outdoor Skirted
Number of Conductors
1
Type
QT-III
Voltage
15 kV

Packaging

Units Per Case
1

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007424680
GTiN
00054007424680
Product Series
7680-S
Product UPC
05400742468

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
