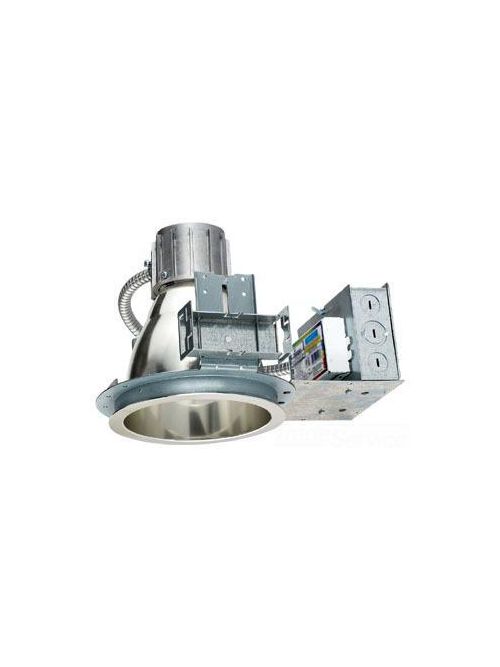

Product image for Juno C6V-126/32T 6-1/8 Inch 120/277 Volt 26/32 W 2450 Lumen 4-Pin G24Q Compact Fluorescent Lamp Recessed Downlight
Image thumbnail 0
Image thumbnail 1
Email

Juno C6V-126/32T 6-1/8 Inch 120/277 Volt 26/32 W 2450 Lumen 4-Pin G24Q Compact Fluorescent Lamp Recessed Downlight

Manufacturer: Juno Lighting | Catalog # C6V-126/32T | Cooper Electric Part # 317230
$80.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Indy™ C6V-Series, 6-inch vertical CFL luminaires provide energy-efficient illumination in a variety of configurations, including downlight, wall wash, cross-blade louver, and Lenslite. These versatile recessed fixtures employ either triple-tube or quad-tube lamps and offer the features and performance necessary to satisfy a wide range of commercial applications.

Technical Information

Applications
Recessed Commercial; Recessed Specification; Damp Location; Wet Location w/appr Trims
Lamp Type
Compact Fluorescent
Lamp Wattage
32 WTT
Number of Lamps
1
Type
Downlight; Wall Wash
Voltage
120/277 Volt

Manufacturer Information

Brand
Indy
Sub Brand
Indy

General Product Info

12-Digit UPC
633044000264
Color
C6V
Fixture Type
Compact Fluorescent
GTiN
00633044000264
Product UPC
63304400026
Shape
Round
Description
  • Proprietary bar hanger system accommodates Tru-Lock bar hangers for suspended ceilings, 1/2-inch EMT, 3/4-inch and 1-1/2-inch C-channel and linear bars
  • Economical, energy-efficient CFLs are utilized in a vertical lamp design that provides uniform light distribution with excellent brightness control
  • Lenslite version is ideal for food service, canopies, and other applications where diffuse illumination or a shielded light source is desired
  • Uses triple-tube or quad-tube, 4-pin CFL lamps of various wattages; UL/cUL Listed for feed through and damp locations
  • Reflectors feature self-flanged trim of same finish (painted white flange optional); baffles have specular clear Alzak® upper reflector and painted white flange
  • Downlights available with open reflector, wall wash, baffle, or unique parabolic cross-blade louver trim that substantially reduces glare
  • 120/277 universal voltage HPF electronic ballast; oversized junction box for easy wiring
  • Lenslite has specular clear Alzak® upper reflector and lower cone with self-flanged trim of same finish (white optional); baffles have painted white flange
  • Vented die-cast socket housing maximizes lamp life and performance
  • 3/4-inch maximum ceiling thickness; ask about solutions for thicker ceilings
