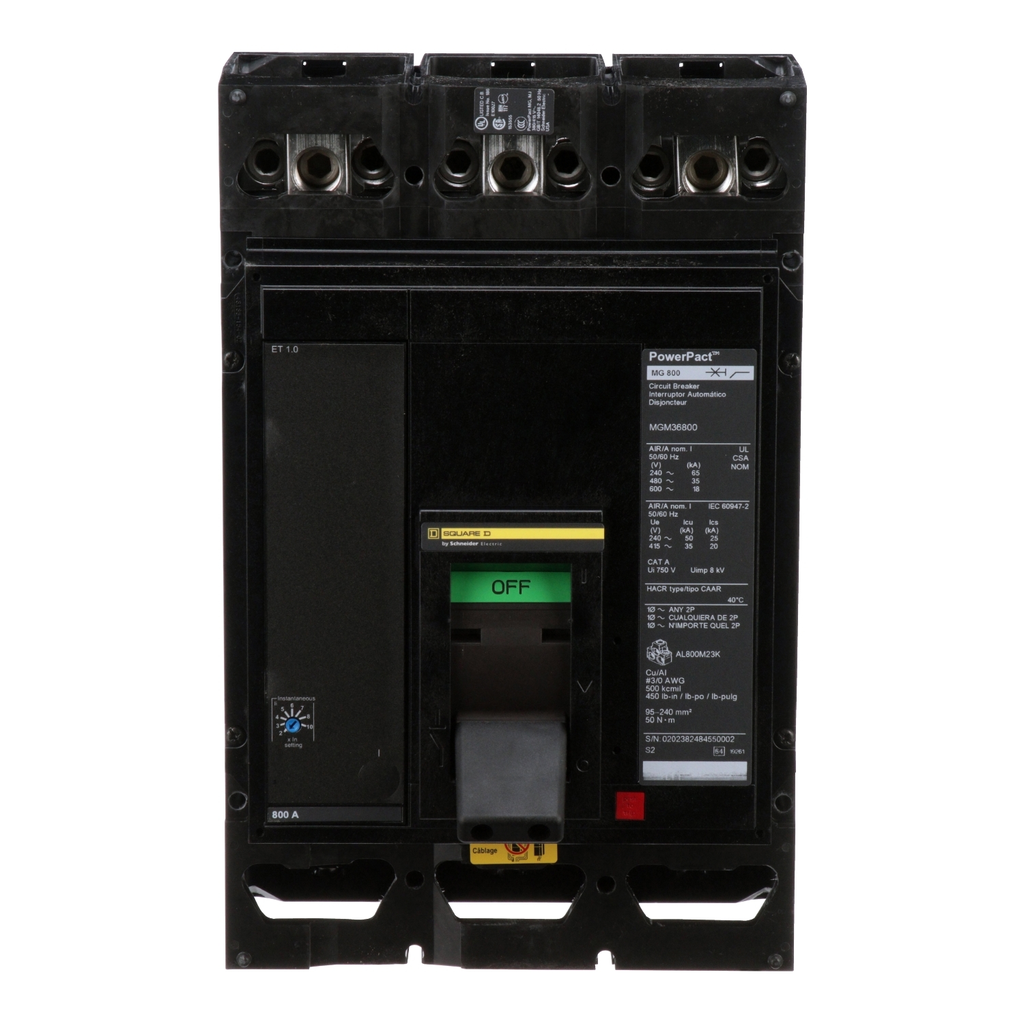

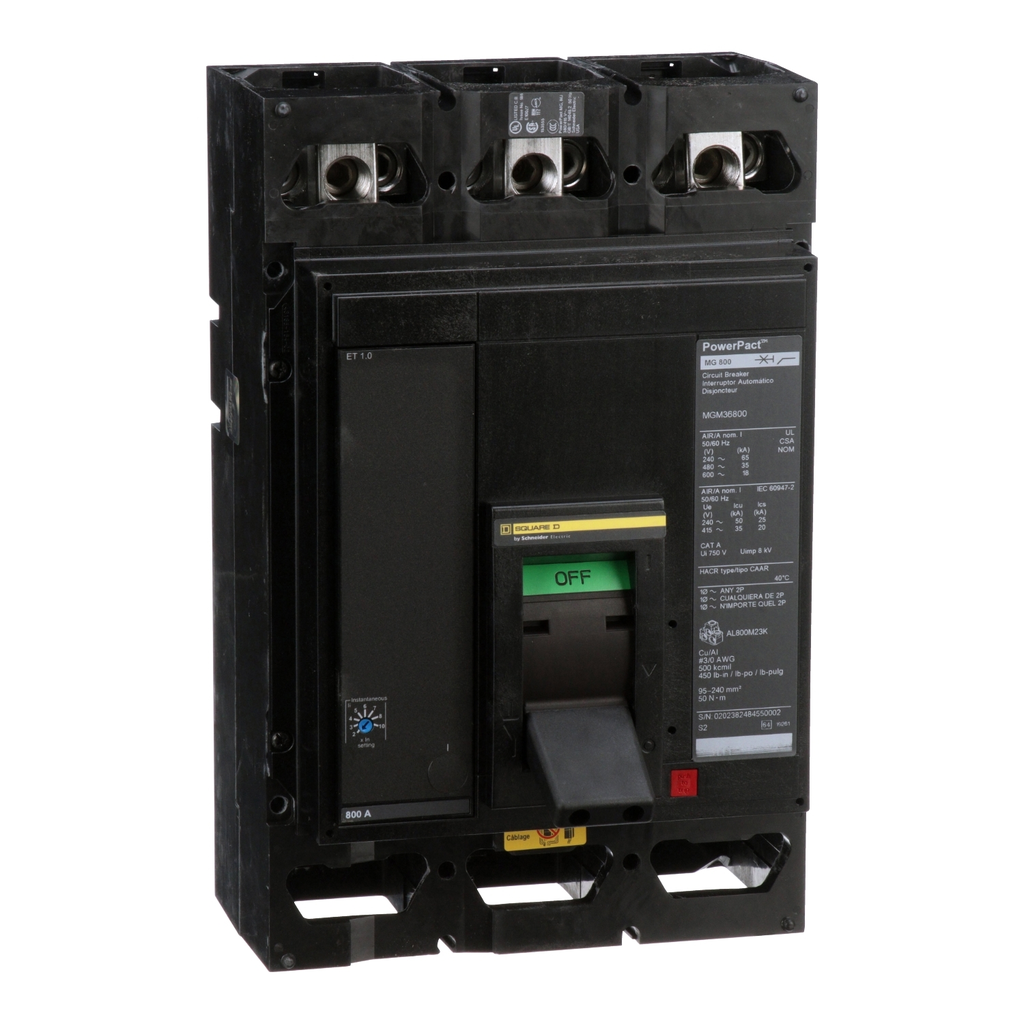

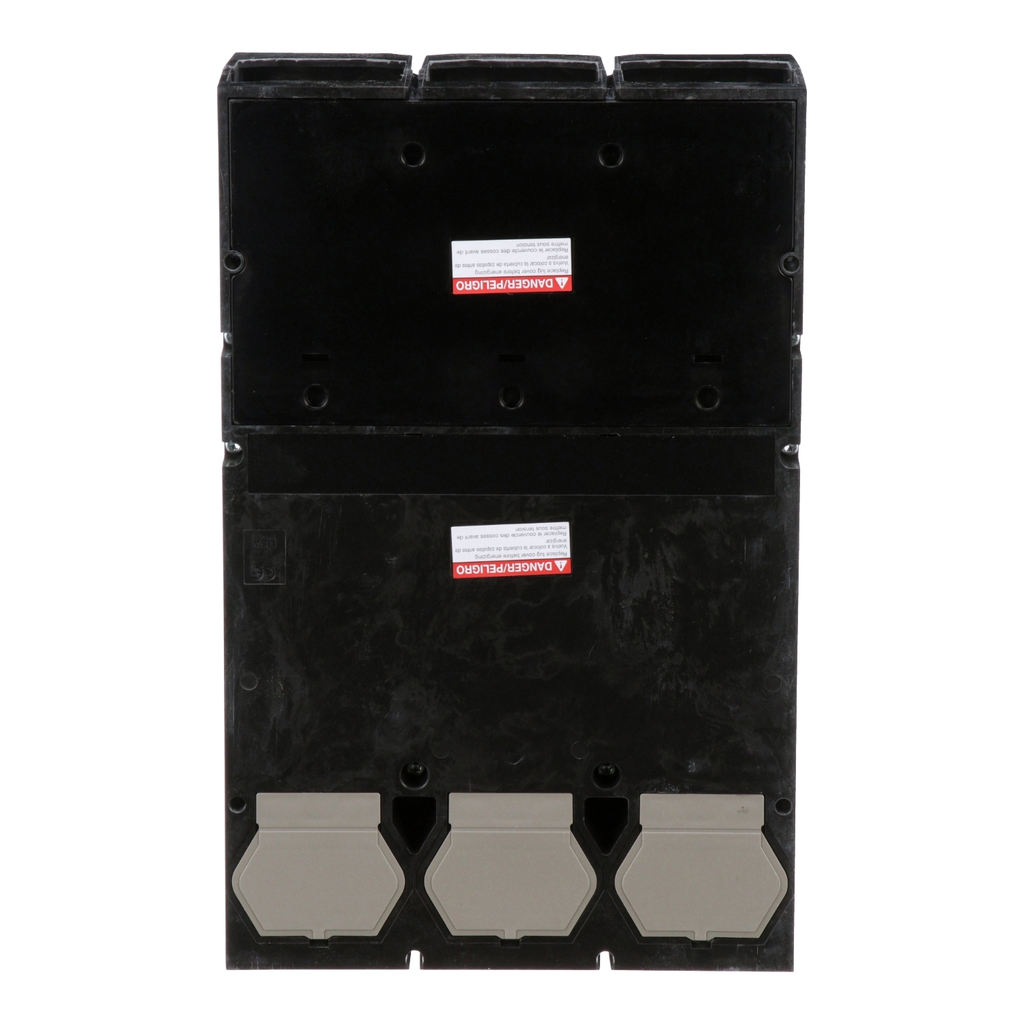

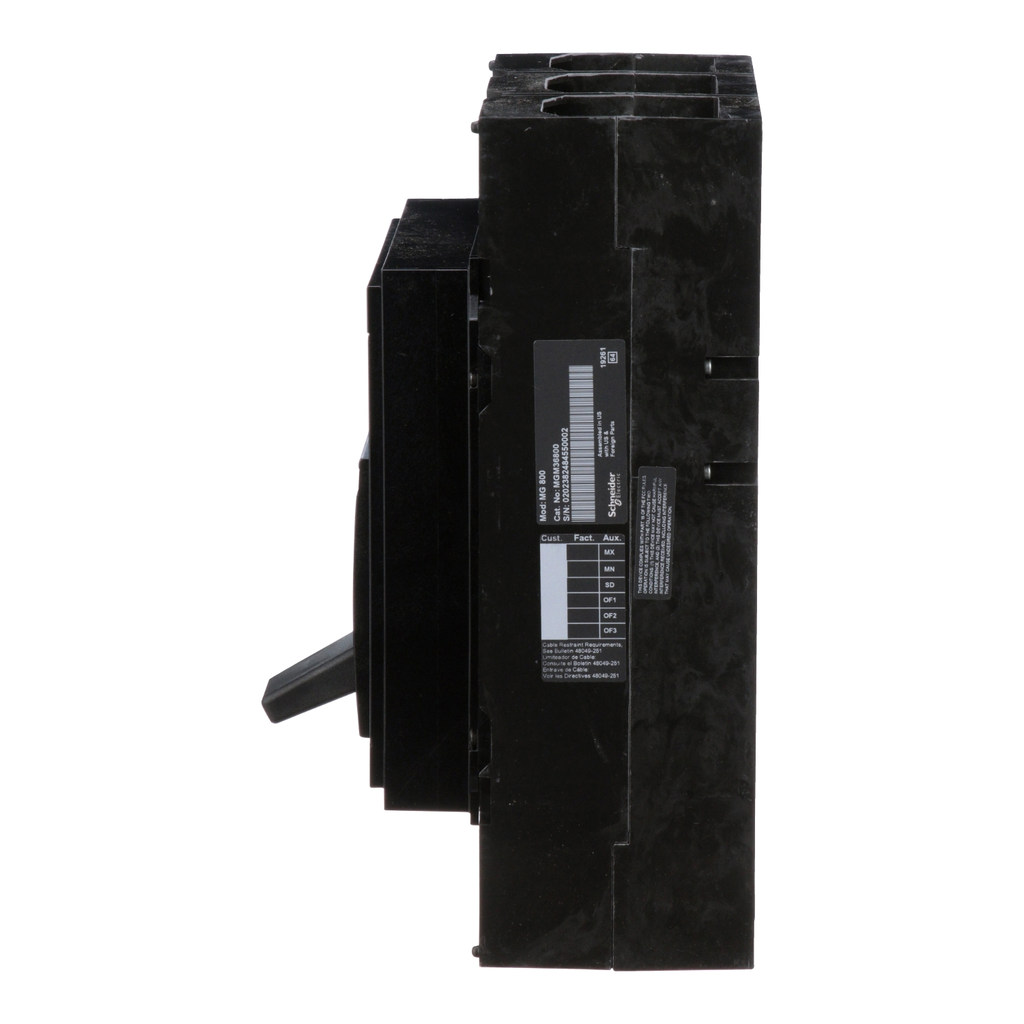

SQD MGM36800 Circuit breaker, Power

Manufacturer: Square-D / Schneider | Catalog # MGM36800 | Cooper Electric Part # 316606
$9,927.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on the line side and terminal nuts on the load side. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Technical Information

Actuator
ELECTRONIC
Amperage
800 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
M-Frame
Current
800 Amp
Frame
M-FRAME
Interrupt Rating
18, 35, 65 kAIC
Line Rated Current
800-800 A
Material
VARIOUS
Mounting Type
Unit Mount Lug)
Net Weight
29 lb
Number of Poles
3 Pole
Operating Temperature
40DEG CELSIUS
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
25 mm
TC Connection
LUGS (ON END) - TERMINAL NUT KIT (OFF END)
Trip Point
1600-8000 A
Trip Range
800 A
Trip Type
BASIC (ET1.0) FIXED LONG-TIME ADJUSTABLE INSTANTANEOUS TRIP
Type
Circuit breaker
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

12-Digit UPC
785901480396
Color
Black
Environmental Conditions
AMBIENT ENVIRONMENT
GTiN
00785901480396
Product UPC
78590148039
Weight
29 lb

Dimensions

Depth
8.05 Inch
Height
12.86 Inch
Length
25 mm
Warranty Length
18 mth
Width
8.27 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • AL800M23K
