Thomas & Betts F2027 18 to 17 AWG 0.492 Inch Red Electrotinned Copper Nylon Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F2027 | Cooper Electric Part # 316411
$43.75/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

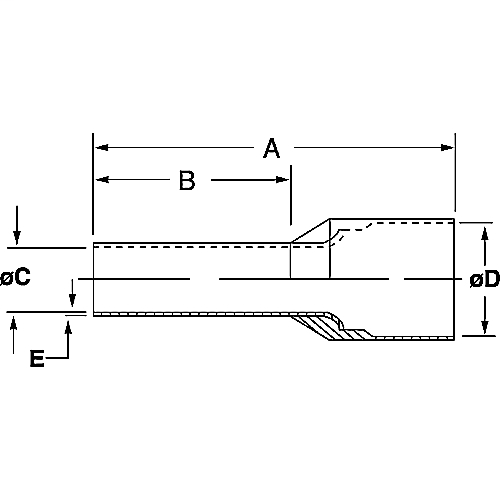

Polypropylene-Insulated Ferrule, Total Length .492 Inches/12.5mm, Pin Length .236 Inches/6mm, Pin Diameter .059 Inches/1.5mm, Base Diameter .118 Inches/3.0mm, Wire Range 18 AWG/1.00mm2, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
18-17 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.236 in
Temperature Rating
105 degrees C
Type
Standard
Voltage
300 VAC
Wire Size
18-17 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210339962
Color
Red
Finish
Tin Plated
GTiN
05415022204025
Product UPC
78621033996

Dimensions

Inside Diameter
0.059 in
Overall Length
0.492 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
