Thomas & Betts RA2257 Vinyl-Insulated Locking Fork Terminal - #22-16, #10bolt (1000/Box)

Manufacturer: ABB | Thomas & Betts | Catalog # RA2257 | Cooper Electric Part # 315378
$101.68/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

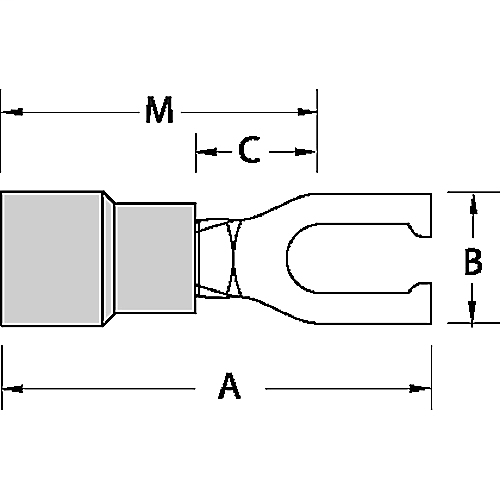

Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Piece

Technical Information

Conductor Size
22-16 AWG
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210817927
Color
Red
Finish
Electro Tin Plated
GTiN
00786210817927
Product UPC
78621081792
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
