Thomas & Betts B14-10FL 18 to 14 AWG #10 Stud Metallic Electrotinned Copper Non-Insulated Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B14-10FL | Cooper Electric Part # 315300
$161.65/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

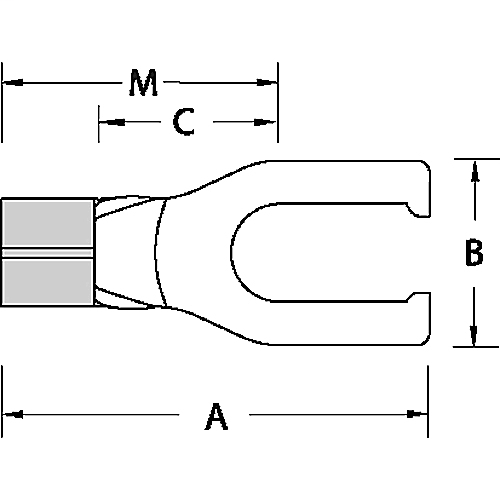

Non-Insulated Locking Fork Terminal, Length .75 Inches, Width .29 Inches, Bolt Hole #10, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#10
Temperature Rating
150 degrees C
Terminal Type
B
Type
Non-Insulated, Locking, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806716
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363935223
Product UPC
78621080671

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
