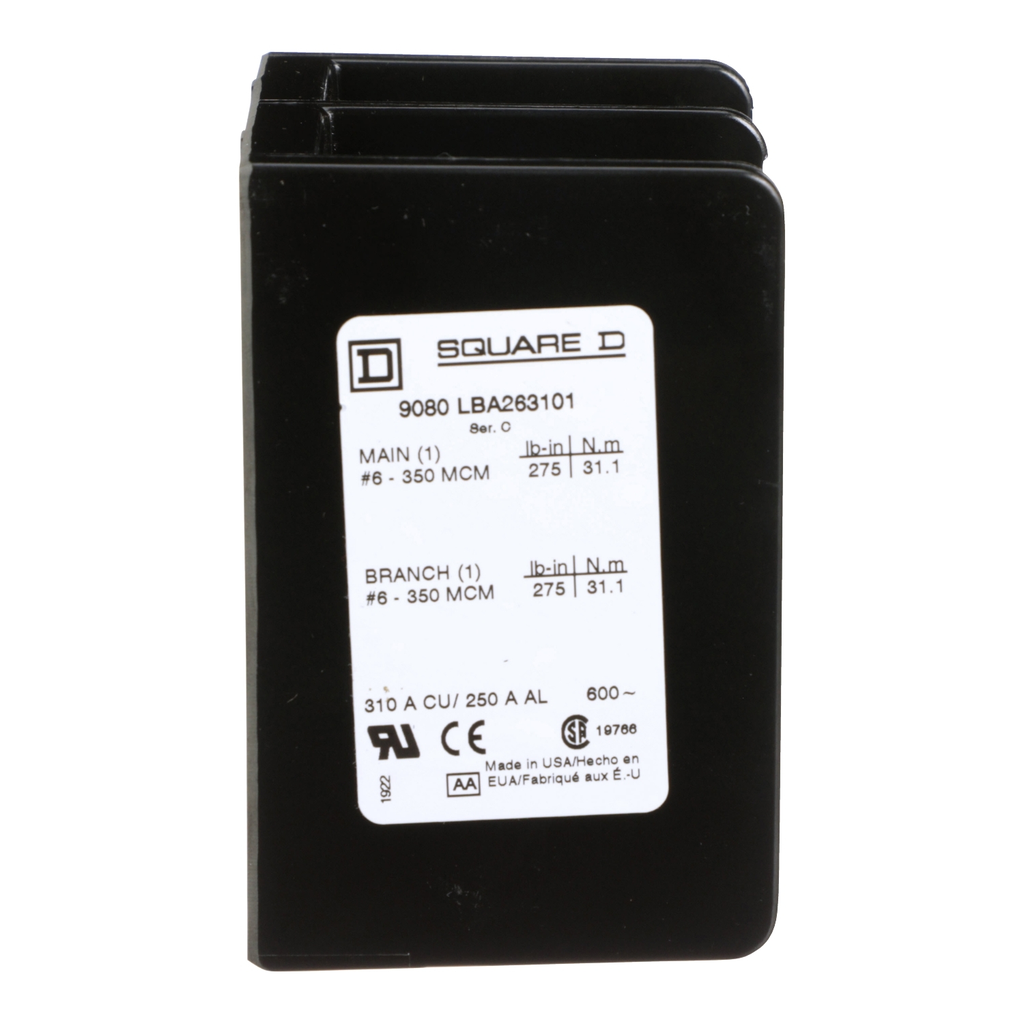

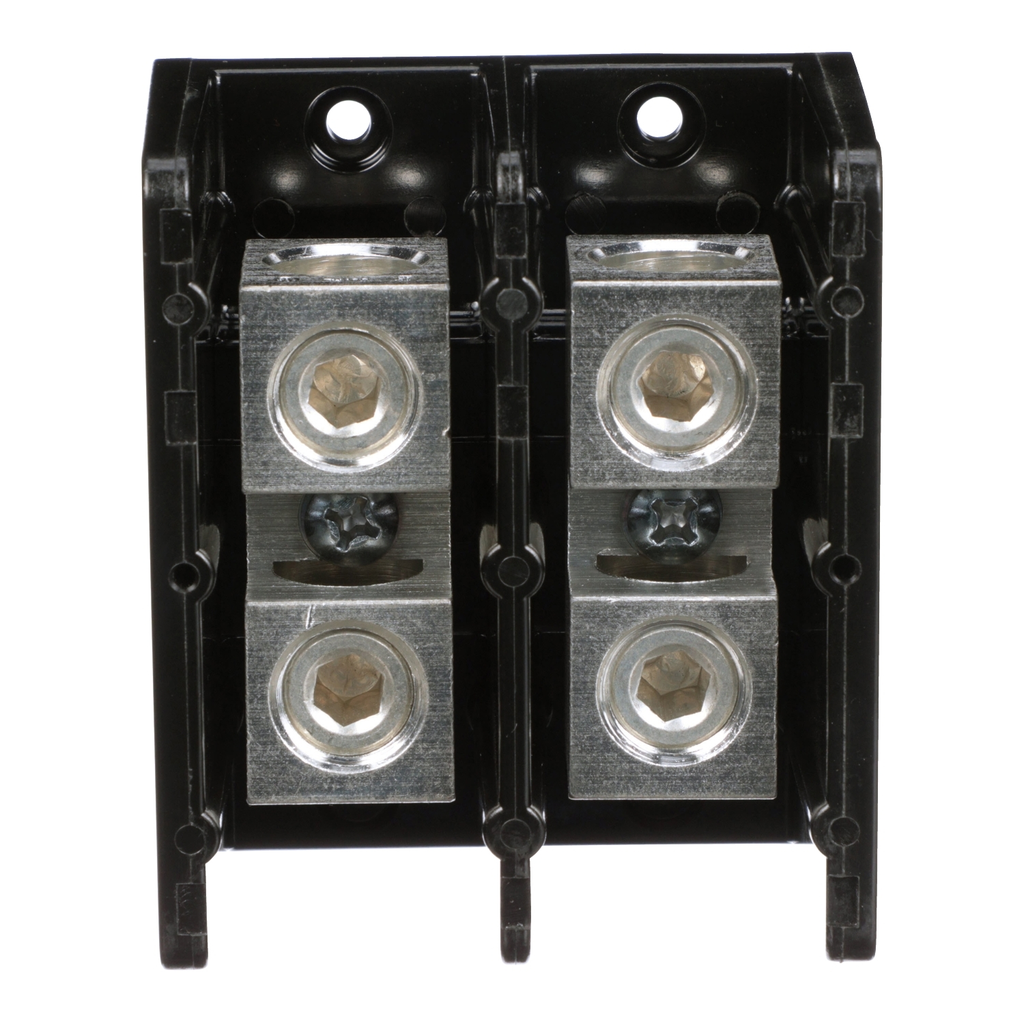

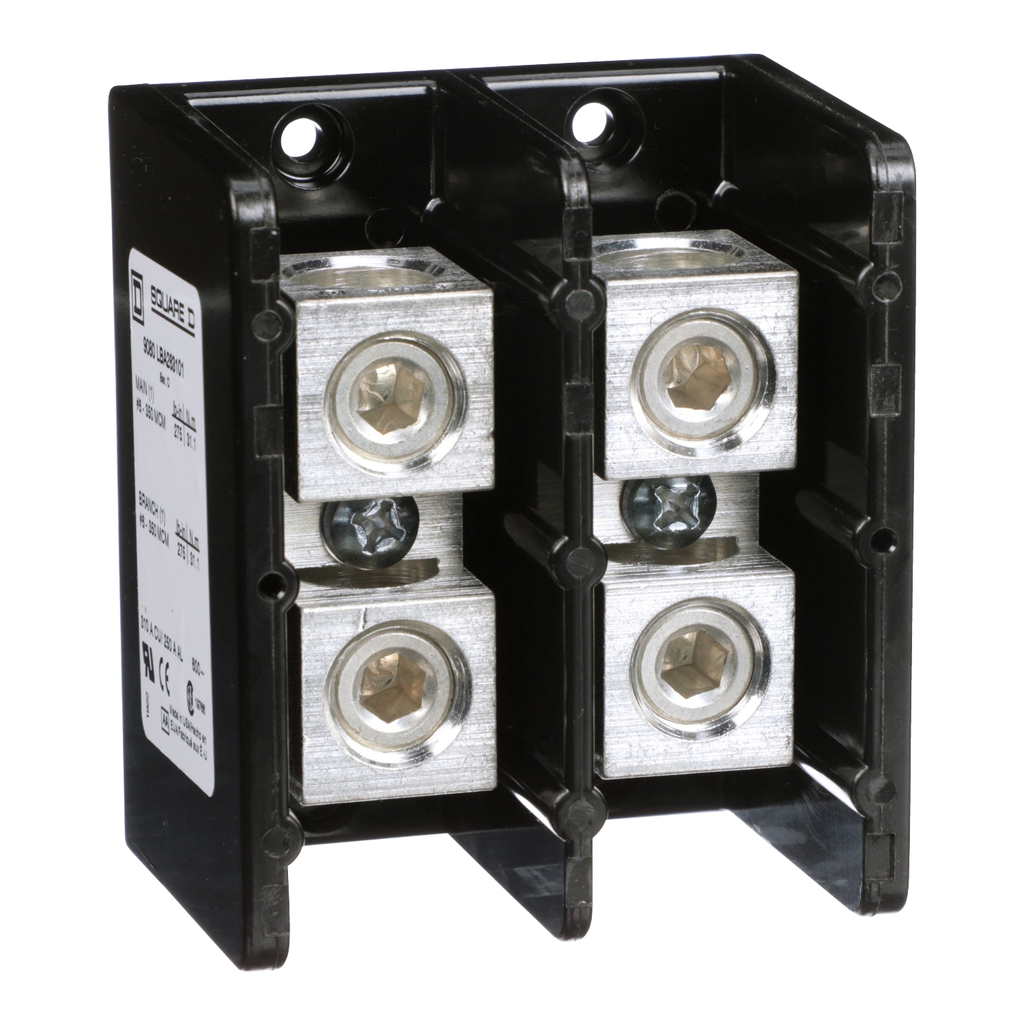

Square D 9080LBA263101 310 Amp 600 Volt 6 AWG to 350 MCM Primary Phenolic 2-Pole Standard Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBA263101 | Cooper Electric Part # 314877
$97.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The load side lug is rated to accept one #6 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 310 amperes with copper wire and 250 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
310-310 Amp COPPER-250-250 Amp ALUMINIUM
Applications
9080LB,9080LB32
Conductor Size
6 AWG-350 kcmil
Current
250 Amp
Line Rated Current
250-250 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Number of Poles
2 Pole
Number of Terminations
1
Operating Temperature
-40-302 degrees F
Range
9080LB
Size
1.94 IN,2.61 IN,3.38 IN
Strip Length
1.06 in
TC Connection
LINE LUG 275 LBF.IN AWG 6...350 KCMIL COPPER OR ALUMINIUM-LOAD LUG 275 LBF.IN AWG 6...350 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB32,POWER DISTRIBUTION BLOCK
Voltage
600 Volt
Wire Size
Line 1, AWG 6...350 kcmil, copper or aluminium;Load 1, AWG 6...350 kcmil, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901156987
GTiN
00785901156987
Product UPC
78590115698

Dimensions

Depth
2.61 Inch
Height
3.38 Inch
Warranty Length
18 mth
Width
1.94 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080LB32
