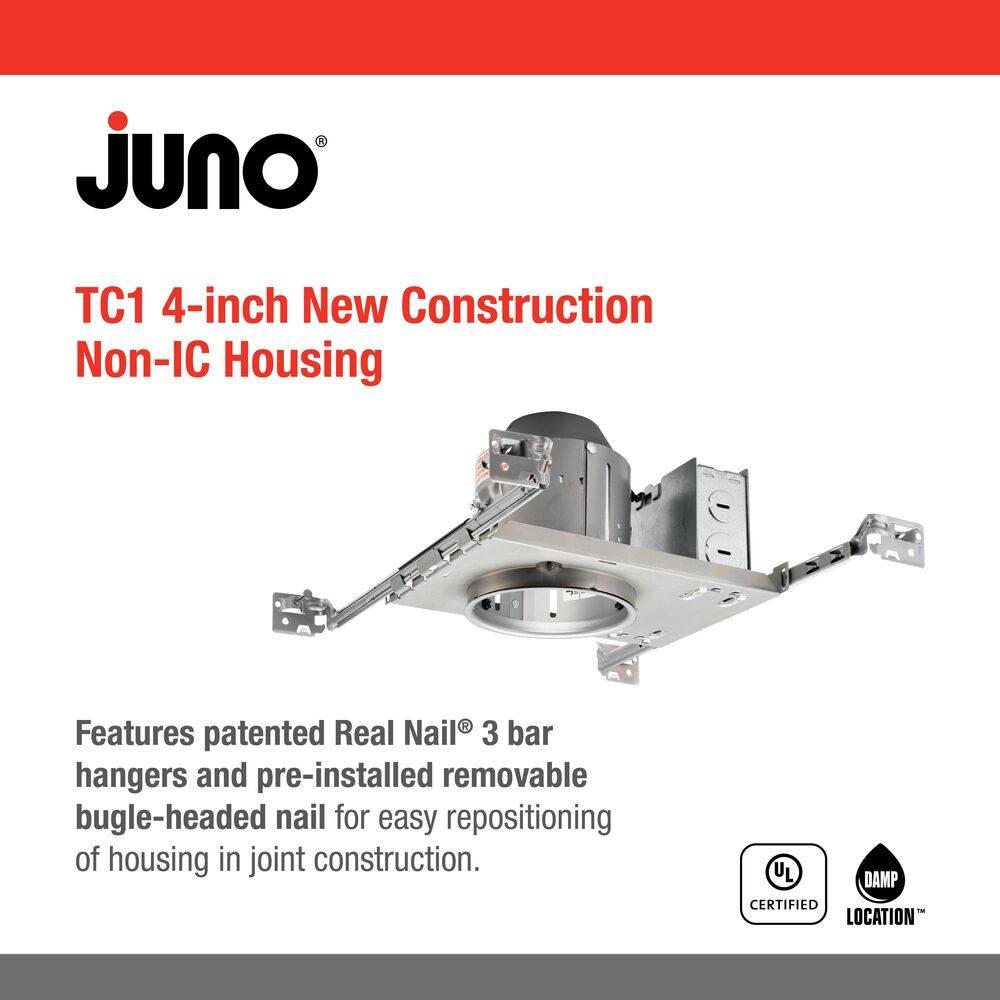

4" Incandescent New Construction Non-IC Housing

Manufacturer: Juno Lighting | Catalog # TC1 | Cooper Electric Part # 3142
$36.54/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
15 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
Product Spec Sheet
The non-IC housing is designed for use in non-insulated areas or where insulation is spaced at least 3 inches from the housing.

Technical Information

Aperture Size
4 in
Applications
Residential
Lamp Type
Incandescent
Lamp Wattage
100 W
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Type
Housing
Voltage
120 Volt

Manufacturer Information

Brand
Acuity Brands Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
661209700193
Color
Unfinished
Construction
New Construction
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
GTiN
00661209700193
Housing Material
Steel
Product UPC
66120970019
Shape
Round
Weight
2.3 lb

Dimensions

Height
5-3/8 Inch
Length
12-1/8 Inch
Width
13.5 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • If installed where insulation is present, the insulation must be pulled back 3 from all sides of the TC housing.
  • RECOMMENDED LAMPS: TC1: R14/R16/R20/PAR16/PAR20
  • INCLUDES: Housings include medium base porcelain socket with nickel-plated copper screw shell
  • LISTINGS: UL Listed, CSA certified to US and Canadian standards, listed for damp locations
  • VOLTAGE: Standard 120 volts used in most residential applications
  • BAFFLE: Trim options include 4\" baffles, all in white finish
  • DESIGN FEATURE: Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs
  • FEATURE: The IC1 is suitable to use for damp locations
  • WARRANTY: 1-year limited warranty

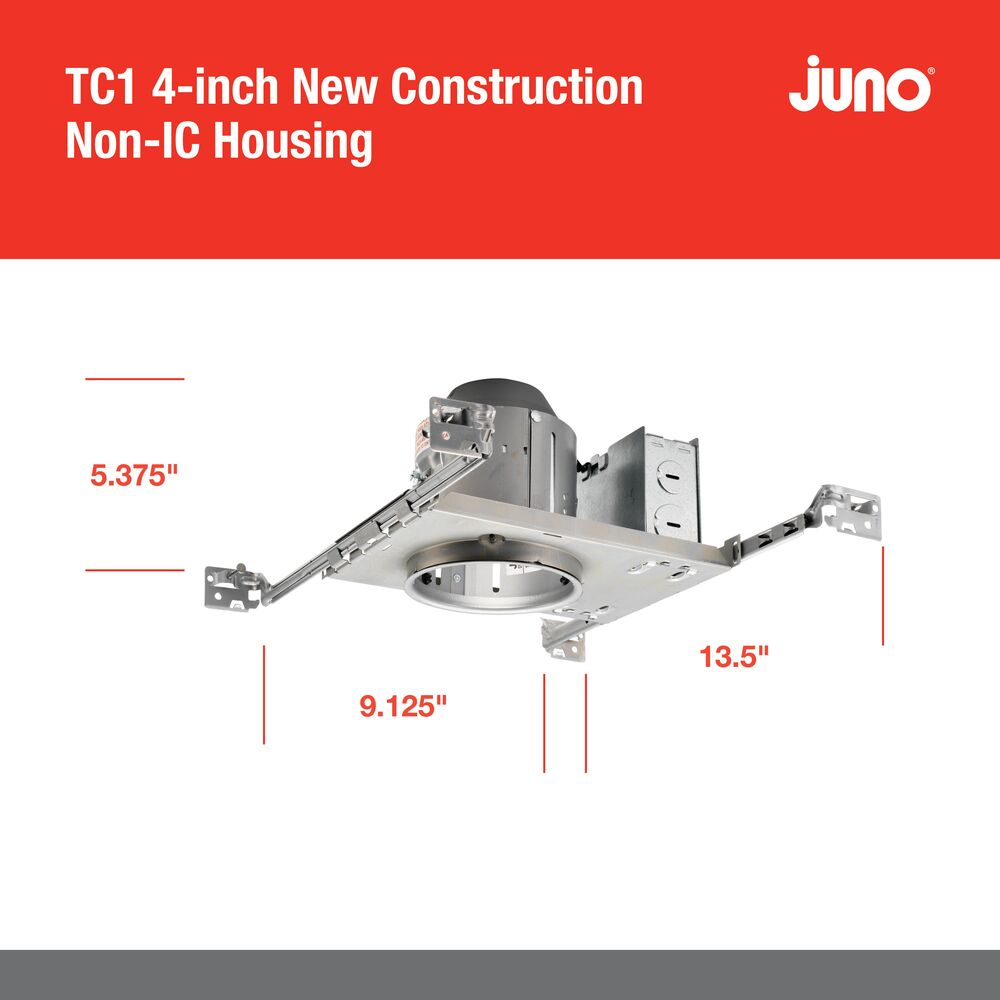

  • DIMENSIONS: Height 5 3/8-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in.
Applications
  • Residential
Standards
  • CSA
  • UL
