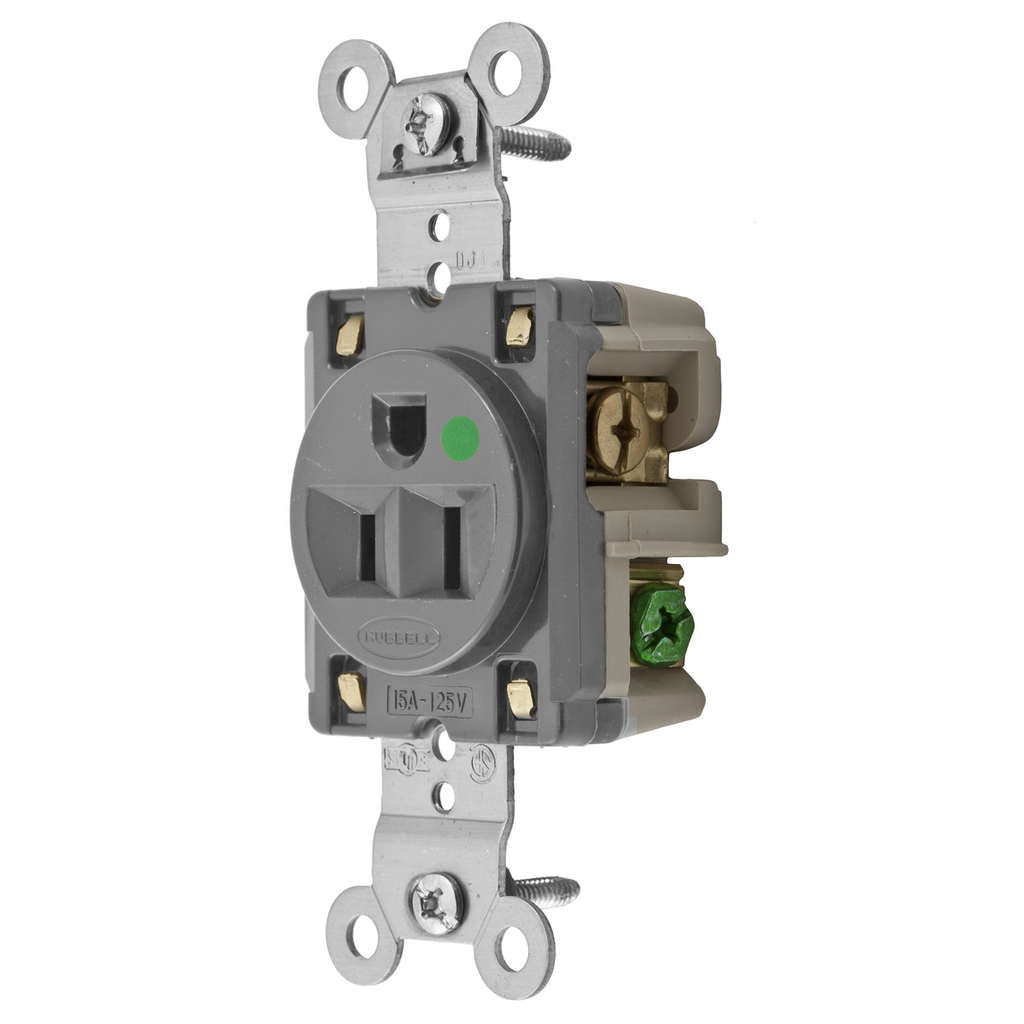

Product image for Hubbell HBL8210GY SGL Receptacle, HG, 15A 125V, 5-15R, GY
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL8210GY SGL Receptacle, HG, 15A 125V, 5-15R, GY

Manufacturer: Hubbell Wiring Device | Catalog # HBL8210GY | Cooper Electric Part # 311344
$70.96/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Hospital Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Single Key Access
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 horse power

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585016221
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585016221
Product Series
Hospital Grade
Product UPC
78358501622
Weight
0.2 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • One-piece nickel-plated brass integral ground strap
  • Patented bypass contact design
  • Self Grounding
