3M 7100175071 905-POUCH Scotchlok Electrical Insulation Displacement Connectors (IDC), Double Run or Tap, Red, 22-18 AWG (Tap), 18-14 AWG (Run) (50ea/pouch - 500ea/case)

Manufacturer: 3M | Catalog # 7100175071 | Cooper Electric Part # 31131
$42.71 /ea
bg
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure Product Catalog Page

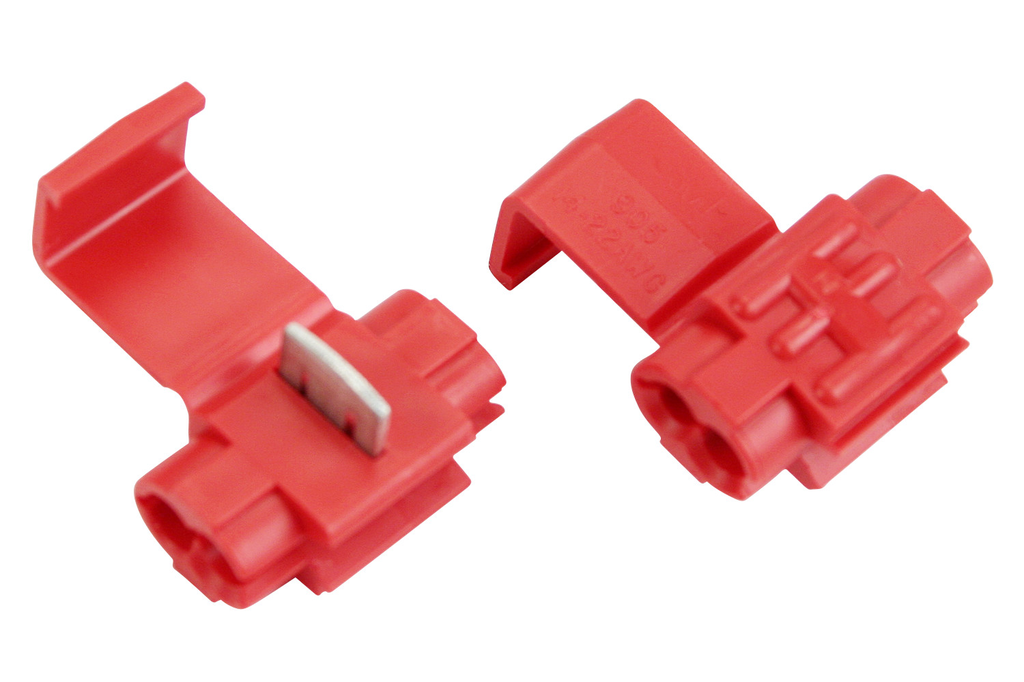

3M™ Scotchlok™ Insulation Displacement Connector 905 is a double run or tap connector that can connect two wires in a tap, inline, pigtail or double run installation while insulating the connection. This connector is ideal for low voltage accessories and electronics.

Technical Information

Conductor Size
22-18 AWG/18-14 AWG
Connection Type
Double Run Or Tap
Material
Plastic
Max Operating Temperature
194.0 degrees F
Temperature Rating
194 F
Type
Insulation Displacement
Voltage
32 Volt
Wire Size
22-18 AWG (Tap) 18-14 AWG (Run)

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007061281
Color
Red
GTiN
00054007061281
Product Type
Double Run Or Tap
Product UPC
05400706128

Certifications and Compliance

Country of Origin
USA
Features
  • Red, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Suitable for use in light fixtures, appliances and other electrical OEM applications
  • 951 accommodates 22 to 18 AWG solid/stranded, 952 accommodates 18 to 14 AWG solid/stranded and 953 accommodates 12 AWG solid/stranded
  • Connector rated 32 volts maximum
  • Temperature rated 90?C maximum

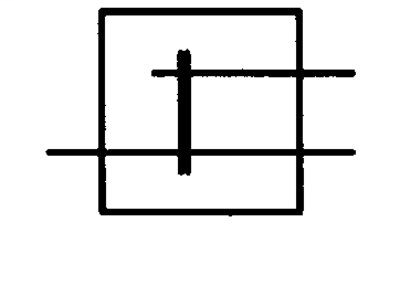

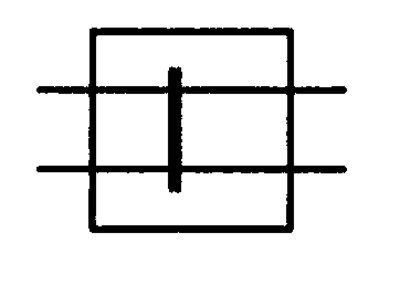

  • Use Part No. 905 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection.
