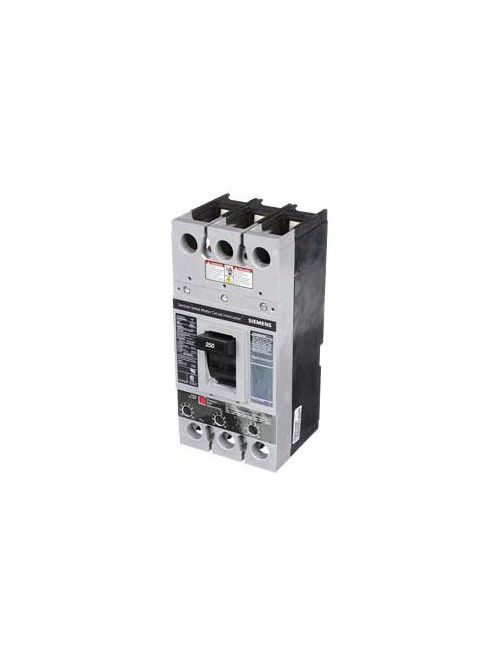

Product image for Siemens FXD63S250AL 3-Pole 250 Amp 600 VAC 22 kA Molded Case Switch
Email

Siemens FXD63S250AL 3-Pole 250 Amp 600 VAC 22 kA Molded Case Switch

Manufacturer: Siemens | Catalog # FXD63S250AL | Cooper Electric Part # 311217
$1,572.01/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC ONLY TRIPUNIT. ASSEMBLED MOLDED CASE SWITCH (BREAKER) FD FRAME WITH STANDARD BREAKING CAPACITY. 250A 3-POLE 600V 3200A SELF-PROTECTIVE INSTANTANEOUS OVERRIDE. NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.

Technical Information

Actuator
Varying
Amperage
250 Amp
Applications
Molded Case Switch
Connection Type
Line/Load Lugs Installed
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
Line/Load lugs installed
Trip Range
3200
Trip Type
Thermal-Magnetic
Type
FXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643236103
GTiN
00783643236103
Product UPC
78364323610

Dimensions

Height
11 Inch
Length
7
Width
6.000
