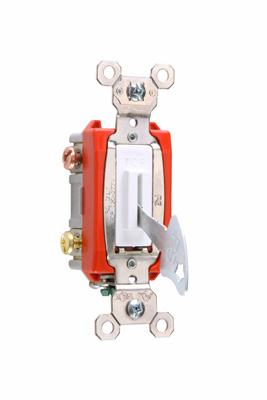

Pass & Seymour PS20AC2-IL 2pole Lock Switch, Back & Side Wire, 20A 120/277V - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # PS20AC2IL | Cooper Electric Part # 310348
$25.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
2pole Lock Switch, Back & Side Wire, 20amp 120/277volt, White (Key can be removed in both positions)

Technical Information

Amperage
20 Amp
Applications
Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Number of Poles
2 Pole
Size
3.3"
Type
Lock Key
Voltage
120 Volt
Wattage
2 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007266740
Color
Ivory
Finish
Matte
GTiN
00785007266740
Product UPC
78500726674
UNSPSC
39121507

Dimensions

Depth
1.09 Inch
Height
4.195 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • Federal Spec Listed
  • cULus Listed
