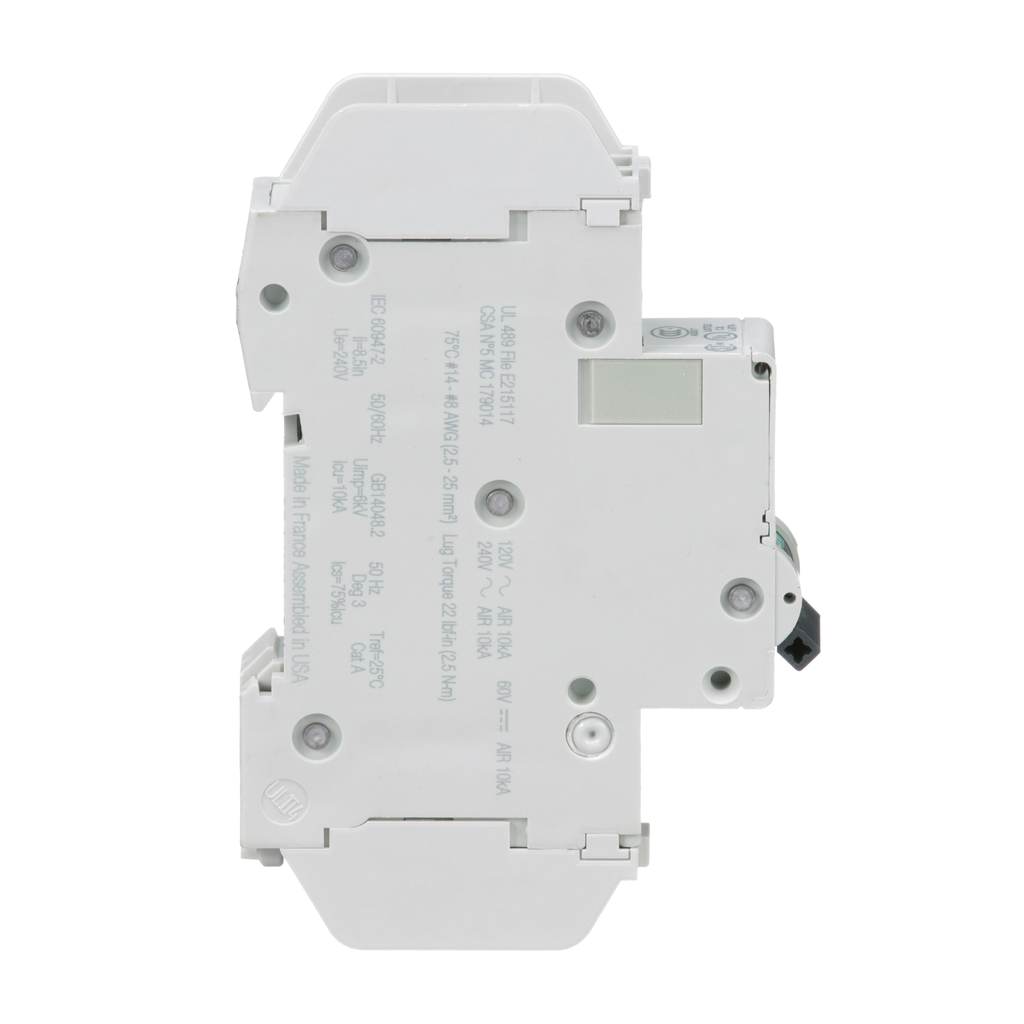

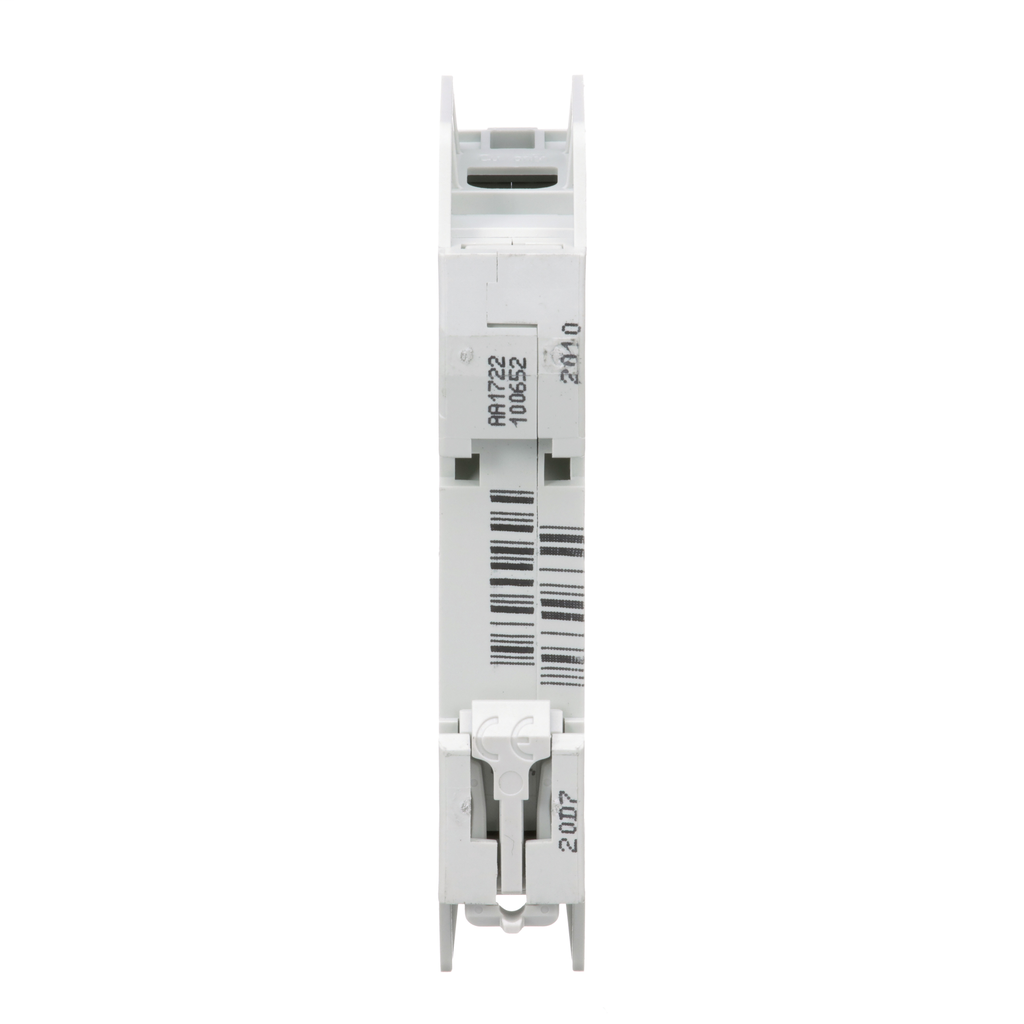

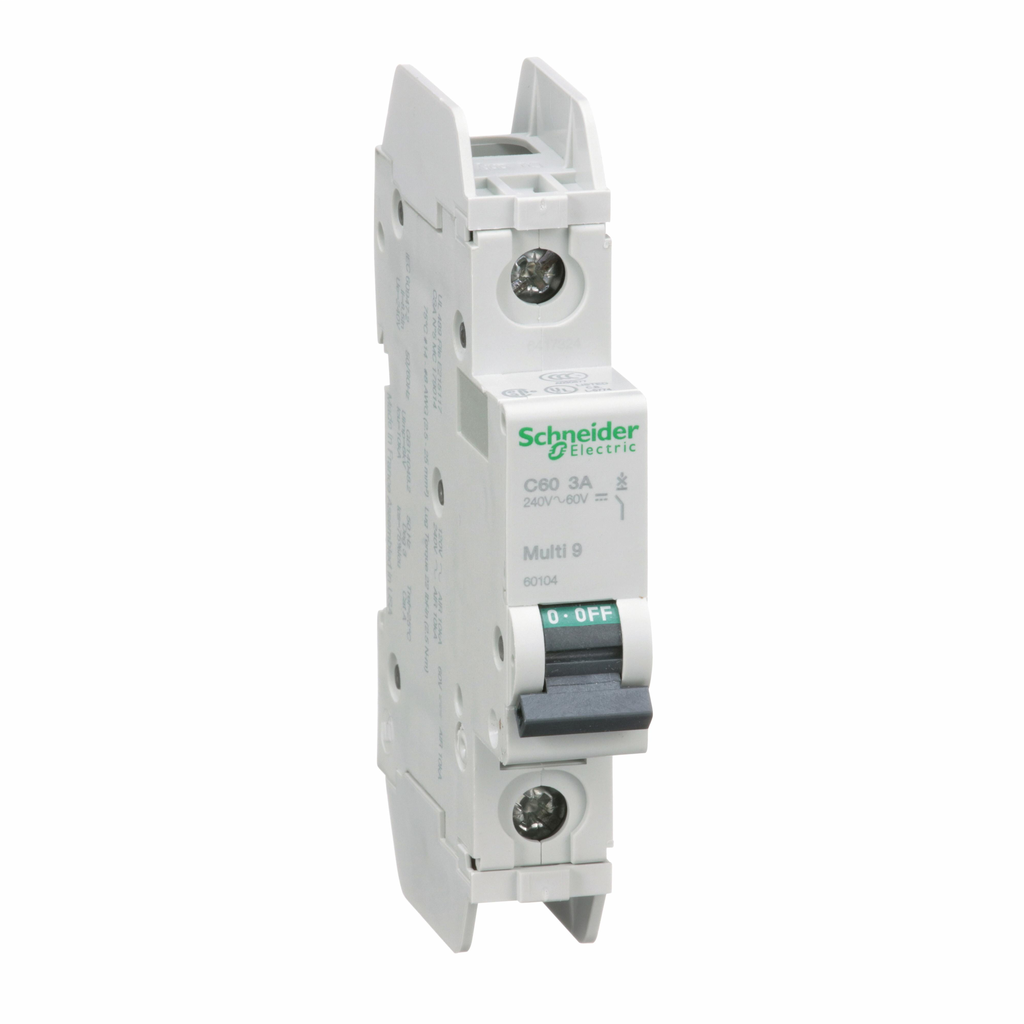

Square D 60104 120 Volt 3 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # 60104 | Cooper Electric Part # 309705
$125.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
Multi 9 is a range of DIN rail modular devices that offers great performance. Multi 9 products are dedicated to equipment manufacturers. They meet all global standards for industry applications. Designed to meet your needs for all types of machines, it provides protection, signaling functions, and accessories. This Multi 9 miniature circuit breaker is rated at 3 A , 120 V, and 1 pole. It has a C Curve rating, breaking capacity of 10 kA, and tunnel terminals.

Technical Information

Actuator
TOGGLE
Amperage
3 Amp
Applications
DISTRIBUTION
Enclosure
IP40 (CASE) - IP20 (TERMINALS)
Interrupt Rating
5, 10 kAIC
Mounting Type
Clip-On
Number of Poles
1 Pole
Operating Temperature
-30-70 Adegrees C
Standard
CSA C22.2 No 5,EN/IEC 60947-2,GB 14048.2,UL 489
Strip Length
0.55 in
TC Connection
TUNNEL TYPE TERMINAL TOP OR BOTTOM) 2.5-25 MMA AWG 14...AWG 4) - RIGID
Trip Range
7 TO 10 TIMES AMPERE RATING
Trip Type
THERMAL-MAGNETIC
Type
MINIATURE CIRCUIT-BREAKER
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
C60 UL489,MULTI 9 C60

General Product Info

12-Digit UPC
785901409694
Color
Gray
GTiN
00785901409694
Product UPC
78590140969
Weight
0.24 lb

Dimensions

Depth
2.87 Inch
Height
4.21 Inch
Length
73 mm
Warranty Length
18 mth
Width
0.71 in

Certifications and Compliance

Certifications
CCC,CSA,IEC,UL
Country of Origin
France
