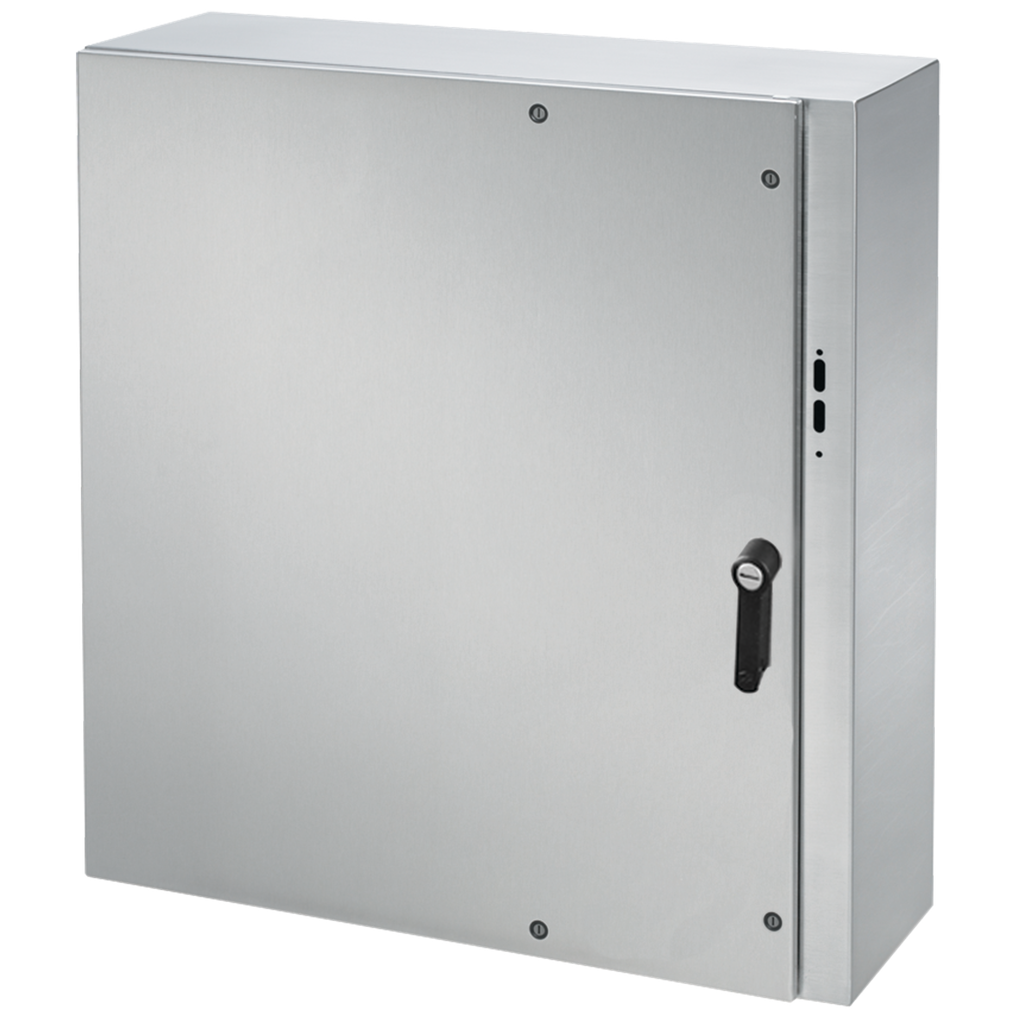

Product image for Hoffman CDSC423212SSR CONCEPT with Quarter-Turn Latches Disconnect Enclosure, Type 4X, 42" x 32" x 12", SS Type 304
Email

Hoffman CDSC423212SSR CONCEPT with Quarter-Turn Latches Disconnect Enclosure, Type 4X, 42" x 32" x 12", SS Type 304

Manufacturer: Hoffman | Catalog # CDSC423212SSR | Cooper Electric Part # 308989
$6,928.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
For use in disconnect applications that require larger controls , Concept Disconnect Enclosures feature two additional quarter-turn latches and a door-alignment device for secure closure and security.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Corrosive Environments, Indoor
Cover Type
1 - 3 Point Latch
Door Gauge
14
Gauge
14 ga Door
IP Rating
66
Latches Style
1 - 3-point
Material
Stainless Steel
Mounting Type
Wall
Size
42.00x31.95x12.00 inch
Standard
12,13,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meet,Mounting Brackets Required To Meet UL/cUL External Mounting Requirement.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Type
Single Door, Single Lock, Dust-Resistant

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510148164
Color
Stainless Steel
Finish
Brushed Powder Coated
GTiN
00783510148164
Product UPC
78351014816
Weight
106 lb

Dimensions

Depth
305 mm
Height
1067 mm
Length
46-3/4 Inch
Thickness
1.98 mm
Width
813 mm
Features
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange
  • Integral door alignment device to properly align door and gasket to body flange
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Standard full-access door opening
  • Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Seamless foam-in-place gasket
  • Door latching system: latch installed on door with interlock mechanism on the disconnect handle for added safety; four quarter-turn latches also included
  • Adjustable door interlock bracket fastened to door
  • Unique integrated door handle with tool-to-open feature and padlock option installed on
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
