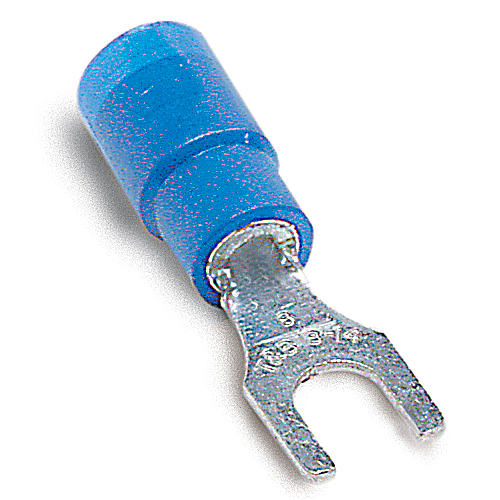

Product image for Thomas & Betts 14RB-10FX #10 Bolt Hole 18-14 AWG Wire Range Expanded Insulated Vinyl Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts 14RB-10FX #10 Bolt Hole 18-14 AWG Wire Range Expanded Insulated Vinyl Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 14RB-10FX | Cooper Electric Part # 308816
$291.27/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Expanded Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800714
Color
Blue
Finish
Tin Plated
GTiN
05414363935667
Product UPC
78621080071
Used With
Round Conductors

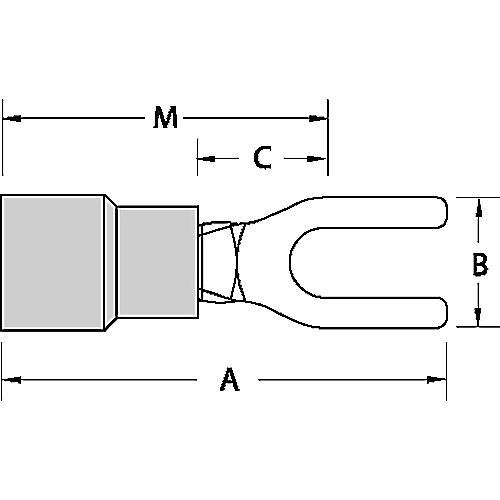

Dimensions

Height
8.7 Inch
Thickness
.03 in
Width
9.3 in
Certifications
  • CSA
  • UL
Features
  • Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
