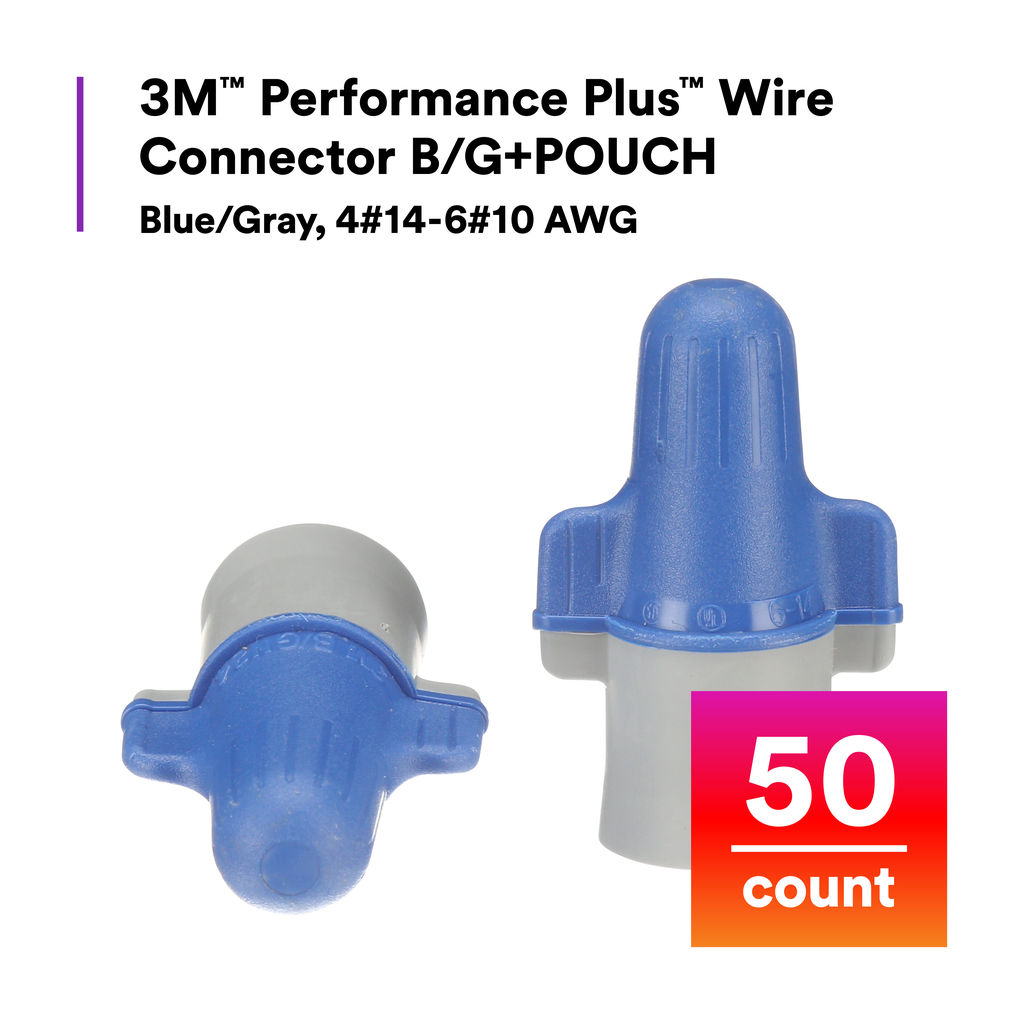

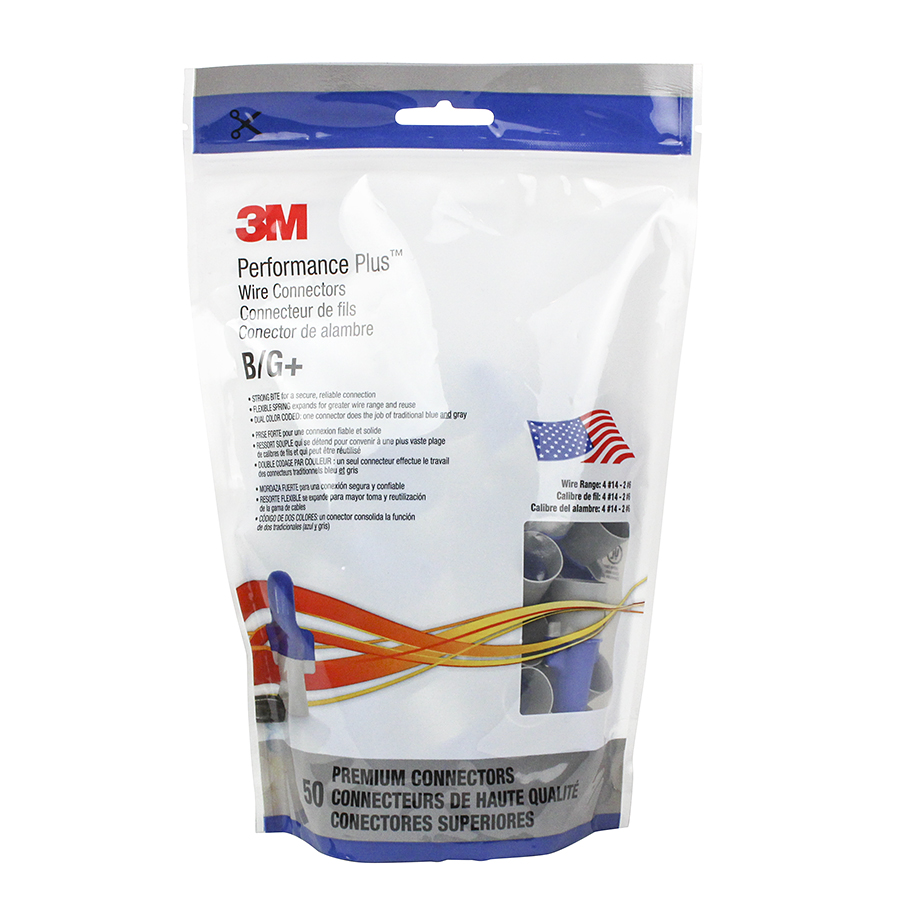

3M 7100127167 3M™ Performance Plus™

Manufacturer: 3M | Catalog # 7100127167 | Cooper Electric Part # 30856
$1.13/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
50 available

For Pick Up

at Ocean Opens Friday 8:00am ET
6,650 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
The 3M™ Performance Plus™ Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with minimal effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires.

Technical Information

Applications
For All Kinds of Jobs From Industrial and Residential Construction, to Automotive, Marine and Appliance Applications
Conductor Size
14-6 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
105.0 degrees C
Temperature Rating
105 degrees C
Type
Flame Retardant
Voltage
750 Volt

Manufacturer Information

Brand
3M
Sub Brand
Performance Plus™

General Product Info

12-Digit UPC
054007431503
Color
Blue/Gray
GTiN
10054007431500
Product Type
Connector
Product UPC
05400743150

Dimensions

Diameter
1.12 Inch
Length
1.79 Inch

Certifications and Compliance

Country of Origin
USA
Features

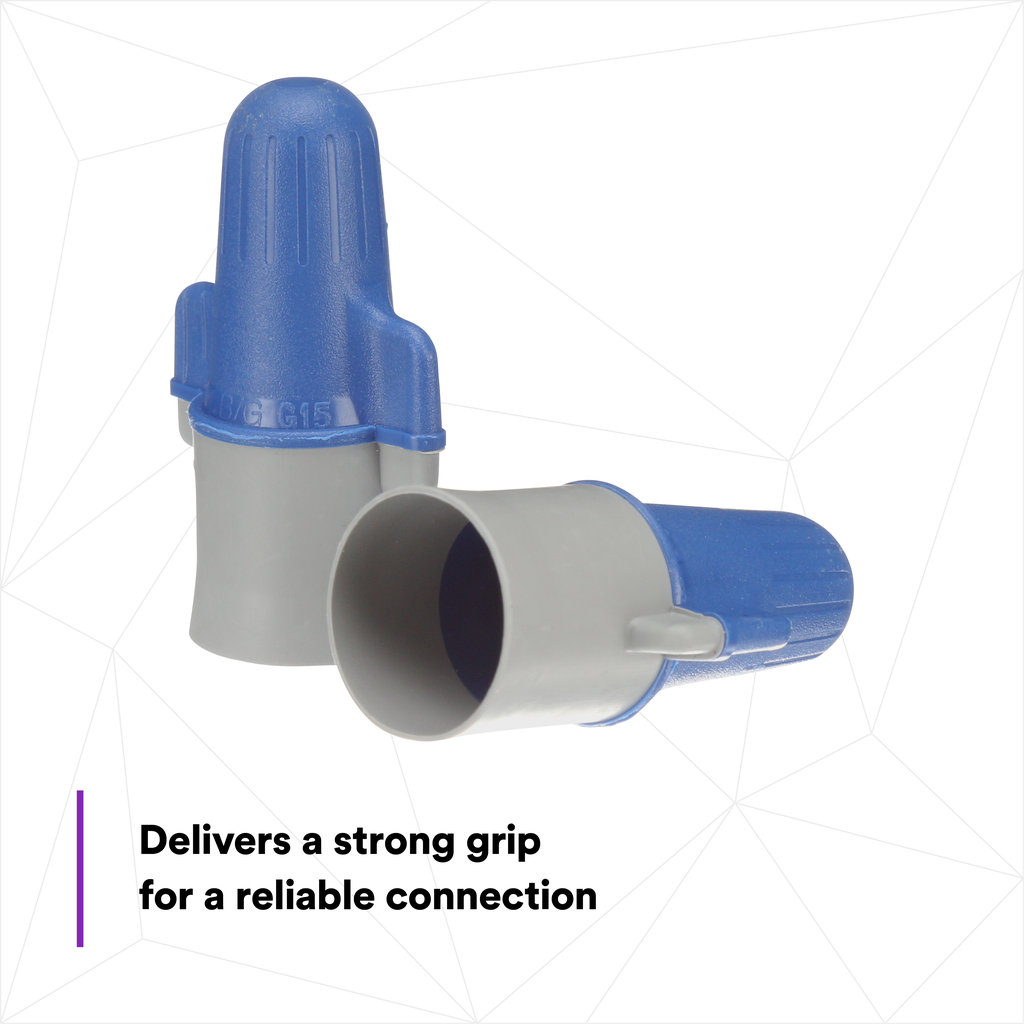

  • STRONG BITING SPRING: for a secure, reliable and long-lasting connection in all your pigtail applications
  • UNIQUELY FLEXIBLE SPRING that has generous room for expansion into greater wire range and reuse
  • DUAL COLOR CODED BLUE/GRAY: one connector does the job of two traditional connectors in the majority of applications
  • UL LISTED for 600 volts on with copper wire only and 1000 volts maximum in signs and lighting fixtures (luminaries)
  • WIRE RANGE: 14-6 AWG for solid and/or stranded copper conductors
  • FLEXIBLE SKIRT helps prevent copper exposure for enhanced safety
