Blackburn PAA129 Parallel Groove Clamp

Manufacturer: Blackburn / Thomas & Betts | Catalog # PAA129 | Cooper Electric Part # 308087
$55.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 4/0-2 ASCR 4/0 Str.-2 Sol. AL/CU, Tap: 4/0-2 ASCR 4/0 Str.-2 Sol. ALCU, Prefilled with Oxide Inhibitor.

Technical Information

Applications
Securing Conductors
Bolt Size
3/4 x 1/2 in
Connection Type
Bolted
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size

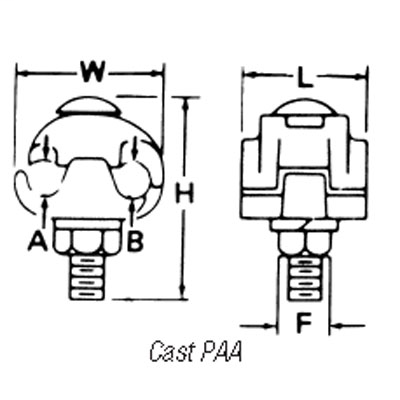

Bolt Head 3/4 inch, Bolt Size 1/2 inch, Height 2-1/4 X Length 2 X Width 2 inch
TC Connection
Bolted
Type
Bolted

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786330126
GTiN
05415022349092
Product UPC
78378633012
Features
  • Clamps are high-strength, heat treated cast aluminum alloy. Galvanized-steel carriage bolt, nut and lockwasher standard. Order prefilled with oxide inhibitor for use on copper to aluminum.
Notes
  • One-bolt clamp.
  • To order with hex head bolts, add suffix -3.
