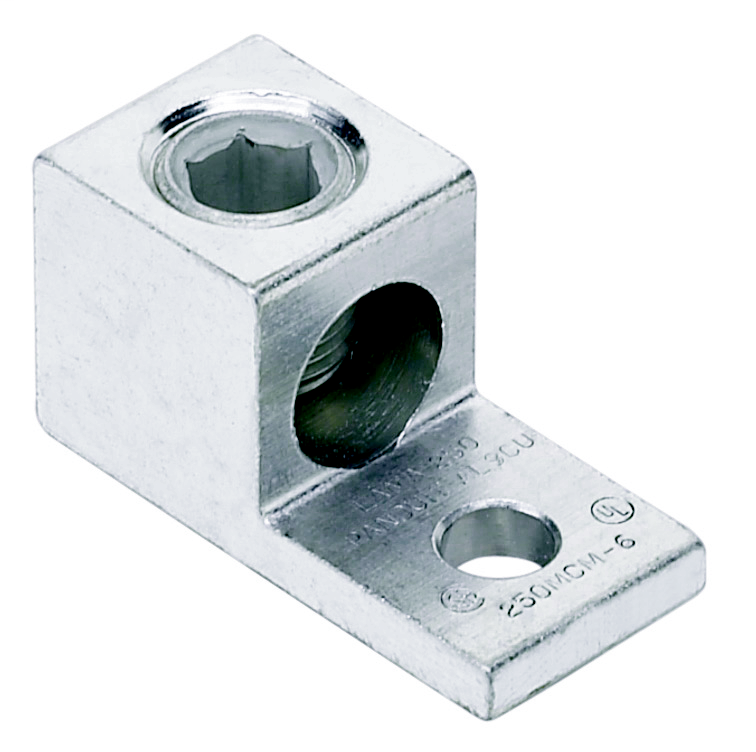

Product image for Panduit LAMA6-14-QY 1-Hole 1 Barrel Aluminum Mechanical Lug
Image thumbnail 0

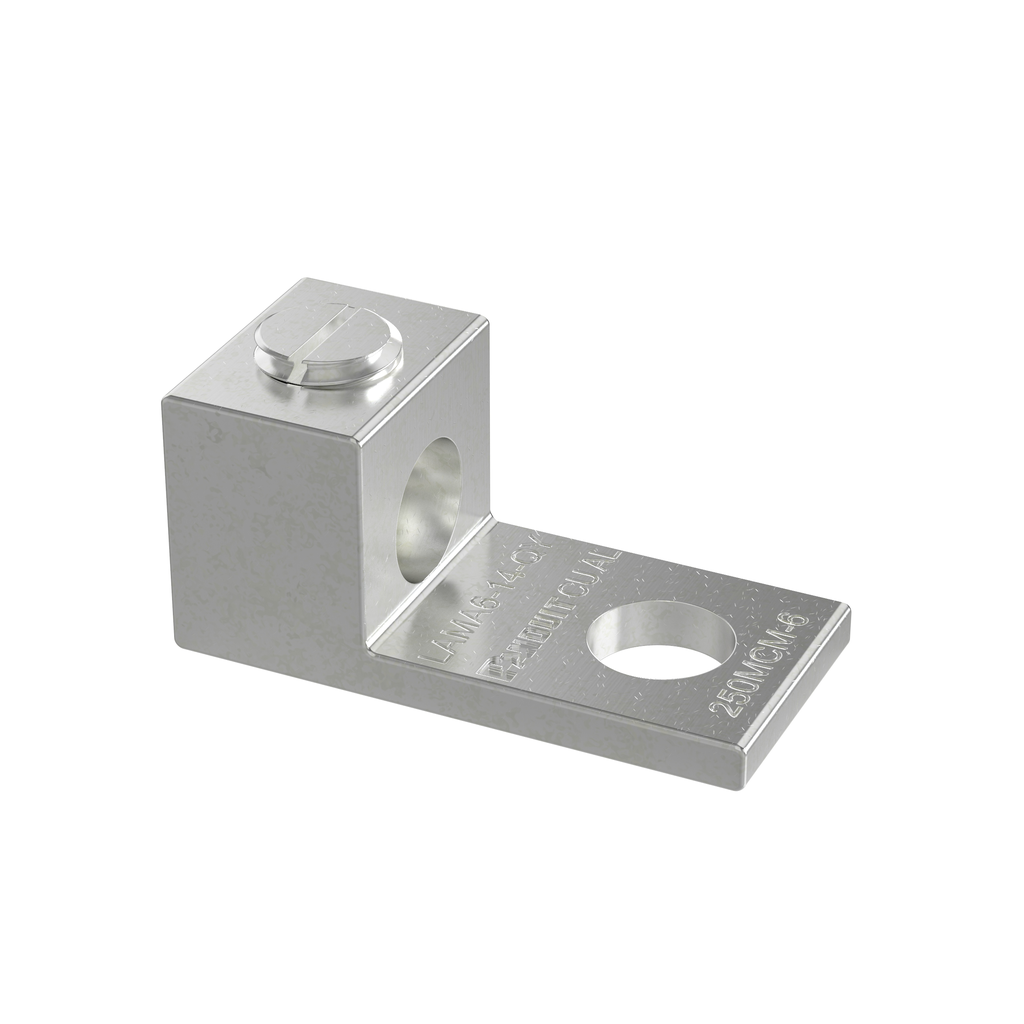

Image thumbnail 1

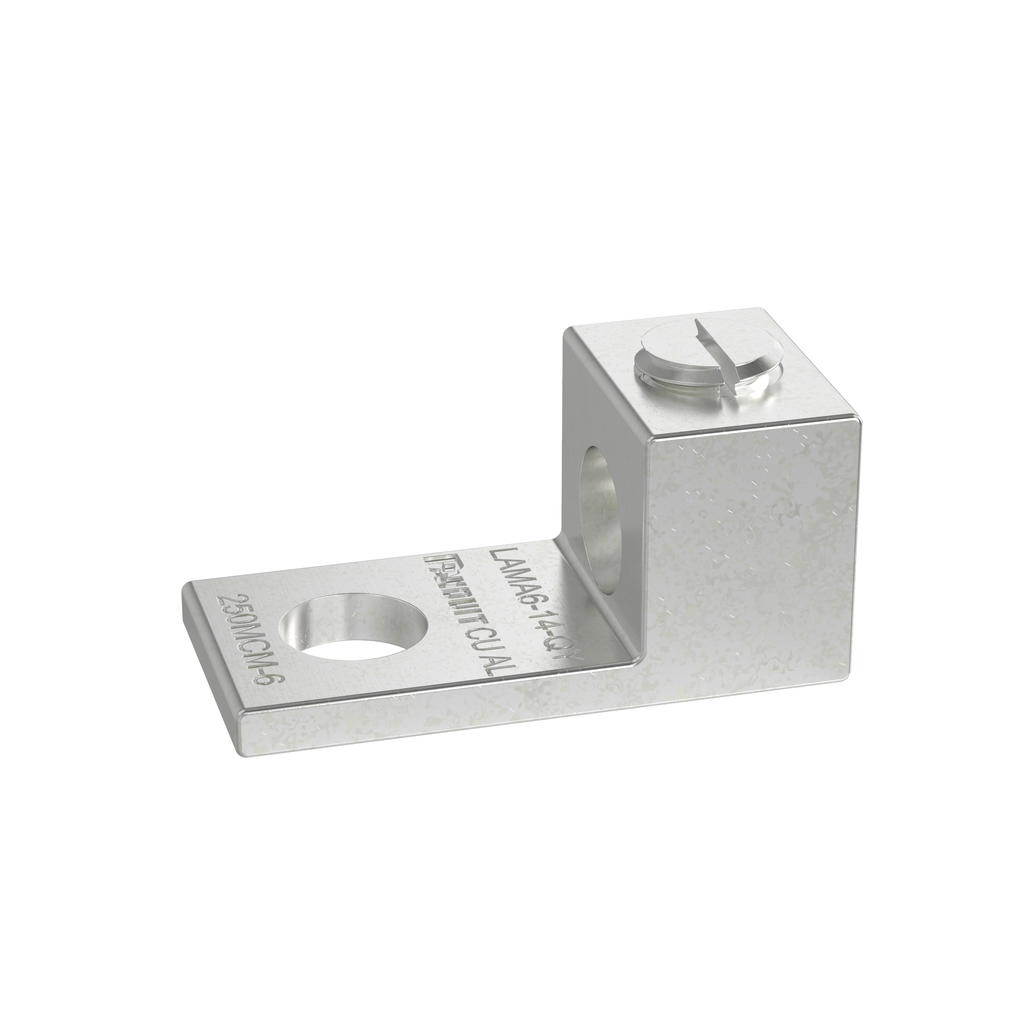

Image thumbnail 2

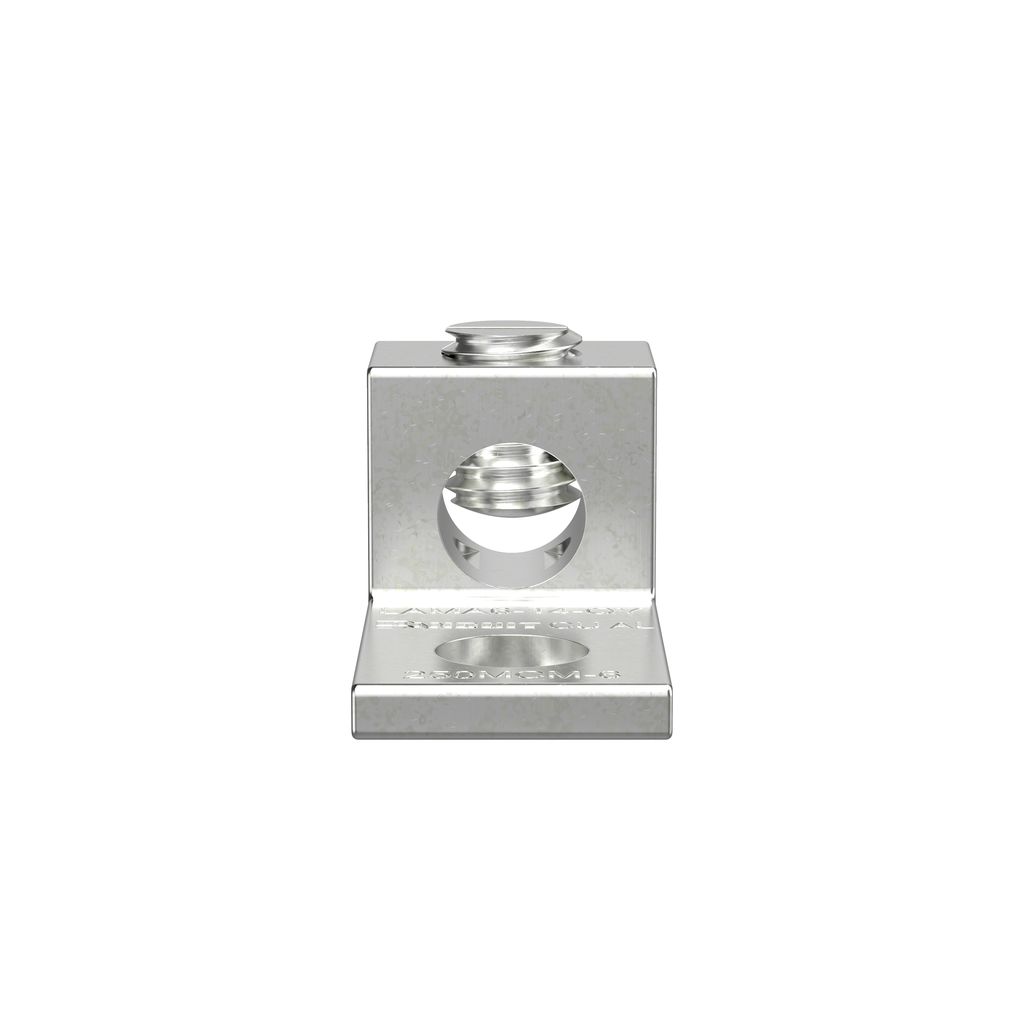

Image thumbnail 3
Email

Panduit LAMA6-14-QY 1-Hole 1 Barrel Aluminum Mechanical Lug

Manufacturer: Panduit Corp | Catalog # LAMA6-14-QY | Cooper Electric Part # 305956
$484.41 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Engineering Drawing Product Catalog Page Product Spec Sheet Installation / Instruction Manual
The LAMA6-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Technical Information

Barrel Length
0.37 in
Base Material
Aluminum
Bolt Size
6.35 mm
Conductor Size
14-6 AWG
Conductor Type
Aluminum and Copper
Material
Aluminum
Number of Conductors
1
Stud Hole Size
1/4 in
Temperature Rating
90 degrees C
Tongue Thickness
0.09 in
Tongue Type
Straight
Tongue Width
0.5 in
Type
Single Barrel, Non-Insulated
Voltage
600 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983596195
Color
Metallic
Finish
Tin Plated
GTiN
00074983596195
Product Type
Power Connectors
Product UPC
07498359619

Dimensions

Height
1/2 Inch
Length
1.06 Inch
Overall Length
1.06 in
Width
0.5 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CA Prop65 Warning
No
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
